RCF CMR 50T Two-Way In-Ceiling Speaker

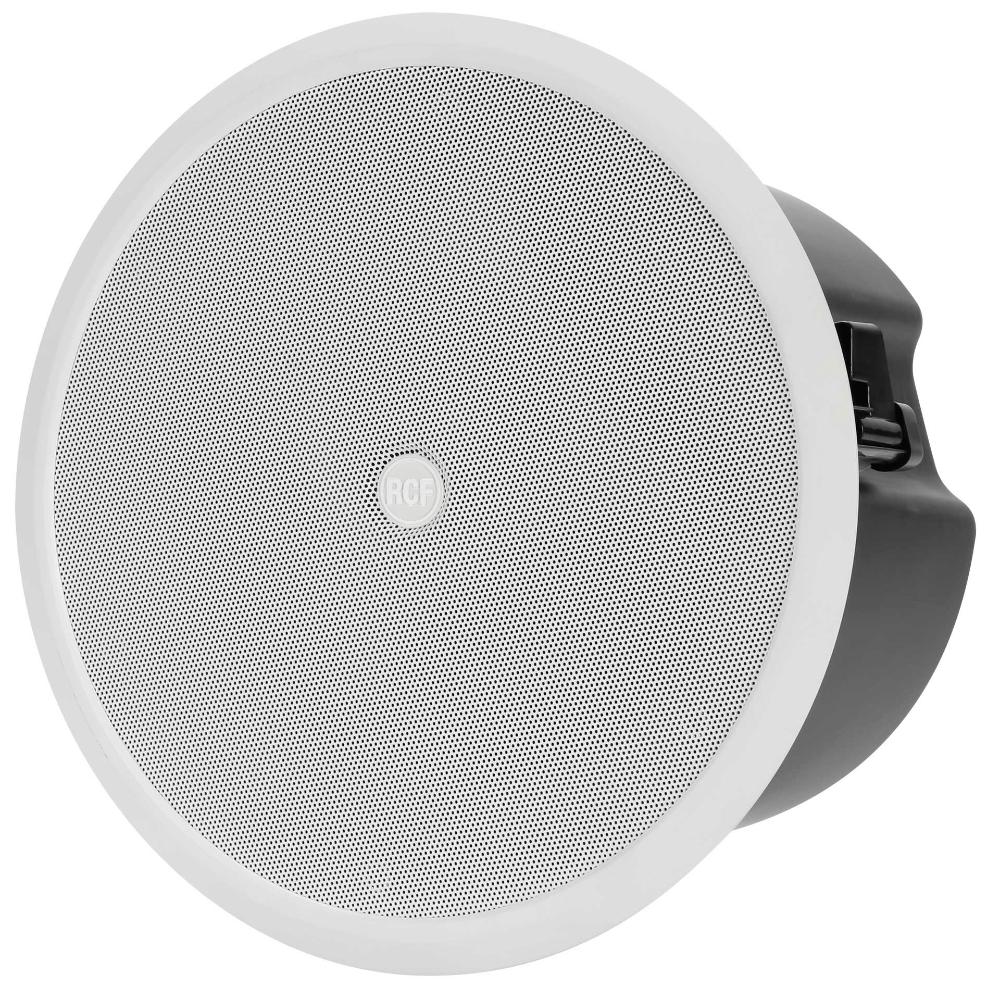

The RCF CMR 50T is a two-way in-ceiling speaker for background music and paging across a wide range of installed jobs. A 5-inch woofer and a 1-inch neodymium dome tweeter give it a smooth 80 Hz to 20 kHz range and a 130-degree constant-directivity pattern that spreads sound evenly across a room, with peak output reaching 110 dB.

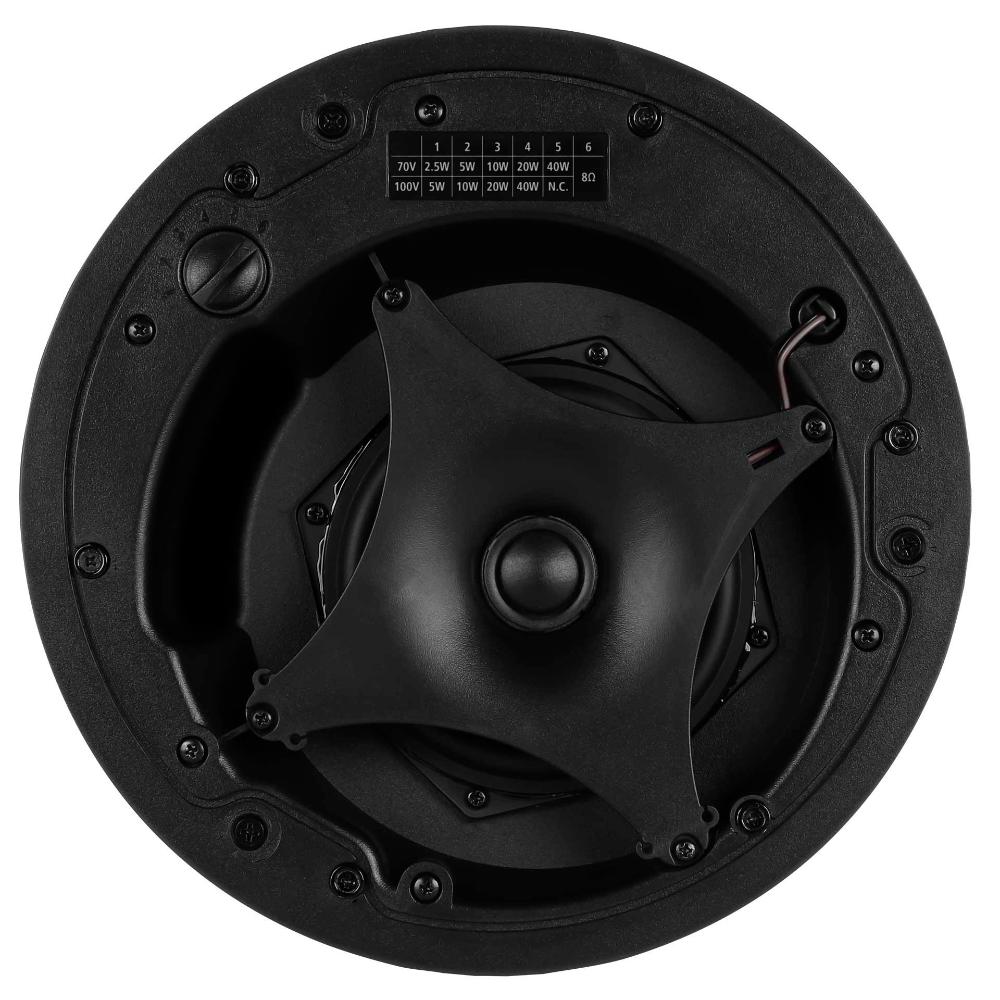

A magnetic front grille pops off for quick access to the power selector, and the built-in line transformer offers 40W of full power on 70V and 100V distribution lines with five selectable tap settings. A four-pole Euroblock handles both the audio input and a parallel link to the next speaker, and the self-extinguishing plastic cabinet with metal back-can meets install safety needs.

ConfigurationTwo-way in-ceiling speaker
Power Handling40W RMS
Max SPL110 dB
Frequency Range80-20,000 Hz
Coverage130° conical, constant directivity
Woofer5\" high-power
Tweeter1\" neodymium dome
Line Transformer70V/100V, five selectable power taps
Connector4-pole Euroblock (input + parallel link)
