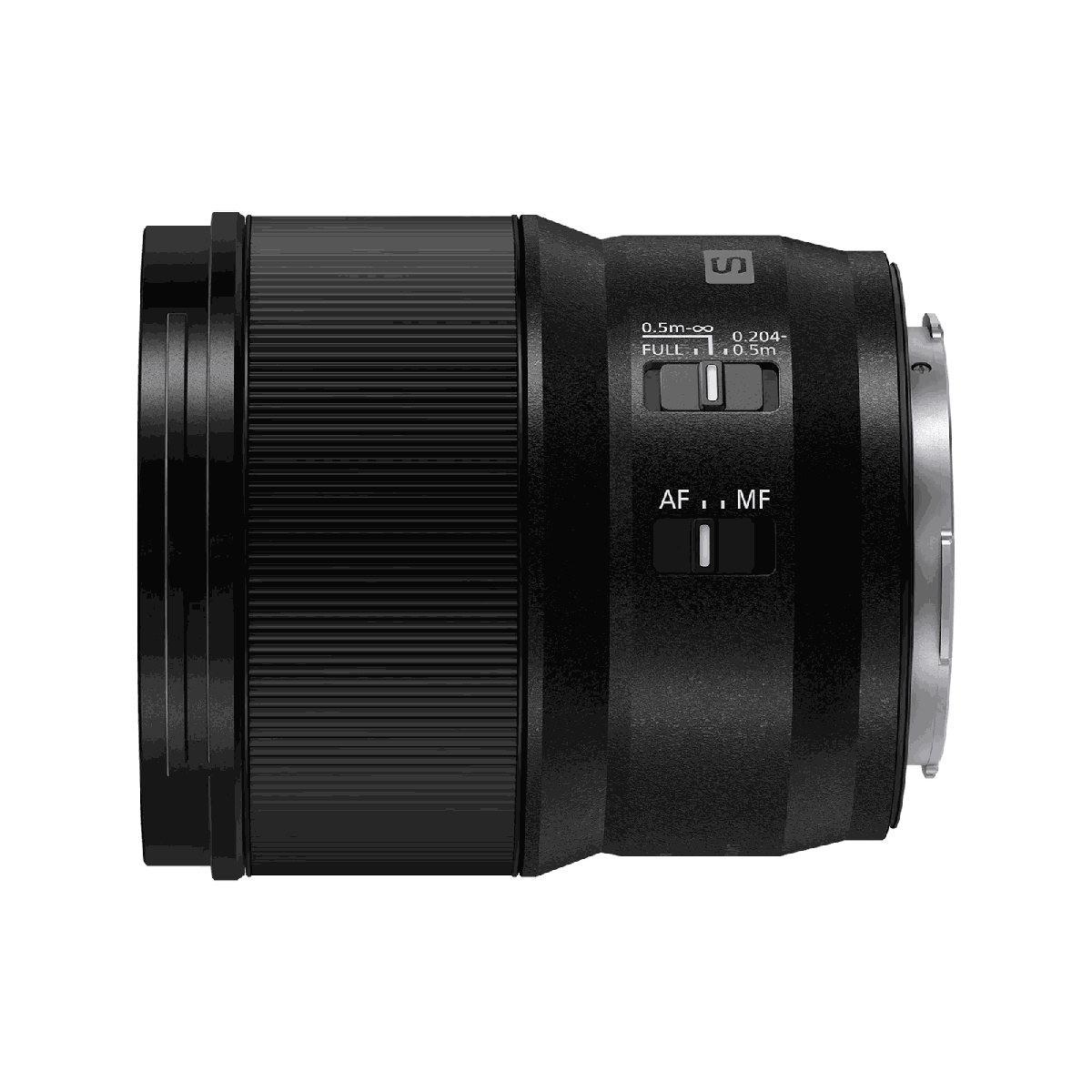

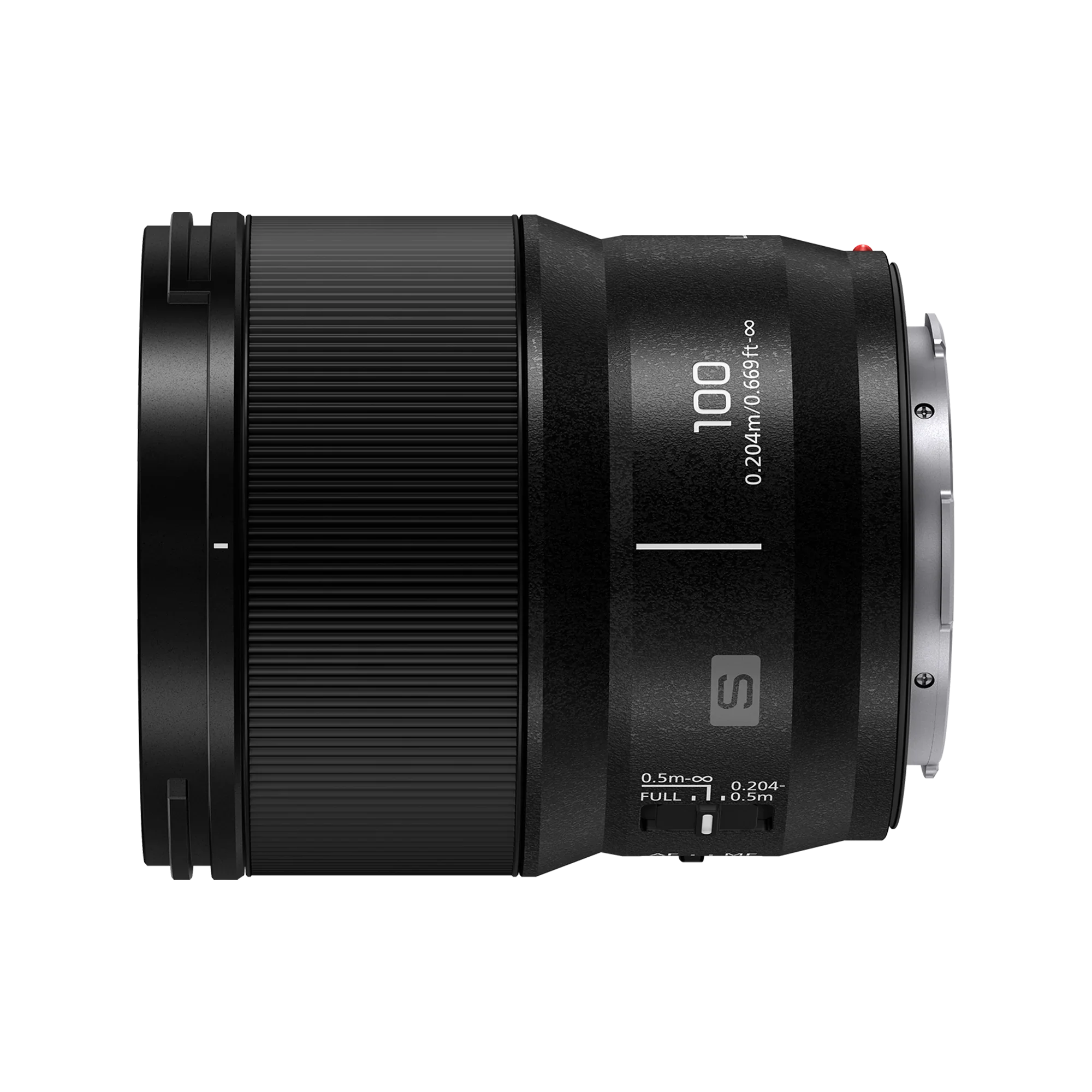

Panasonic Lumix S 100mm F2.8 Macro L-Mount Lens

The Lumix S 100mm F2.8 Macro is 1:1 macro and short-telephoto detail work on a full-frame L-Mount body. Built to the L-Mount standard shared by Panasonic, Leica and Sigma, it uses 13 elements in 11 groups (3 aspherical, 2 UED, 1 ED) and covers 24 degrees at f=100mm.

Maximum aperture is F2.8 with a minimum of F22, and the iris carries 9 blades in a circular pattern. It focuses to 0.204m to infinity (from the imaging plane) for a maximum magnification of 1.0x, takes 67mm filters, and measures 73.6mm x approx. 82.0mm at approx. 298g (excluding hood and caps). The barrel is dust and splash resistant.

ModelS-E100
MountL-Mount (Leica Camera AG standard)
Focal Lengthf=100mm
Maximum ApertureF2.8
Minimum ApertureF22
Lens Construction13 elements in 11 groups (3 aspherical, 2 UED, 1 ED)
Diaphragm9 blades, circular aperture diaphragm
Minimum Focus Distance0.204m to infinity (from the imaging plane)
Maximum Magnification1.0x
Filter Size67mm
Angle of View24 degrees at f=100mm
Dust and Splash ResistantYes
Dimensions73.6mm x approx. 82.0mm
WeightApprox. 298g (excluding hood and caps)
