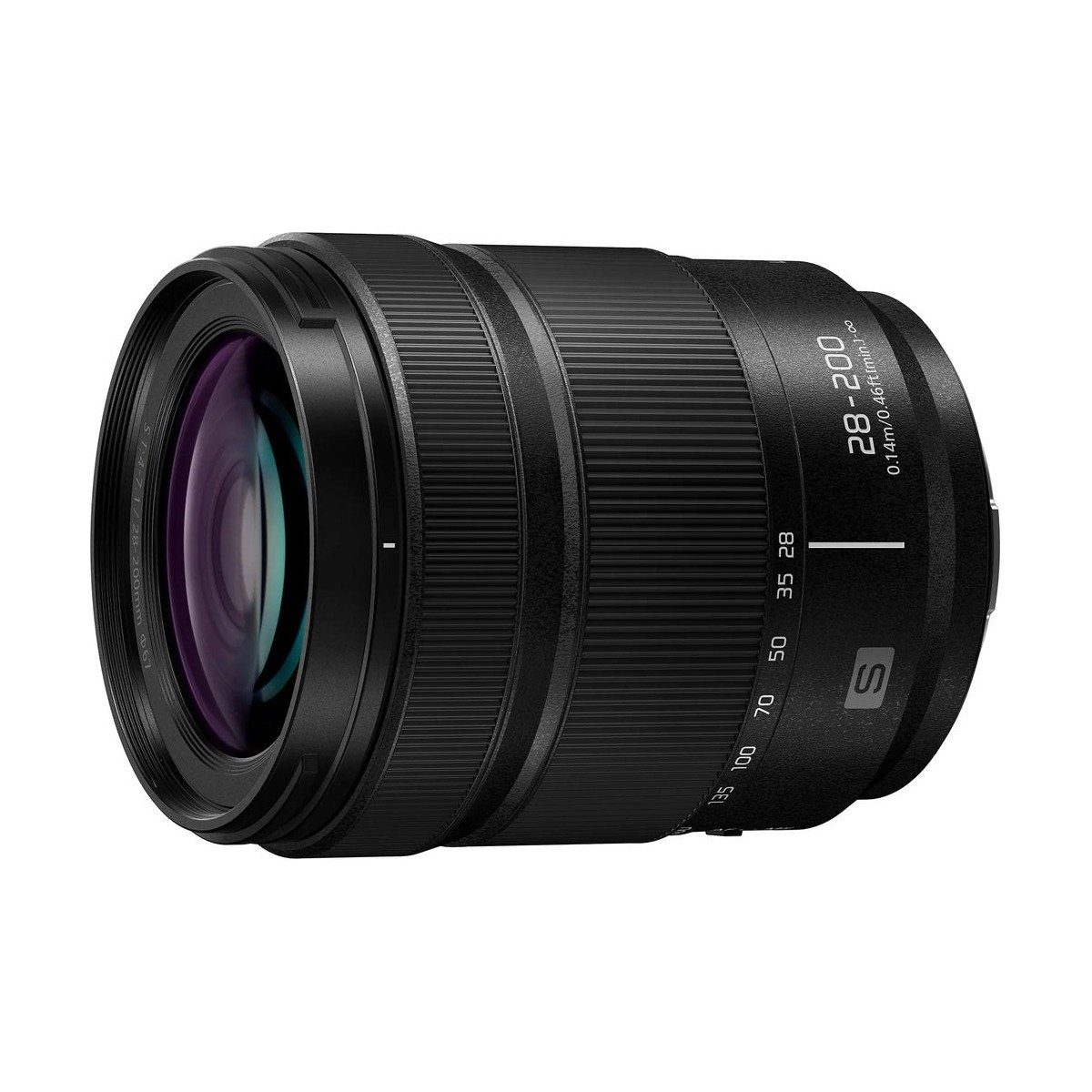

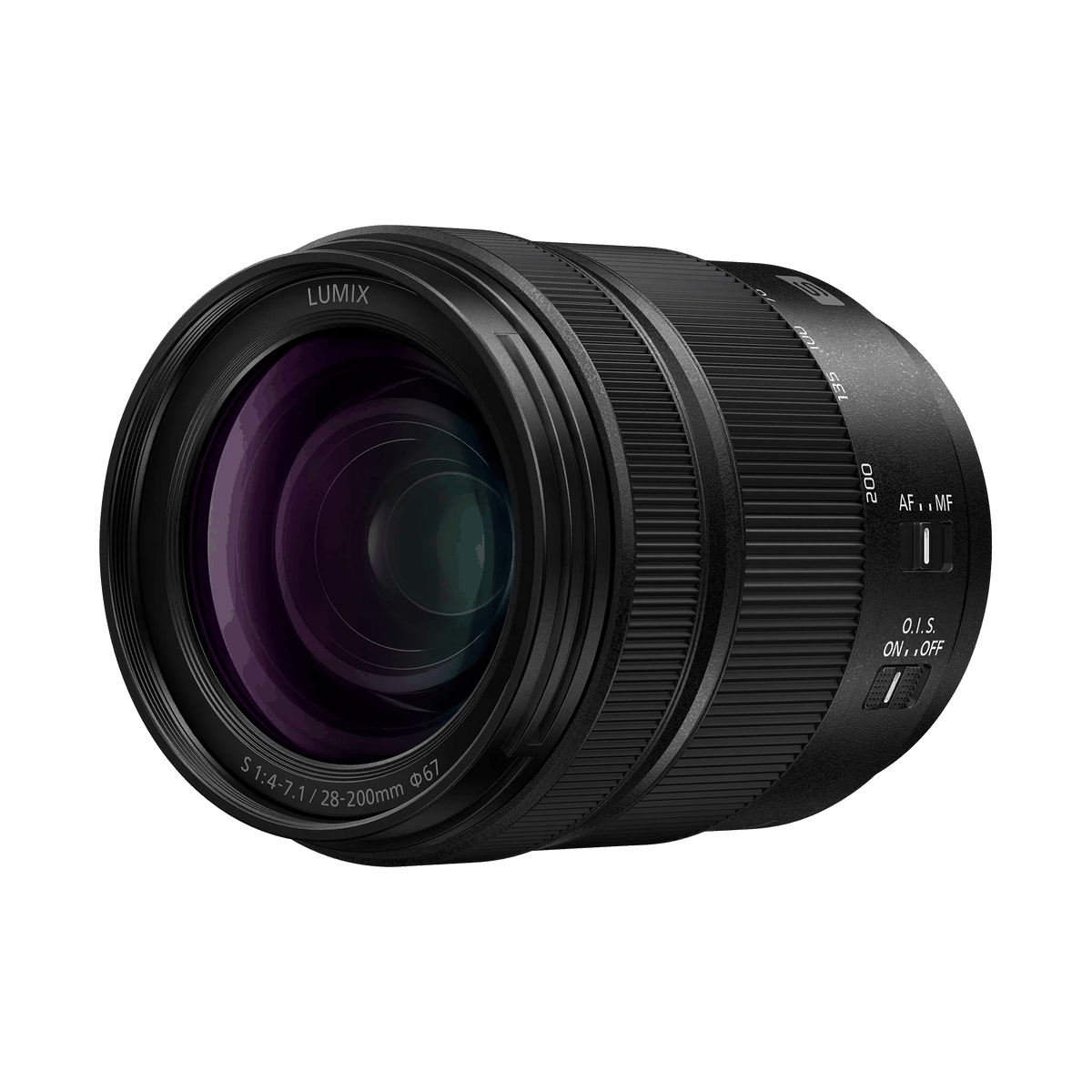

Panasonic Lumix S 28-200mm F4-7.1 Macro O.I.S. L-Mount Lens
The Lumix S 28-200mm F4-7.1 Macro O.I.S. is a single travel zoom that also focuses close enough for half-life-size macro. Built to the L-Mount standard shared by Panasonic, Leica and Sigma, it uses 17 elements in 13 groups (1 aspherical, 4 ED, 1 UHR) and covers 75 degrees at f=28mm to 12 degrees at f=200mm.
Maximum aperture is F4 - 7.1 with a minimum of F32 - 45, and the iris carries 9 blades in a circular pattern. It focuses to 0.14m (wide) / 0.65m (tele) for a maximum magnification of 0.50x at the wide end, takes 67mm filters, and measures 77.3mm max diameter x approx. 93.4mm length at approx. 413g (excluding hood and caps). The barrel is dust and splash resistant. Optical image stabilisation is built in and works with Dual I.S.
| Model | S-R28200 |
|---|---|
| Mount | L-Mount (Leica Camera AG standard) |
| Focal Length | f=28-200mm |
| Maximum Aperture | F4 - 7.1 |
| Minimum Aperture | F32 - 45 |
| Lens Construction | 17 elements in 13 groups (1 aspherical, 4 ED, 1 UHR) |
| Diaphragm | 9 blades, circular aperture diaphragm |
| Minimum Focus Distance | 0.14m (wide) / 0.65m (tele) |
| Maximum Magnification | 0.50x at the wide end |
| Filter Size | 67mm |
| Angle of View | 75 degrees at f=28mm to 12 degrees at f=200mm |
| Dust and Splash Resistant | Yes |
| Optical Image Stabilizer | Yes, with Dual I.S. support |
| Dimensions | 77.3mm max diameter x approx. 93.4mm length |
| Weight | Approx. 413g (excluding hood and caps) |
