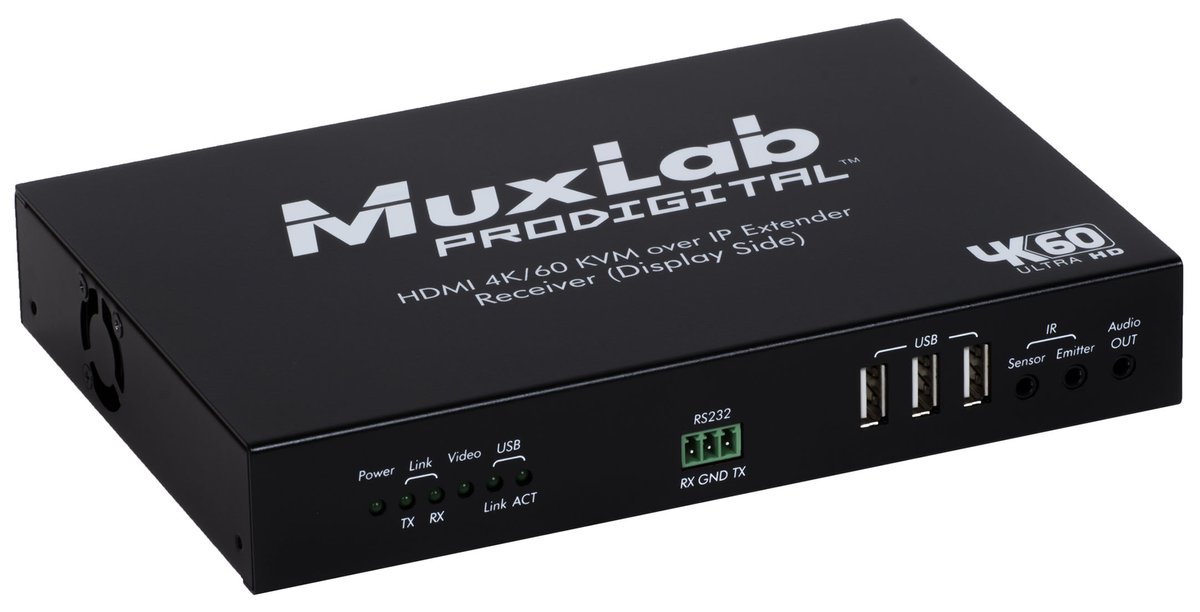

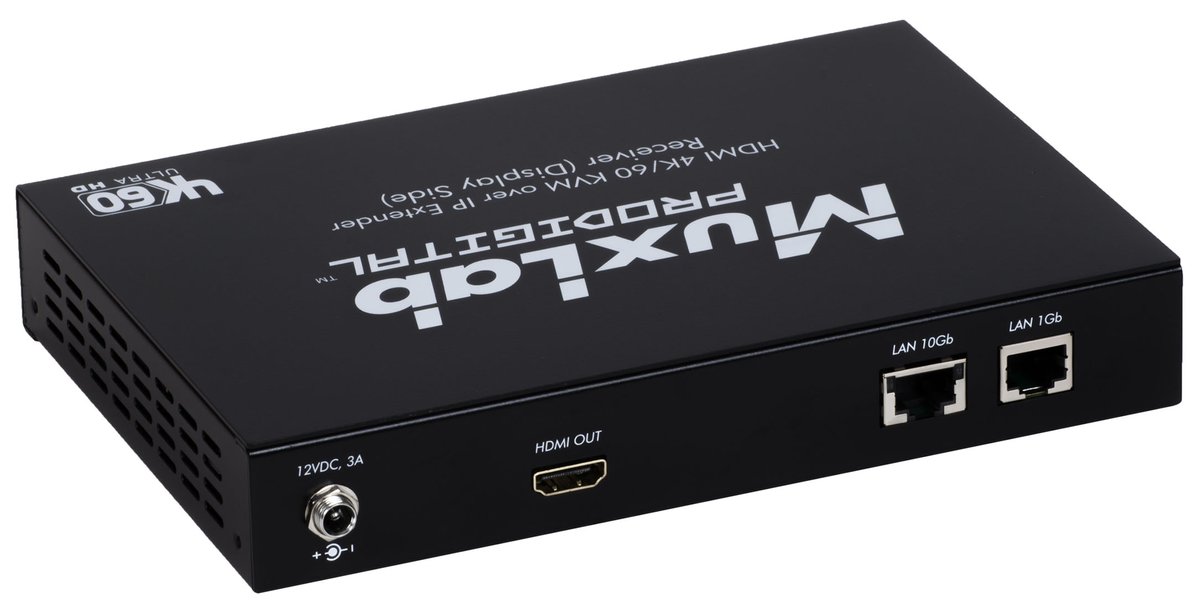

MuxLab 500760 HDMI 4K/60 KVM Over IP Receiver, UTP

The 500760 pair is built on SDVoE technology and connects HDMI servers and workstations at up to 4K at 60Hz to one or more operator positions, where a remote monitor, keyboard, and mouse manage any machine on the network. It also supports smart whiteboard applications.

Video is uncompressed at 4K/60 4:2:0 with zero latency, and uses visually lossless light compression at 4:4:4. Transmission reaches 330ft (100m) over UTP. Transmitter and receiver are ordered separately so a control room can be built with any mix of sources and operator desks.

Standard	HDMI 2.0
Signal Format	HDMI 2.0 and HDCP 2.2
Bandwidth	594MHz
Output	12DC @ 3A Includes appropriate AC multi-blades per region (US, UK and Euro)
Latency	Zero latency (undetectable in human terms)
Compression	Uncompressed up to 4K/60 (4:2:0), and light compression for 4K/60 (4:4:4) only
Cable	One (1) Cat 5e/6 or better twisted pair cables required
Power Consumption	Transmitter: 16 Watts Receiver: 16 Watts
