Magewell Pro Convert IP to USB IP Decoder (62300)

Pro Convert IP to USB is a USB Type-C capture device for NDI, NDI HX and streaming sources. Networking: Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T.

Setup and monitoring: Register with Control Hub; Remote control via WebUI and Control Hub. It measures 3.8622 in (L) x 2.2354 in (W) x 0.7087 in (H) (98.1 mm x 56.78 mm x 18 mm). Power: 5V max current: ~ 1A; Max power consumption: ~ 3.8W.

Part Number	62300

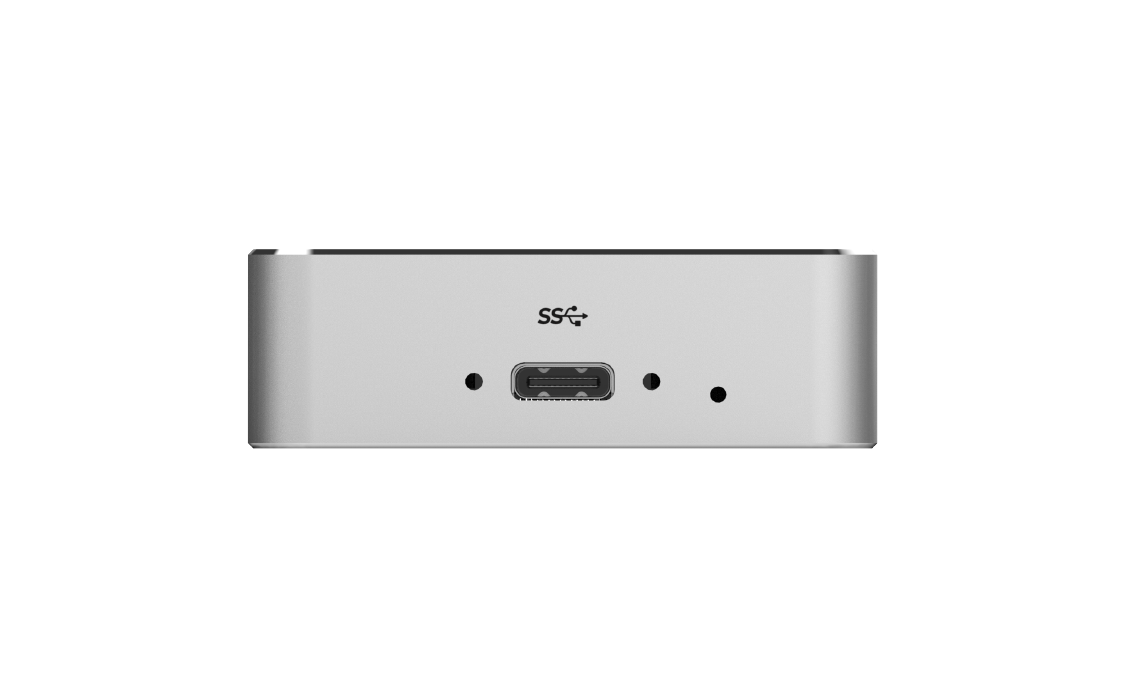

Host Interface	USB 3.0 (5 Gbps) Type-C 5V/1A power supply; USB NCM
Output Features	Max output UVC: 1080p60 YUY2/NV12. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.): 1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 60/59.94/50/48/40/30/29.97/25/24/20/15

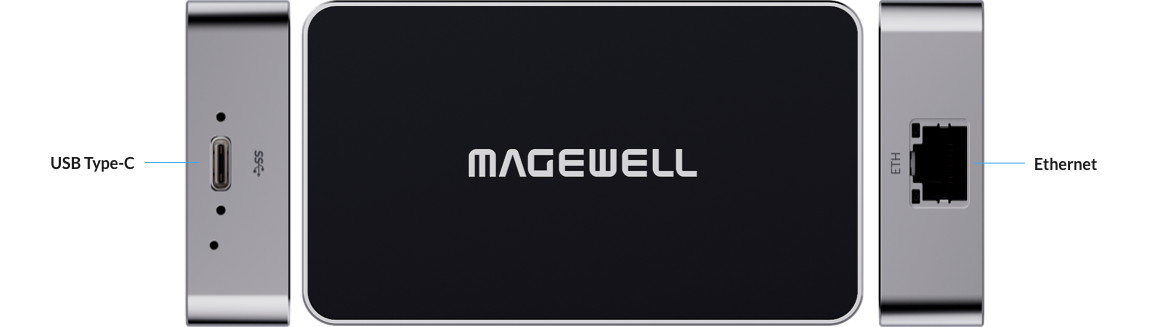

Network Connections	Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
Configuration Management	Register with Control Hub; Remote control via WebUI and Control Hub
Form Factor	3.8622 in (L) x 2.2354 in (W) x 0.7087 in (H) (98.1 mm x 56.78 mm x 18 mm)
Power	5V max current: ~ 1A; Max power consumption: ~ 3.8W
Operating Range	Operating temperature: 0 to 50 deg C; Storage temperature: -20 to 70 deg C; Relative humidity: 5% to 90% non-condensing
