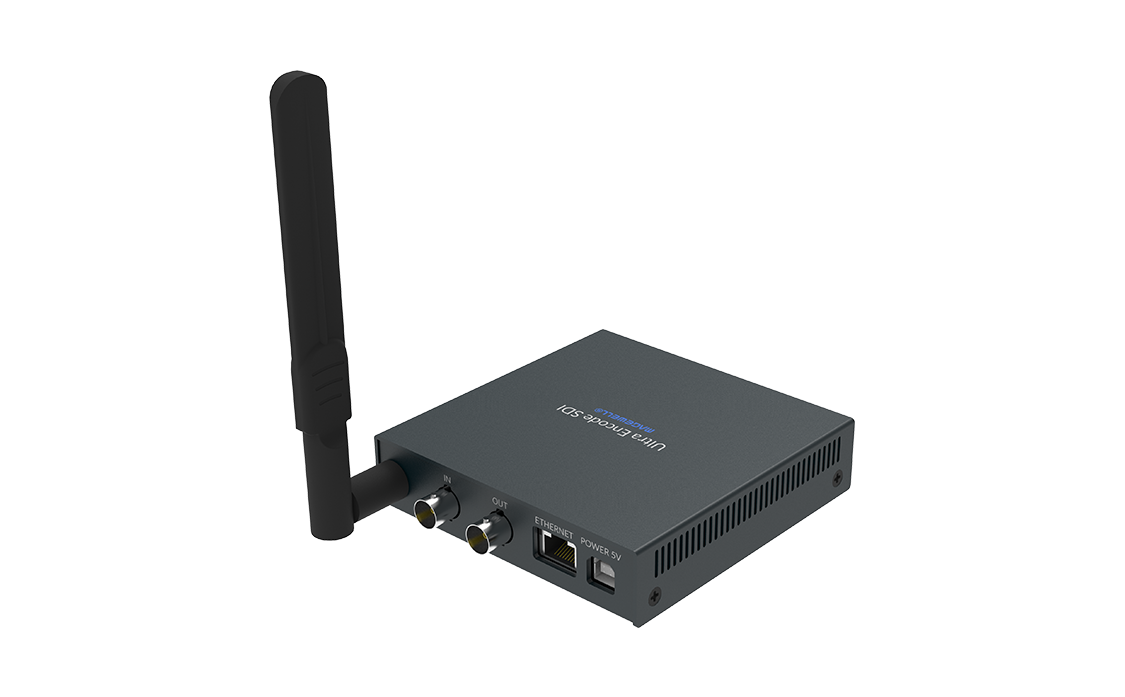

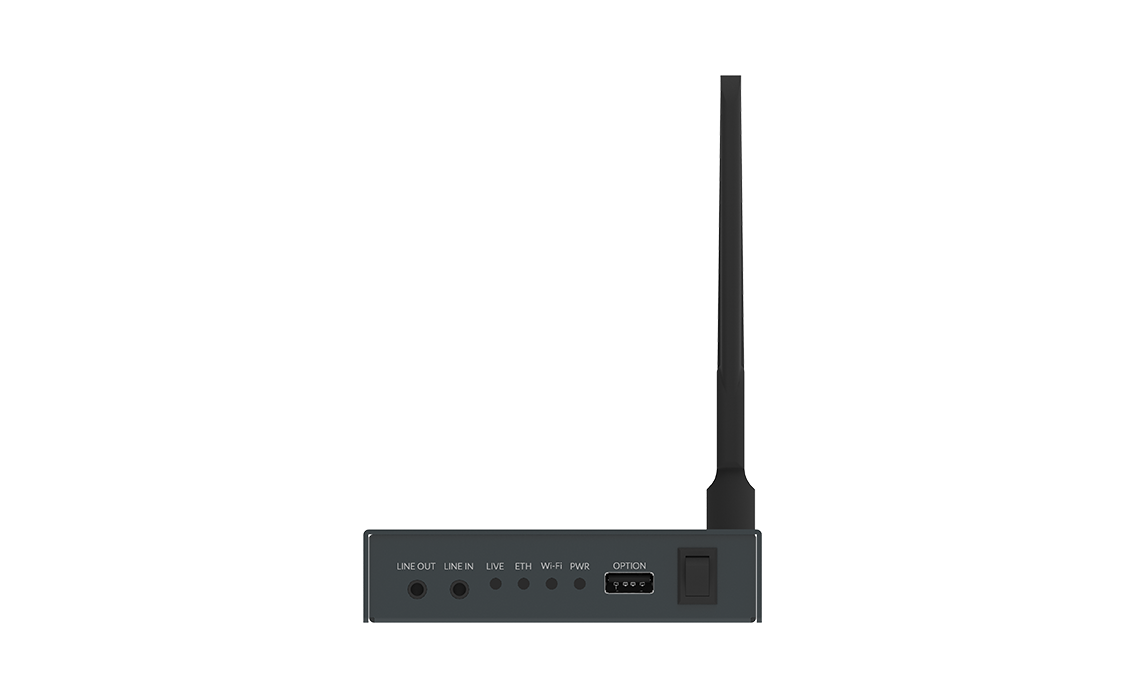

Name: Magewell Ultra Encode SDI Streaming Encoder (53120)
Brand: Magewell
SKU: 53120
Price: 555.00 USD
Availability: InStock

Ultra Encode SDI is a flexible and Affordable Universal Encoder. Connections: 2 x SD/HD/3G BNC ports 1 x Input; 1 x Loop-through; 1 x 3.5mm LINE IN; 1 x 3.5mm LINE OUT; 1 x USB Type-A. Signal handling: Video Bitrate: 16Mbps; Dual-stream encoding: main stream and sub stream; Main stream Resolution/frame rate: 2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/15/10/5.

Networking: Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T; Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported; 4G/5G USB modem (not supplied); USB Net. Setup and monitoring: Access Web UI via PC and smartphone; View real-time device status; Preview encoded video; Set input sources; Customize encoding parameters. It measures 106.6mm x 106.2mm x 25mm. Power: DC 5V/3A; Max power consumption. In the box: 1 x 5V Power Adapter; 1 x USB Type A to Type B cable; 1 x Wi-Fi Antenna; 1 x T-bracket.

Part Number	53120
Input/Output Ports	2 x SD/HD/3G BNC ports 1 x Input; 1 x Loop-through; 1 x 3.5mm LINE IN; 1 x 3.5mm LINE OUT; 1 x USB Type-A
Encode	Video Bitrate: 16Mbps; Dual-stream encoding: main stream and sub stream; Main stream Resolution/frame rate: 2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/15/10/5
Network Connections	Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T; Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported; 4G/5G USB modem (not supplied); USB Net
Control	Access Web UI via PC and smartphone; View real-time device status; Preview encoded video; Set input sources; Customize encoding parameters
Form Factor	106.6mm x 106.2mm x 25mm
Power	DC 5V/3A; Max power consumption
Operating Range	Operating temperature: 0 to 40 deg C; Storage temperature: -20 to 70 deg C; Relative humidity: 5% to 90% non-condensing
