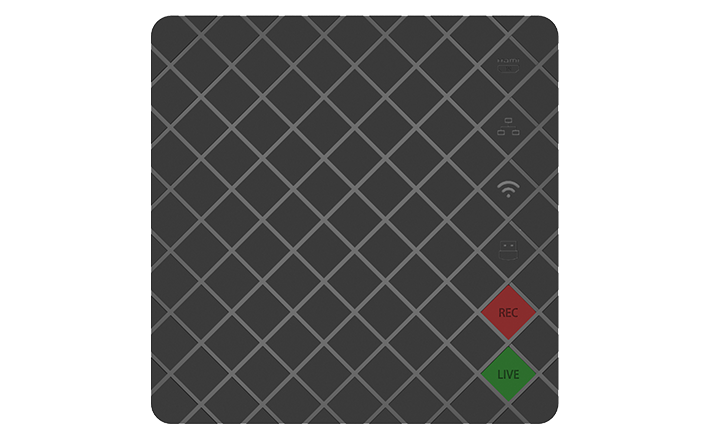

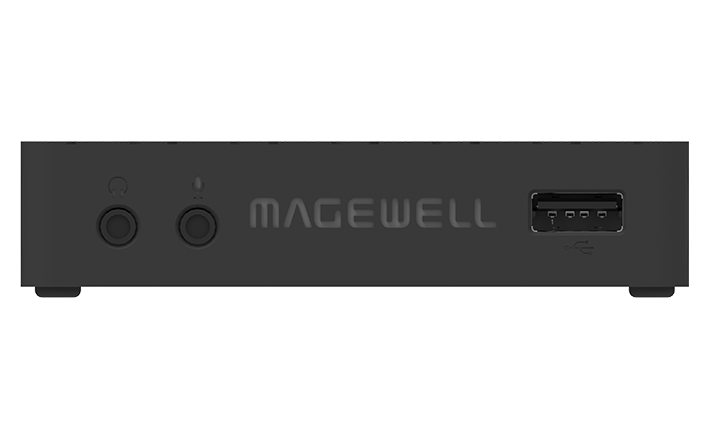

Magewell Ultra Stream HDMI Streaming Encoder (53010)

Ultra Stream HDMI is a dedicated HDMI streaming encoder with loop-through. Connections: Max HDMI input and loop-through signals: 4096x2160 4:2:0 60fps; 4096x2160 4:4:4/4:2:2 30fps; Custom EDID. Signal handling: Dual stream encoding: main stream and sub stream; Max bitrate: Main Stream - 8Mbps; Sub Stream - 2Mbps.

Setup and monitoring: Register with 2 Control Hub platforms; Remote control via Application, WebUI and Control Hub. It measures 94.20mm x 94.20mm x 22.30mm. Power: DC 5V/2A; Max power consumption: ~9.6 W. In the box: AC adapter; HDMI cable.

Part Number	53010
Input Features	Max HDMI input and loop-through signals: 4096x2160 4:2:0 60fps; 4096x2160 4:4:4/4:2:2 30fps; Custom EDID; Supported HDMI inputs include: 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
Encoding Features	Dual stream encoding: main stream and sub stream; Max bitrate: Main Stream - 8Mbps; Sub Stream - 2Mbps
Recording Features	Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously; To a USB Flash Drive support auto-recording, normal recording; recording as MP4 or MOV files
Configuration Management	Register with 2 Control Hub platforms; Remote control via Application, WebUI and Control Hub
Form Factor	94.20mm x 94.20mm x 22.30mm
Power	DC 5V/2A; Max power consumption: ~9.6 W
Operating Range	Operating temperature: 0 to 40 deg C; Storage temperature: -20 to 70 deg C; Relative humidity: 5% to 90% non-condensing
