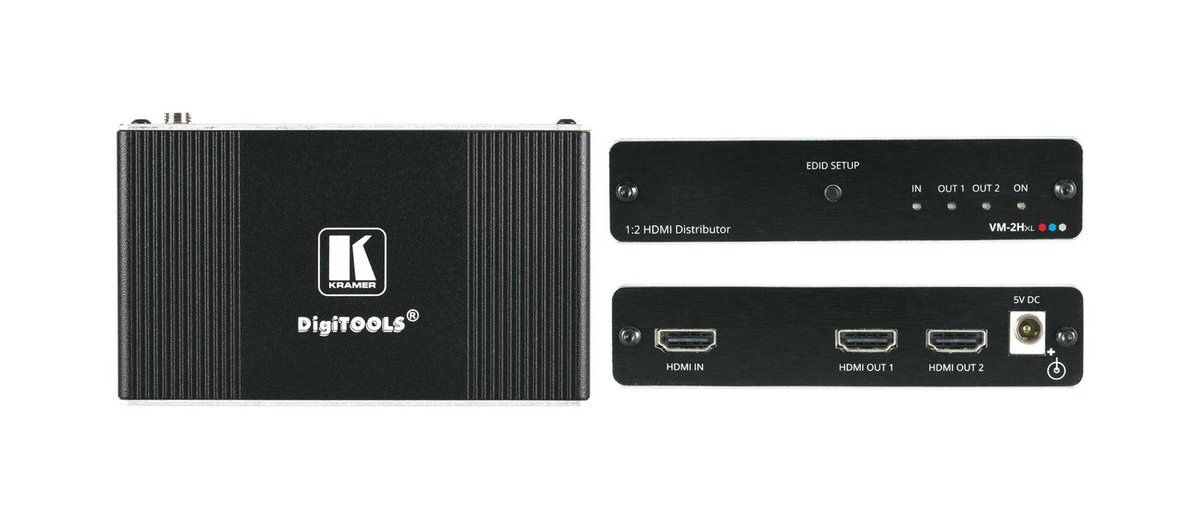

Kramer VM-2Hxl 1:2 HDMI Distribution Amplifier

The VM-2Hxl is a distribution amplifier for HDMI signals. The unit reclocks and equalizes the signal and distributes it to two identical outputs. Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel). HDTV Compatible. HDCP Compliant. HDMI Support - Deep Color, x.v.Color, Lip Sync, CEC. 3D Pass-Through. EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems. Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal integrity to travel longer distances. Active Output LED. Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.

INPUT	1 HDMI connector
OUTPUTS	2 HDMI connectors
MAX. DATA RATE	6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD	Supports HDMI and HDCP
CONTROLS	EDID SETUP button, input select button
INDICATOR LEDs	IN 1, IN 2, OUT 1, OUT 2, and ON LEDs
POWER CONSUMPTION	5V DC, 910mA
INCLUDED ACCESSORIES	Power supply, bracket installation kit
