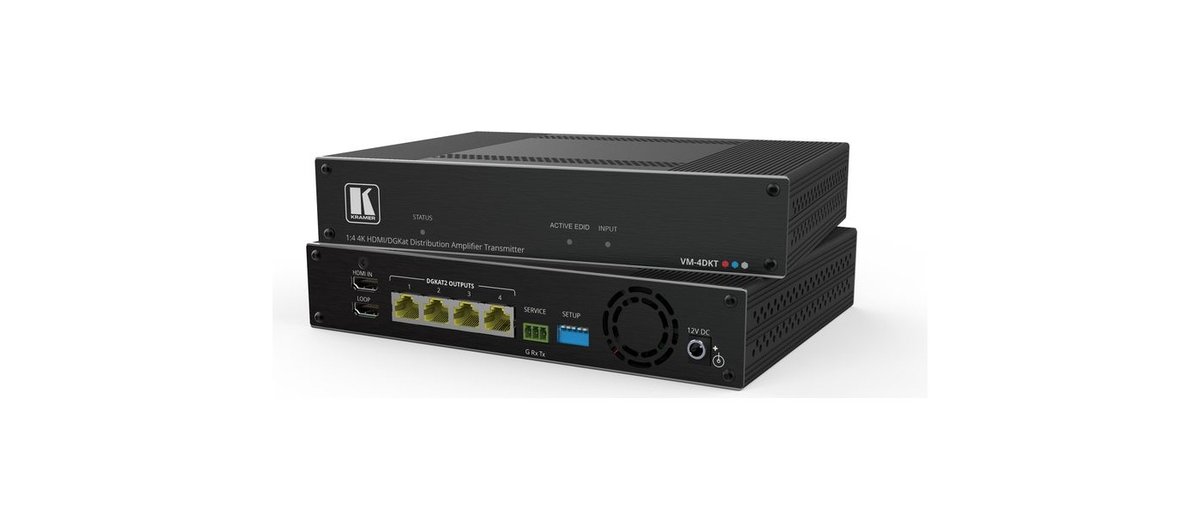

Kramer VM-4DKT 1:4 4K60 4:4:4 HDMI to Long-Reach DGKat 2.0 DA
VM-4DKT is a high-quality, long-reach, 4K@60Hz (4:4:4) DGKat extender distributor that converts HDMI input signals into the transmitted DGKat 2.0 signal and distributes it to four identical outputs, which are connected to compatible DGKat receivers. High Performance Extension - Professional DGKat 2.0 distributor transmitter for providing long-reach signals and power over twisted pair copper infrastructures. VM-4DKT employs low-level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near-zero latency. HDMI Looping - Output mirroring allows presented content monitoring and its cascading to other connected components within the composed solution. HDMI Support - HDR10, HDCP 2.3, x, Dolby TrueHD, DTS-HD, 2K, and 4K as specified in HDMI 2.0. Multi-channel Audio Extension - Up to 8 channels of digital stereo uncompressed signals for supporting studio-grade surround sound. Cost-effective Deployment - Flexible use of default or connected display EDID, with locking option, to ensure proper presentation of source HDMI content on remotely connected displays. Easy Installation - Single twisted-pair cable for signal and power distribution. Half 19" size enables flexible and convenient mounting under table or 2 side-by-side units in a 1U rack space.

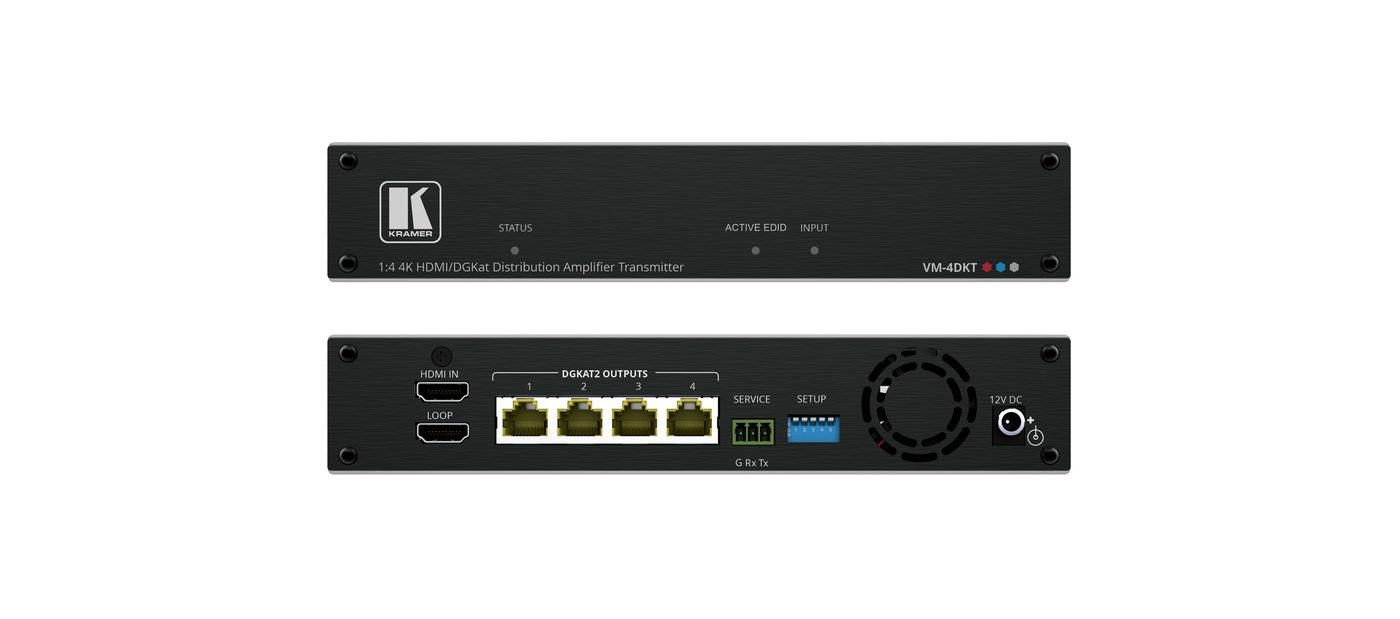

| 1 HDMI | On an HDMI female connector |
|---|---|
| 4 DGKat | On RJ-45 female connectors for extension lines |
| 1 HDMI Loop | On an HDMI female connector |
| 1 RS-232 | On a 3-pin terminal block connector |
| Transmitted Data Bandwidth | Up to 18Gbps (6Gbps per graphic channel) |
| Max Resolution at High Compression Level | 3840x2160@60Hz (4:4:4) 24bpp |
| Max Resolution at Standard Compression Level | 4096x2160@60Hz (4:4:4) 24bpp |
| Standards Compliance | HDR10, HDCP 2.3 |
| Using Shielded UNIKAT Cables | Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp) |
| Using Plenum HDKat Cables | Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp) |
| Signal Compression | Standard or high compression level applied to >1080p signals |
| Compliance | DGKat 2.0 |
| Source | 12V DC, 5A |
| Consumption | 2.8A |
| Type | Aluminum |
| Cooling | Fan ventilation |
| Size | 1/2 19" 1U |
| Operating Temperature | 0 deg to +40C (32 deg to 104F) |
| Storage Temperature | -40 deg to +70C (-40 deg to 158F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Included Accessories | Power adapter, rubber feet |
