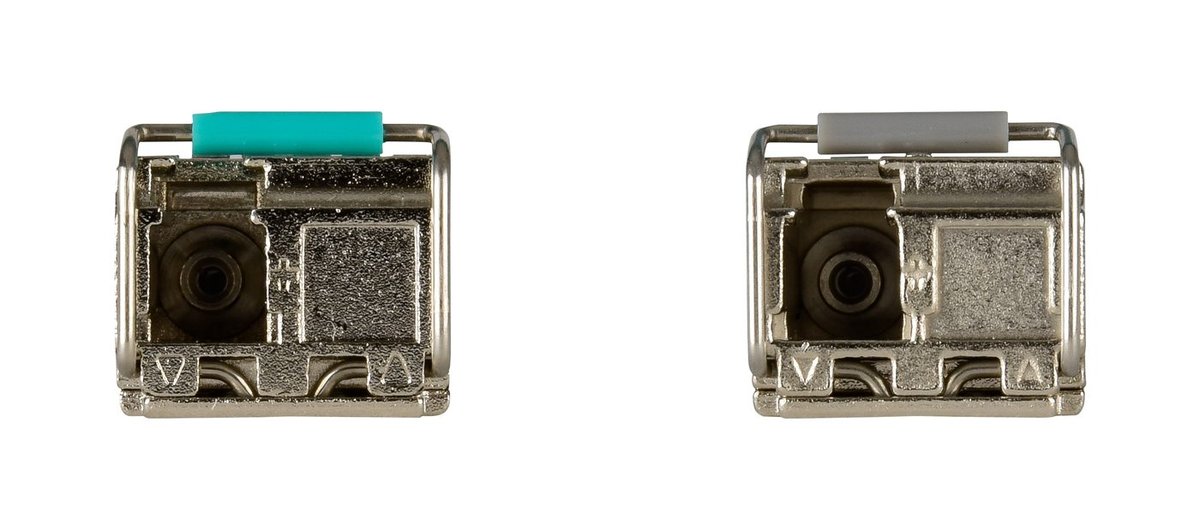

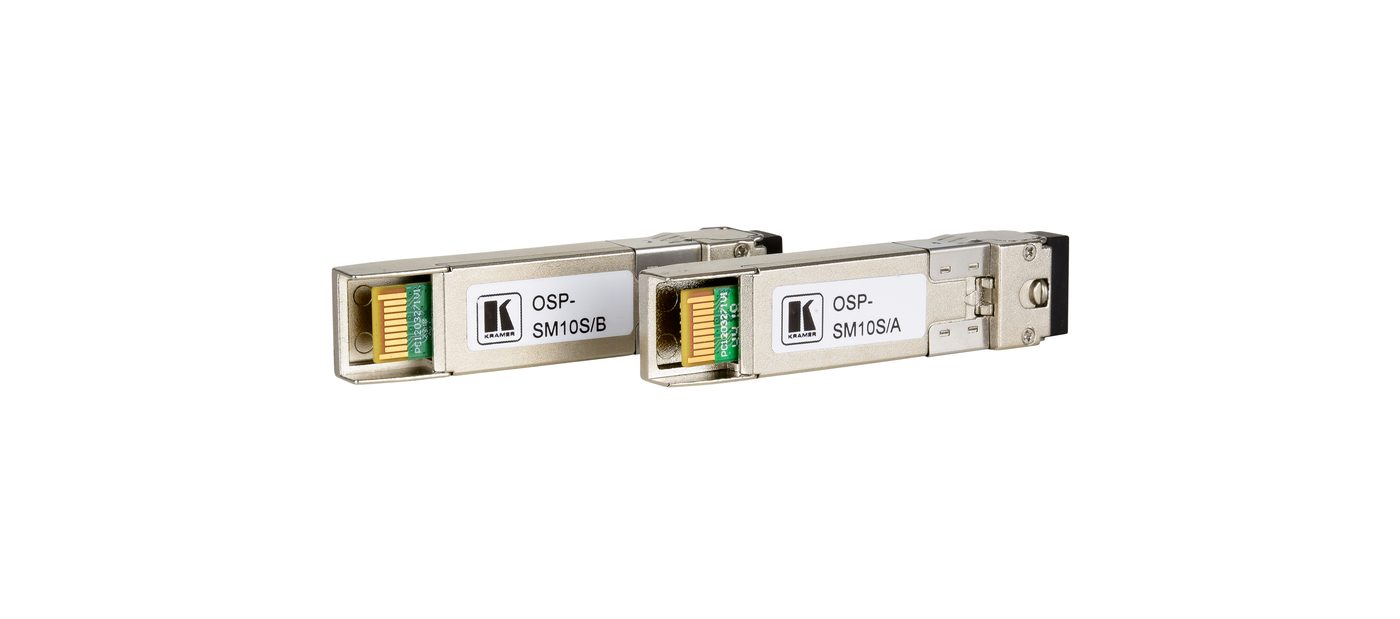

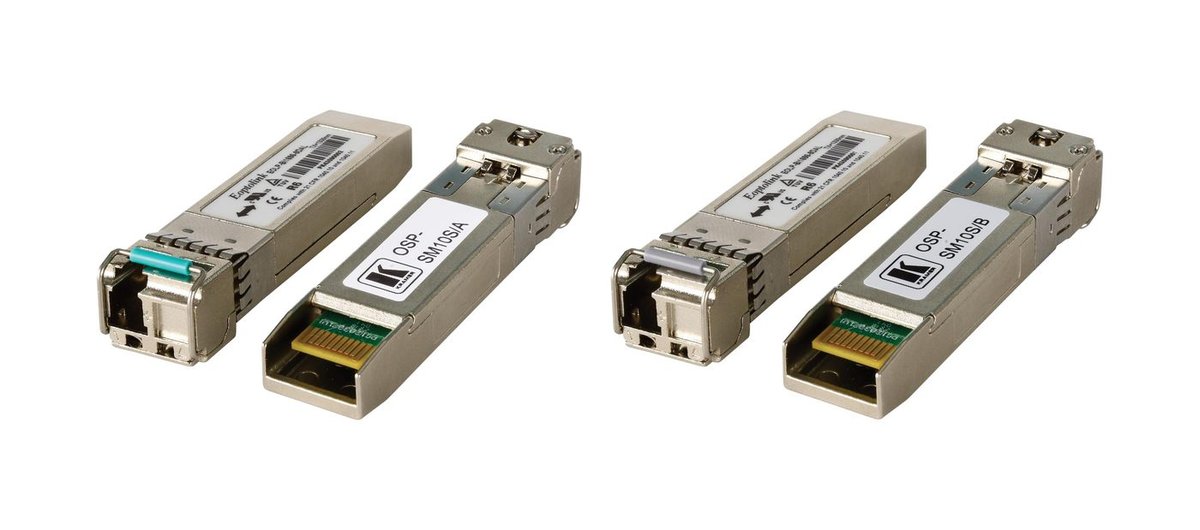

Kramer OSP-SM10S Optical SFP+ Transceiver Pair over 10G 1270/1330nm Simplex SM Fiber

The Kramer OSP-SM10S is a optical SFP+ Transceiver Pair over 10G 1270/1330nm Simplex SM Fiber, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: Optical Line: Single-mode G.652D compliant OFNR fiber; Nominal Peak Wavelength: Module A: 1270 transmitter /1330nm receiver; Module B: 1330 transmitter /1270nm receiver; Max. Data Rate: 10.2Gbps; Transmitter Type: DFB; Optical Typical Transmission Power: -5dBm; Optical Typical Maximum Receiver Sensitivity: -14dBm; Optical Typical Maximum Loss Budget: 9dB (general); 1 Optical: On single-strand LC-connected single-mode fiber; Note: Do not use with LC(APC) cable connectors (ports); Max. Reach: 20Km (12.4 miles) reach over OS1 SM fiber (extension line); Quality: IEEE 802.3ae, SFF-8431, SFF-8472; Laser Safety: Laser Class I; Safety: FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950-2:2007, RoHS6, EMC EN 55022 and EN 55024, IEC 62368-1 and IEC 60825-1 and - 2 (regulatory compliance (standards compliance)). Also: Consumption: 1W (power); Operating Temperature: 0° to 70°C; Storage Temperature: -40° to 85°C; Humidity: 5% to 95% RH (environmental conditions).
