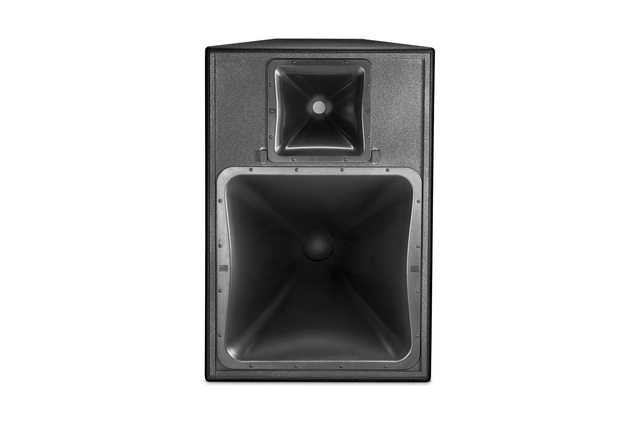

JBL PD6212/43 12-inch 2-Way Horn-Loaded Speaker with 40 degrees x 30 degrees Horn

The PD6212/43 is a 12-inch 2-Way horn-loaded speaker with 40 degrees x 30 degrees horn, from the Precision Directivity install range. The low-frequency section uses M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil. High frequencies come from 2453H, 38 mm (1.5 in) exit compression driver with 100 mm (4 in) voice coil. Nominal coverage is /43: 40 degrees x 30 degrees /64: 60 degrees x 40 degrees /66: 60 degrees x 60 degrees /95: 90 degrees x 50 degrees. Frequency range is 80 Hz to 18 kHz. JBL rates it at Passive Mode: 300 W (1200 W peak), 100 hrs.

The enclosure is Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior. The grille is Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam. Finish is Black DuraFlex finish. White (-WH) available upon request. Crossover: Bi-amp / Passive switchable. Rigging: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware. Net weight is 79.5 kg (175 lb).
