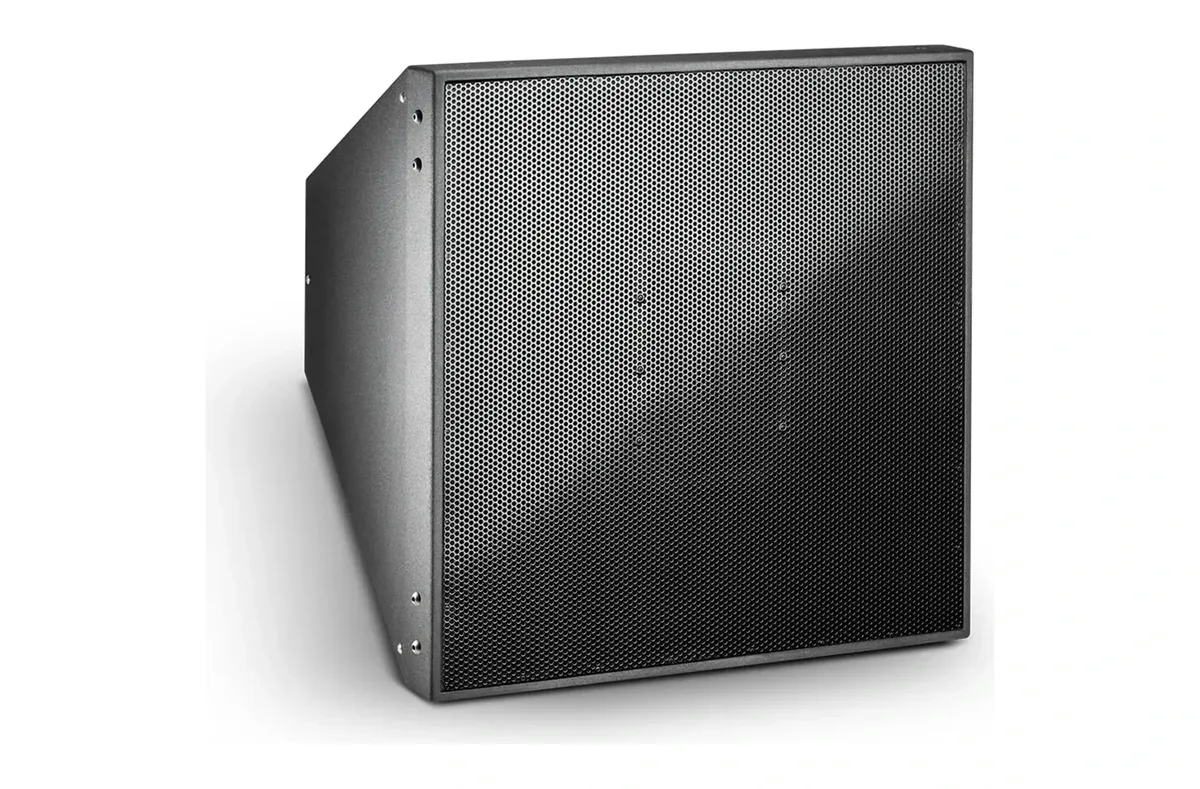

JBL PD743i Dual 8-inch 2-Way Horn-Loaded Speaker with 40 degrees x 30 degrees Horn

The PD743i is a dual 8-inch 2-Way horn-loaded speaker with 40 degrees x 30 degrees horn, from the Precision Directivity install range. High frequencies come from 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil. Nominal coverage is 40 degrees x 30 degrees. Frequency range is 200 Hz to 19.5 kHz. JBL rates it at MHF - 400 W (1600 W Peak) (IEC rated). Nominal impedance is MF: 4 ohms HF: 16 ohms.

The enclosure is Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood. The grille is Black powder coated zinc treated 14 gauge perforated steel with black foam backing. Crossover: Passive. Connections are NL4 for bi-amp operation. Rigging: 32 total points (7 top and bottom, 7 each side, 4 back), M10 threaded hardware. Environmental rating: Available WRC/WRX Version: IP55.
