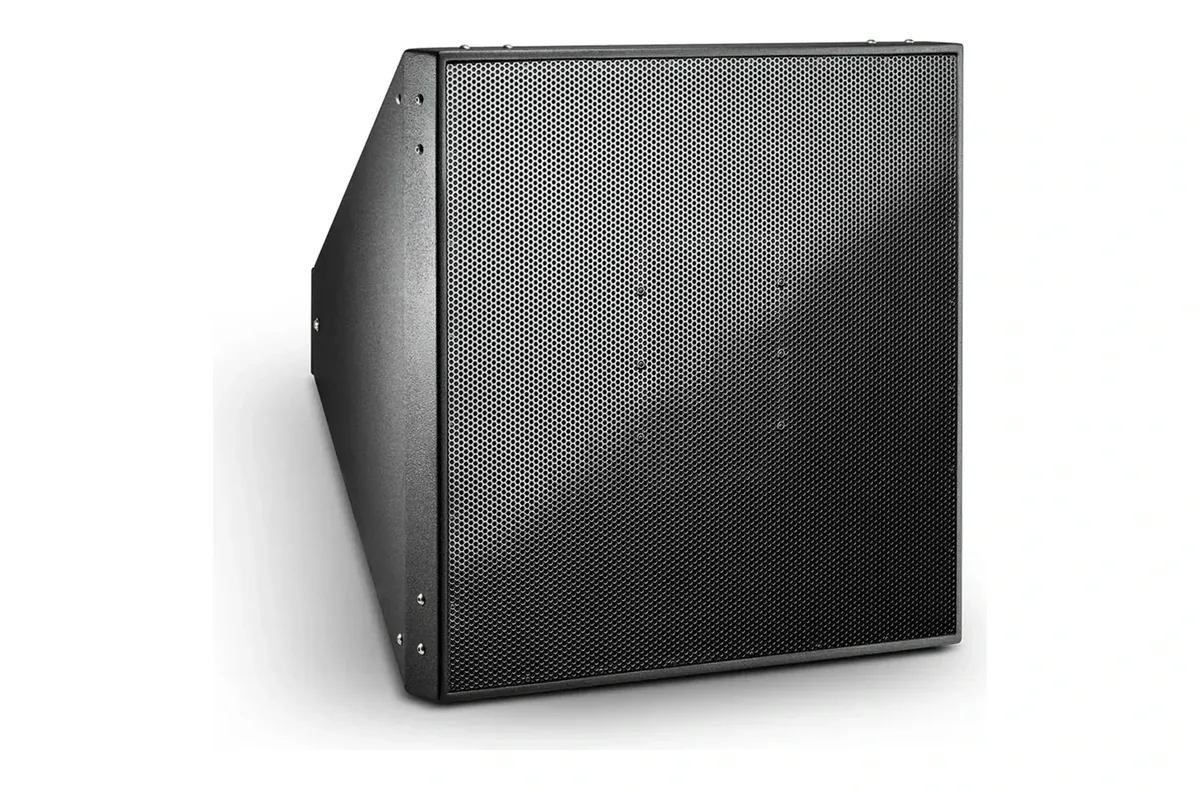

JBL PD764i Dual 8-inch 2-Way Horn-Loaded Speaker with 60 degrees x 40 degrees Horn

The PD764i is a dual 8-inch 2-Way horn-loaded speaker with 60 degrees x 40 degrees horn, from the Precision Directivity install range. High frequencies come from 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil. Nominal coverage is 60 degrees x 40 degrees. Frequency range is 200 Hz to 19.5 kHz. JBL rates it at MHF - 400 W (1600 W Peak) (AES rated). Maximum SPL at 1 m is MHF - 142 dB Peak.

The enclosure is Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood. The grille is Black powder coated zinc treated 14 gauge perforated steel with black foam backing. Crossover: Passive. Connections are NL4 for bi-amp operation. Rigging: 52 total points (12 top and bottom, 11 each side, 6 back), M10 threaded hardwar. Environmental rating: Available WRC/WRX Version: IP55.
