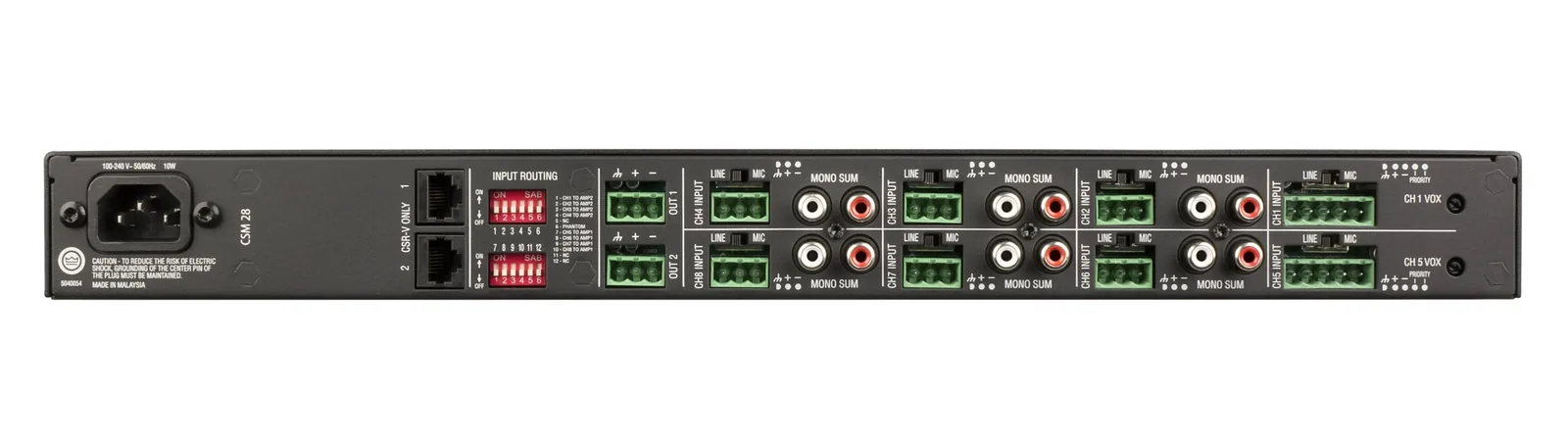

JBL CSM 28 Commercial Mixer

The CSM 28 is a commercial mixer, from JBL's Commercial Series electronics range. 4 or 8 inputs with 1 or 2 channel outputs. Fanless, space-saving 1U design.

It measures 1.7" x 17.2" x 11.9" (43.3mm x 437mm x 303.4mm). Independent base/treble controls. Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection.

Type	Commercial Mixer
Inputs	8
Output Channels	2
Input Sensitivity (Mic)	3mVrms
Input Sensitivity (Line)	775mVrms
Input Sensitivity (RCA)	300mVrms
Phantom Power	27VDC
Configurable Output Routing	No
AC Line Voltage	100 - 240V, 50/60 Hz
