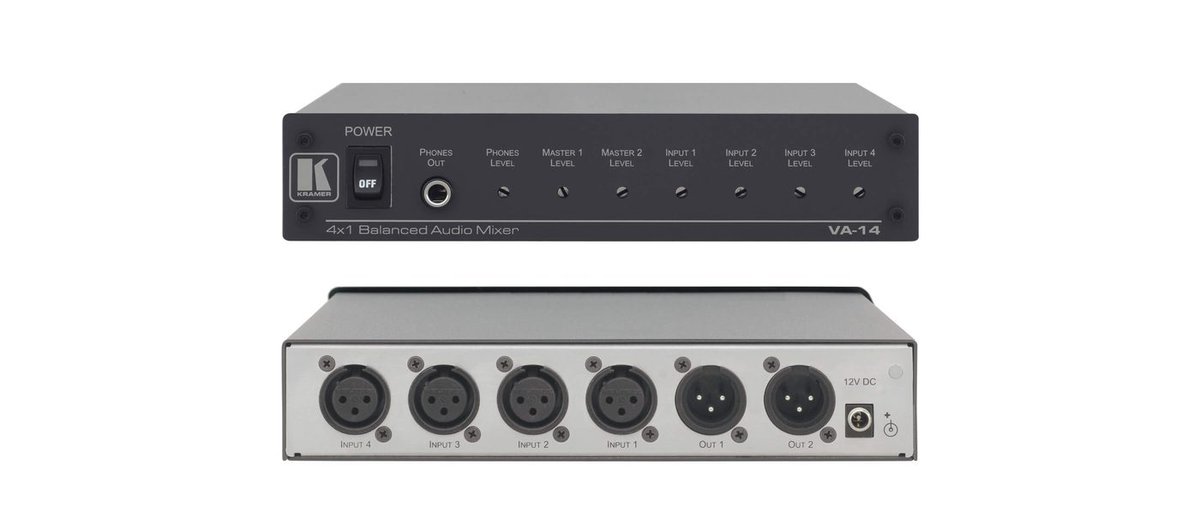

Kramer VA-14 4-Channel Balanced Audio Mixer

The Kramer VA-14 is a 4-Channel balanced audio mixer, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 4 balanced mono audio, line or mic, on XLR (F) connectors (inputs); 2 balanced mono audio on XLR (M) connectors; 1 headphone output on a 6.5mm connector (outputs); Line: 20Vpp; phones: 4.5Vpp; mic: 300mVpp (max. output level). Also: >40kHz; Mic in, phones out: 45.3dB; line in, phones out: 83.3dB; line in, line out: 84.3dB; mic in, line out: 64dB (s/n ratio); Line in, line out: <-57dB to - 14.3dB; mic in, line out; <0dB to 60.5dB; line in, phones out: <-47dB to - 18dB; mic in, phones out: <0dB to 58.9dB; in level and master/phones level, min to max position for both line in, mic out range: <-50dB to - 25dB; mic in, mic out range:<0dB to 21.6dB; underside slide switches: inputs: line/mic and +48V phantom ON/OFF; Outputs: Line/Mic (controls); IN: AC; OUT: bal line/mic, DC; phones, AC (coupling); Line in, line out: 0.007%; mic in, line out: 0.15%; line in, phones out: 0.085%; Mic in, phones out: 0.38% (audio thd + noise).
