Gator G-TOUR 4U Rack Case

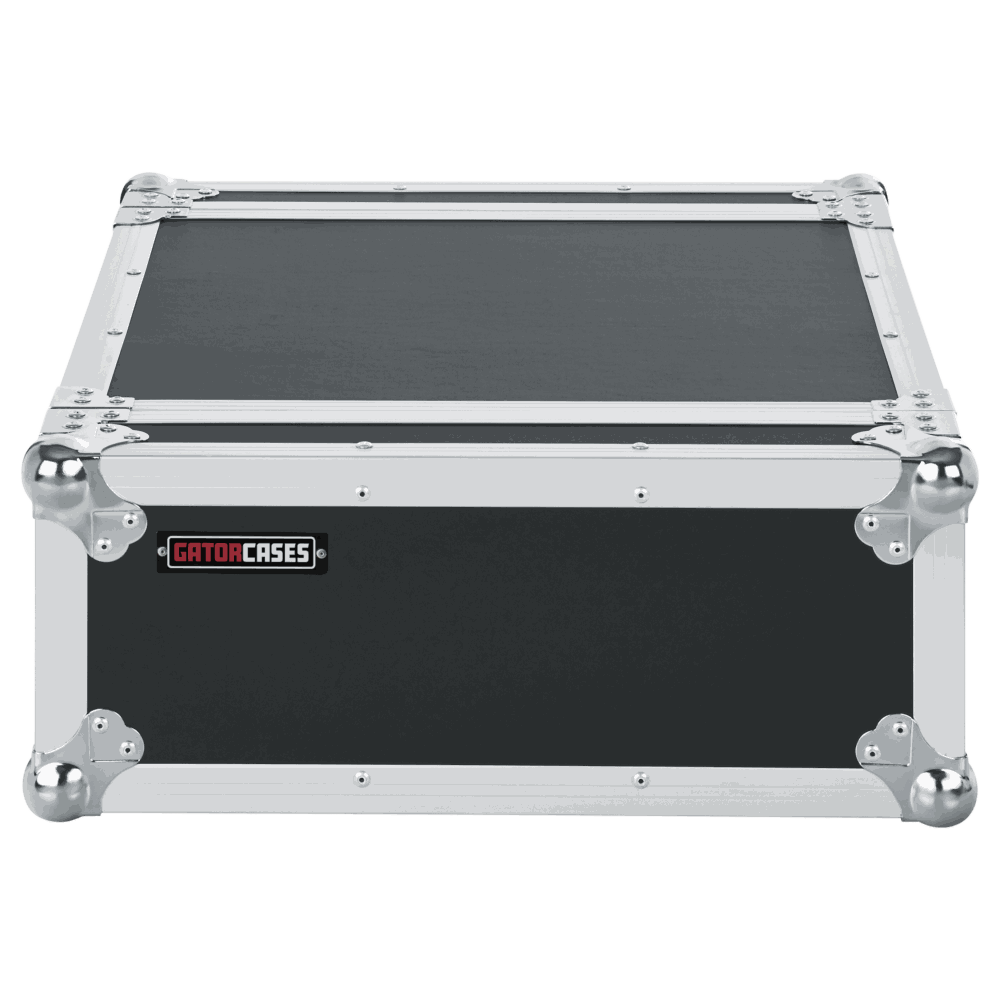

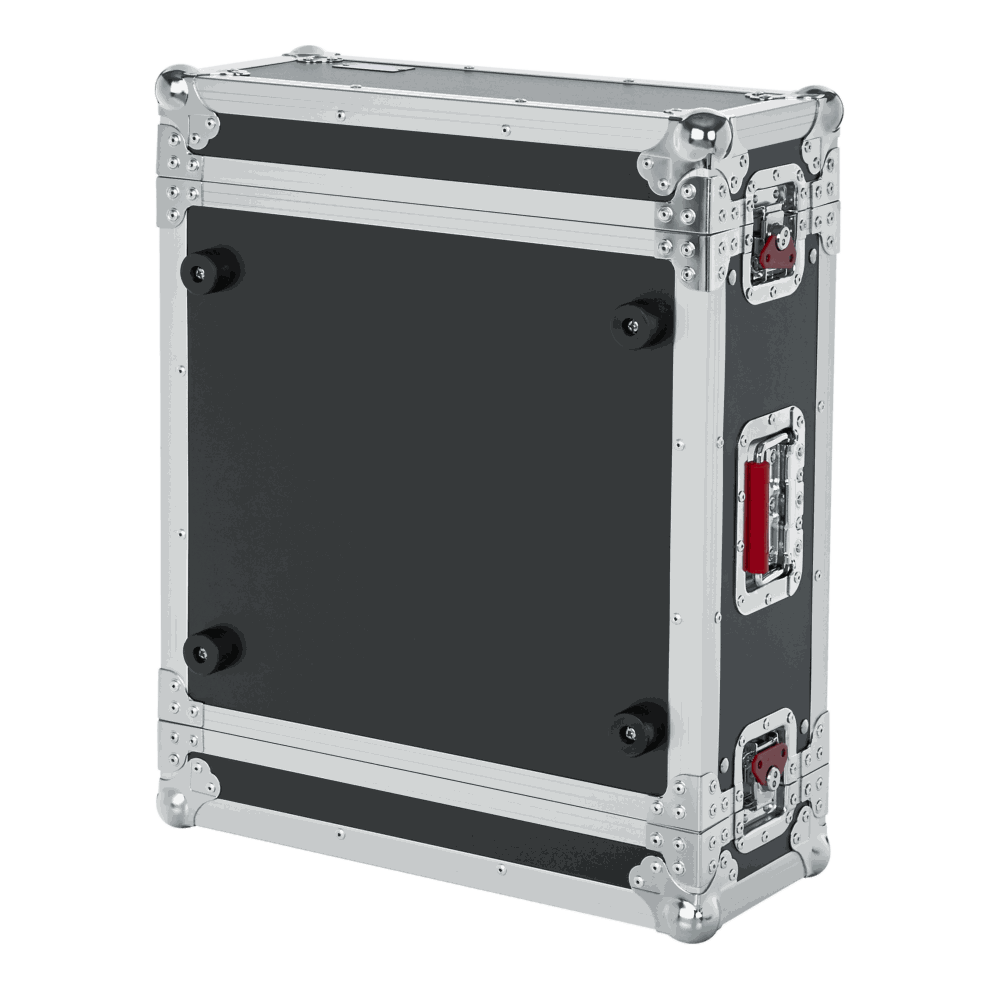

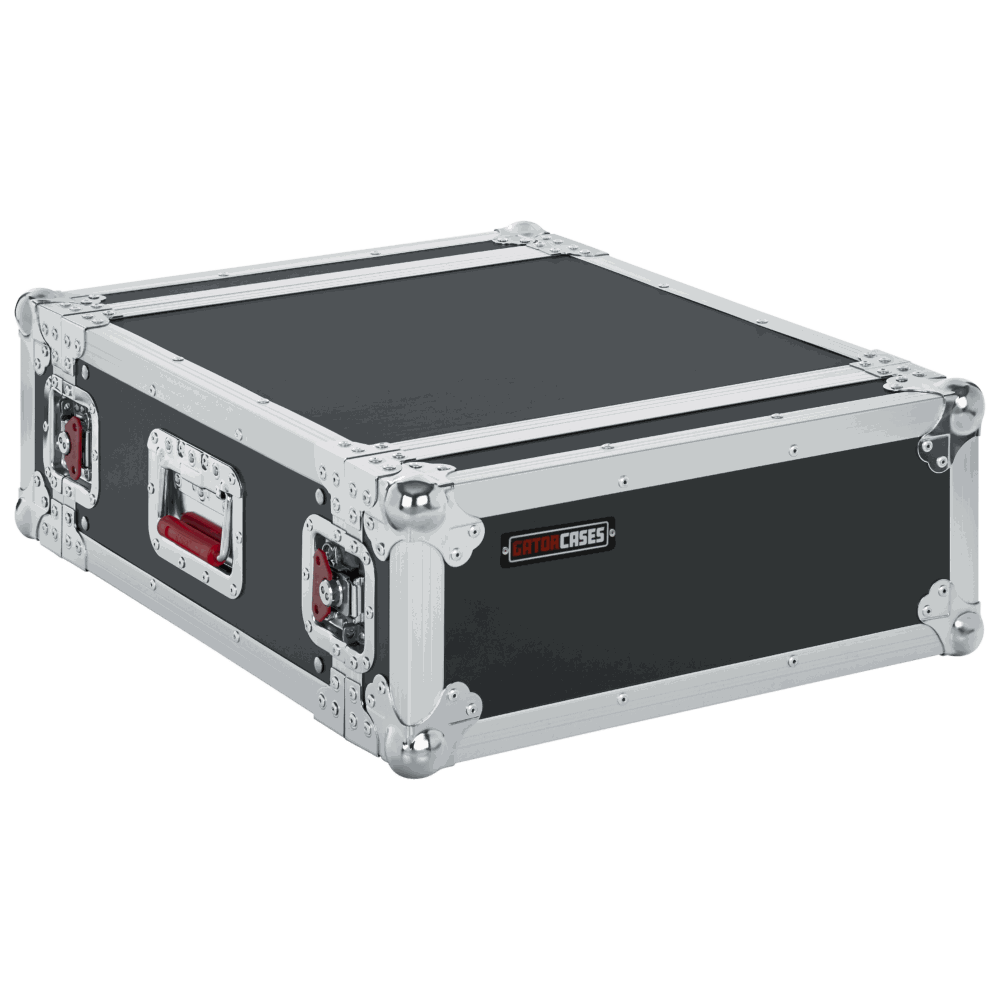

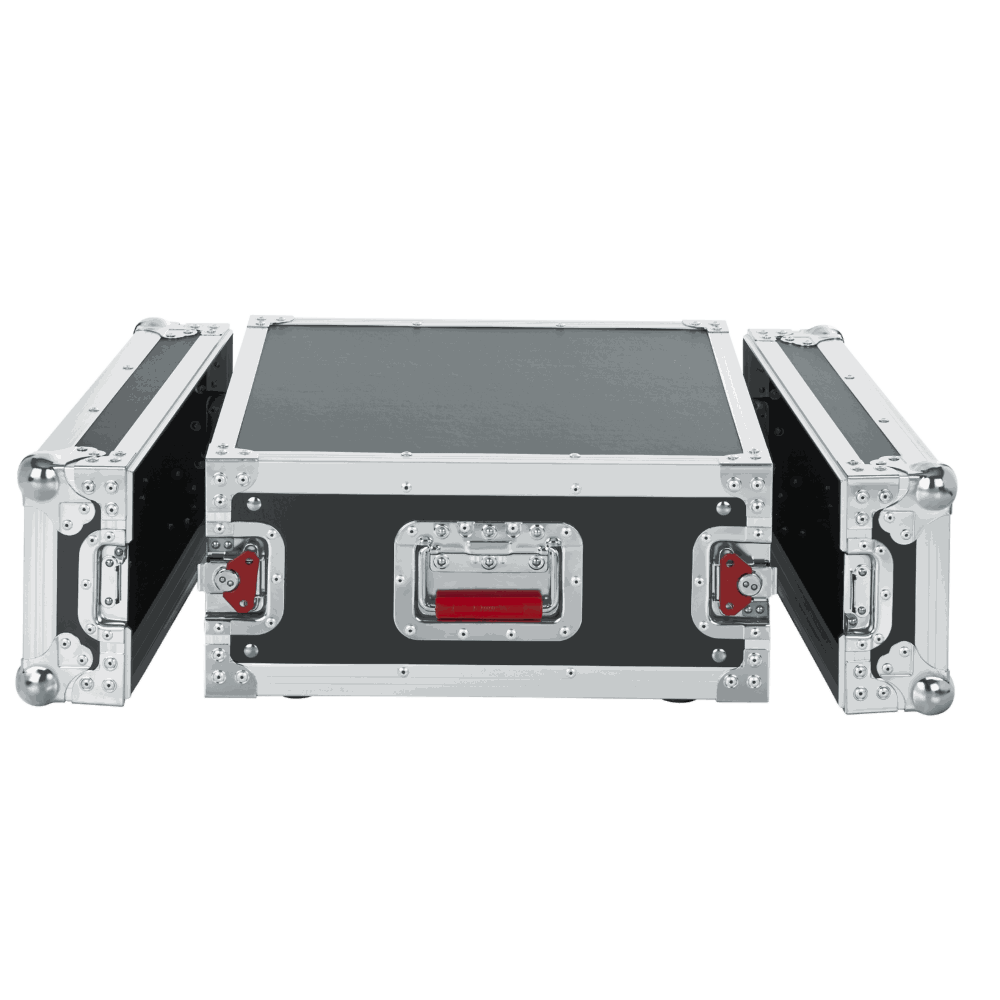

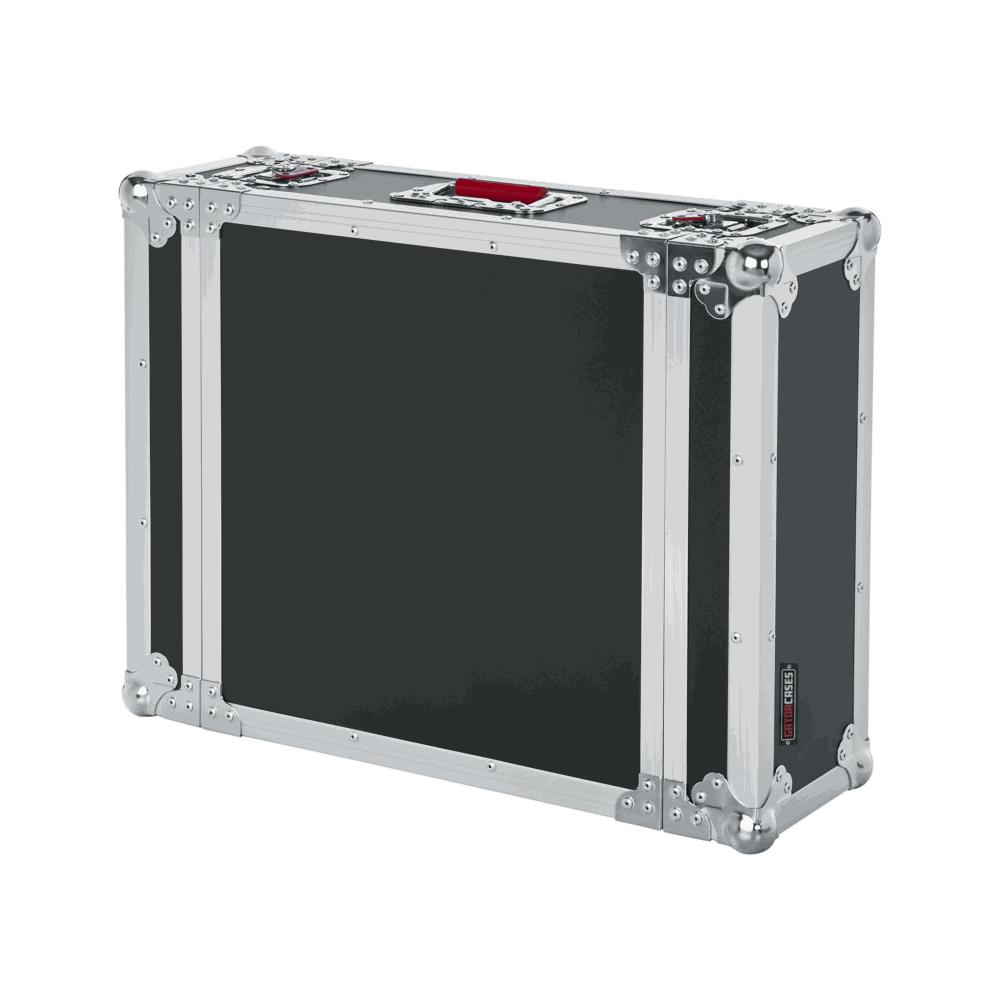

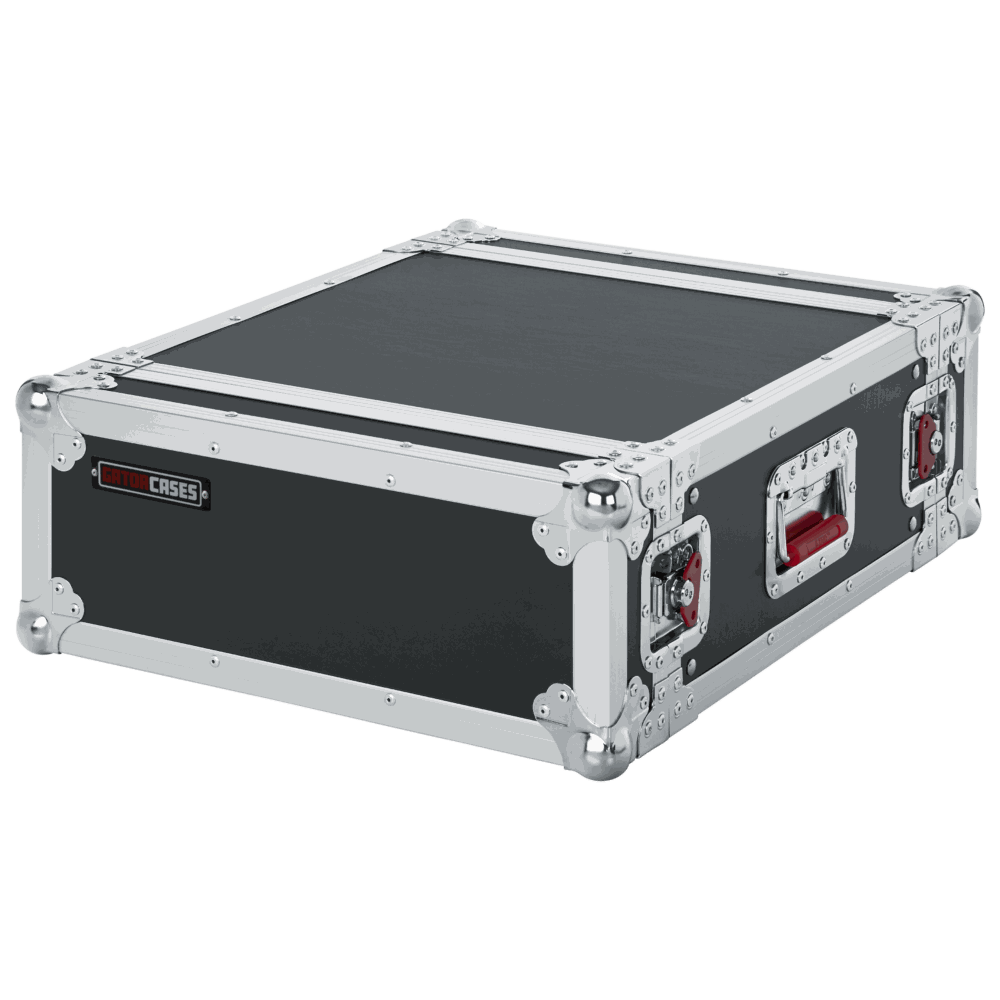

The Gator G-TOUR 4U is an ATA-style wood flight case sized for four rack spaces of mixers, processors, power conditioning, and interface gear. A 9mm plywood shell with a laminated exterior rides on a tongue-and-groove extruded aluminum valance, so the case seals flat and stacks square with the rest of the G-TOUR rack line.

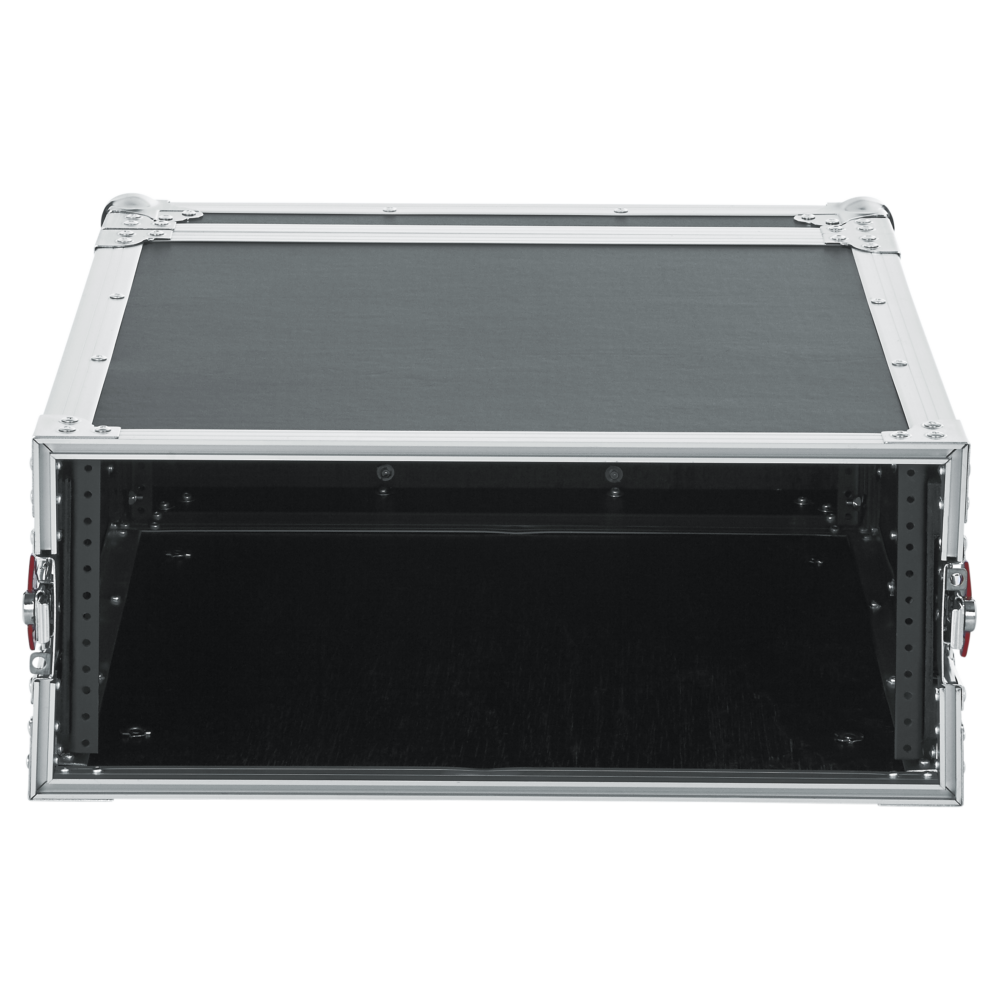

Steel rails 3.2mm thick run front and rear with 17 inches of usable rack depth, which is what lets a deeper chassis seat cleanly on both ends rather than cantilever off the front. Red recessed twist latches, reinforced ball corners, and spring-loaded rubber-gripped handles keep the rig protected through stacking, shipping, and stage moves. The rack opening is 7.00 inches tall on a 19-inch width; the case measures 25.75 x 21.50 x 9.50 inches outside and weighs 28.67 pounds empty.
| Rack Units | 4U |
|---|---|
| Usable Rack Depth | 17 in |
| Interior Dimensions (L x W x H) | 16.50 x 19.00 x 7.00 in |
| Exterior Dimensions (L x W x H) | 25.75 x 21.50 x 9.50 in |
| Weight | 28.67 lb |
| Construction | 9mm plywood with laminated exterior |
| Rack Rails | 3.2mm steel, front and rear |
| Valance | Tongue-and-groove extruded aluminum |
| Hardware | Recessed twist latches, spring-loaded rubber-gripped handles, reinforced ball corners |
