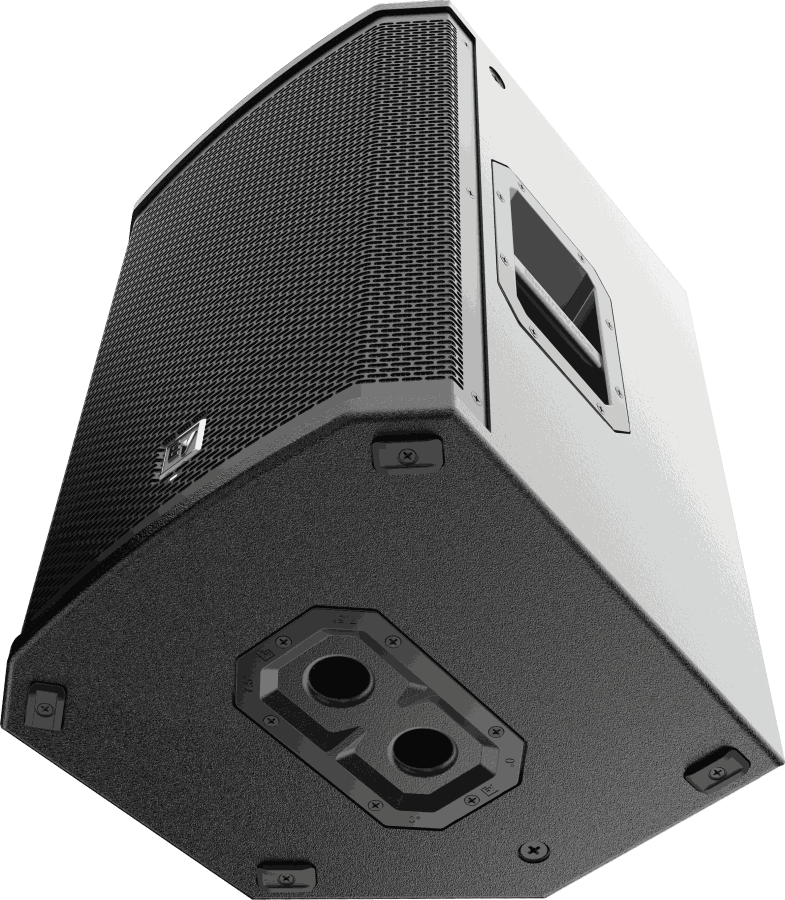

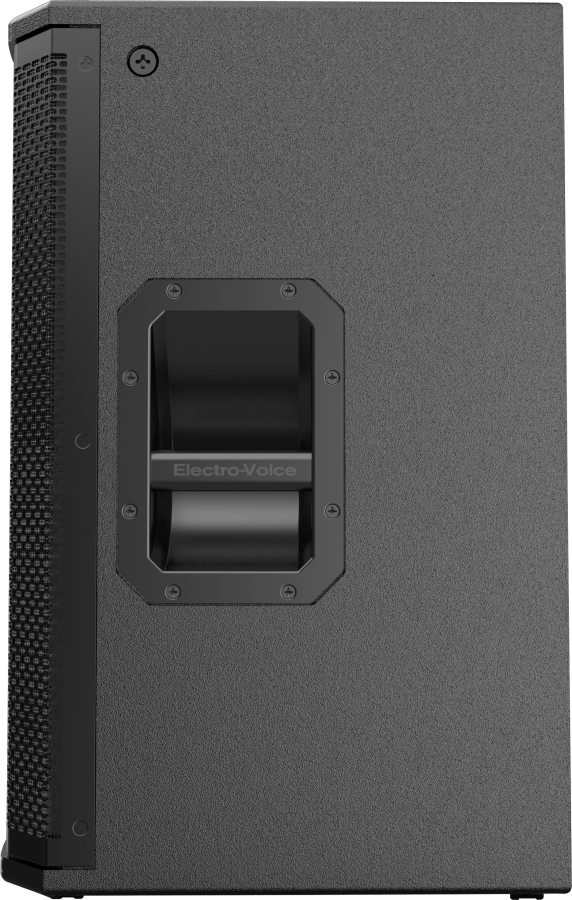

Electro-Voice ETX-12P Enclosure

The ETX-12P is part of the Electro-Voice installed sound range. It pairs a SMX2120 300 mm (12 in) with a DH3-B 1.25-in titanium compression driver. Rated power is 2000 W.

The cabinet is 18mm plywood with EVCoat. It connects by (2) XLR/TRS combo jack and (1) XLR link output. Rigging is (8) M10 suspension points. It measures 613 mm x 381 mm x 400 mm (24 in x 15 in x 16 in). The grille is 16AWG steel with powdercoat.

LF Transducer	SMX2120 300 mm (12 in)
HF Transducer	DH3-B 1.25-in titanium compression driver
Power Rating	2000 W
Enclosure	18mm Plywood with EVCoat
Grille	16AWG steel with powdercoat
Connectors	(2) XLR/TRS combo jack and (1) XLR link output
Suspension	(8) M10 suspension points
Dimensions (H x W x D)	613 mm x 381 mm x 400 mm (24 in x 15 in x 16 in)
