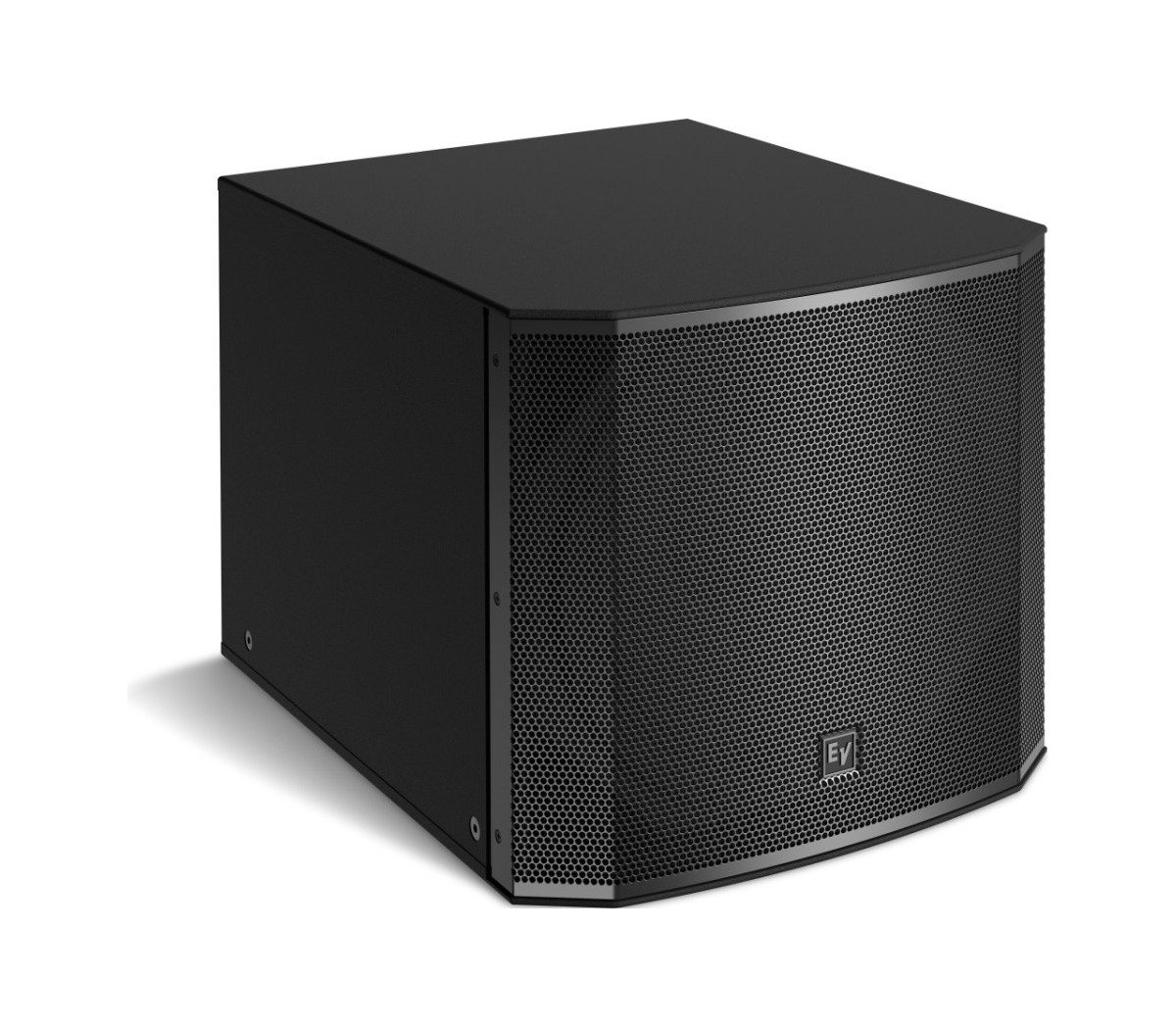

Electro-Voice EVC-1181S Enclosure

The EVC-1181S is part of the Electro-Voice installed sound range. It runs an EVS-18L.

The cabinet is 15mm weather-resistant plywood with EV coat. It connects by dual four-pin 10 AWG (6 mm) Phoenix/Euro block screw-terminals. Rigging is four M10 inserts. The grille is 18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models). Color is black or white. Pick the version you need above: Black; White; Black, PI weather-resistant; White, PI weather-resistant.

LF TransducerEVS-18L
Enclosure15mm weather-resistant plywood with EV Coat
Grille18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
ColorBlack or White
ConnectorsDual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals
Environmental SpecsIEC 60529, IP44 (IP55 for PI versions)
Suspensionfour M10 inserts
Frequency Response (-3 dB)38Hz-95k
