EtherWAN EASYCELL5G-ANT-RFT 5G Combo MIMO Mobile/GNSS/WiFi Roof SMA Antenna

EtherWAN EASYCELL5G-ANT-RFT 5G Combo MIMO Mobile/GNSS/WiFi Roof SMA Antenna adds GNSS positioning and Wi-Fi to the same roof-mount MIMO antenna role as the ANT-RFC, for an EasyCell5G router that also needs GPS/GNSS location or a Wi-Fi uplink. It covers 600-960 MHz and 1400-6000 MHz for 5G/LTE, with a high-sensitivity GNSS element carrying 40 dB LNA gain.

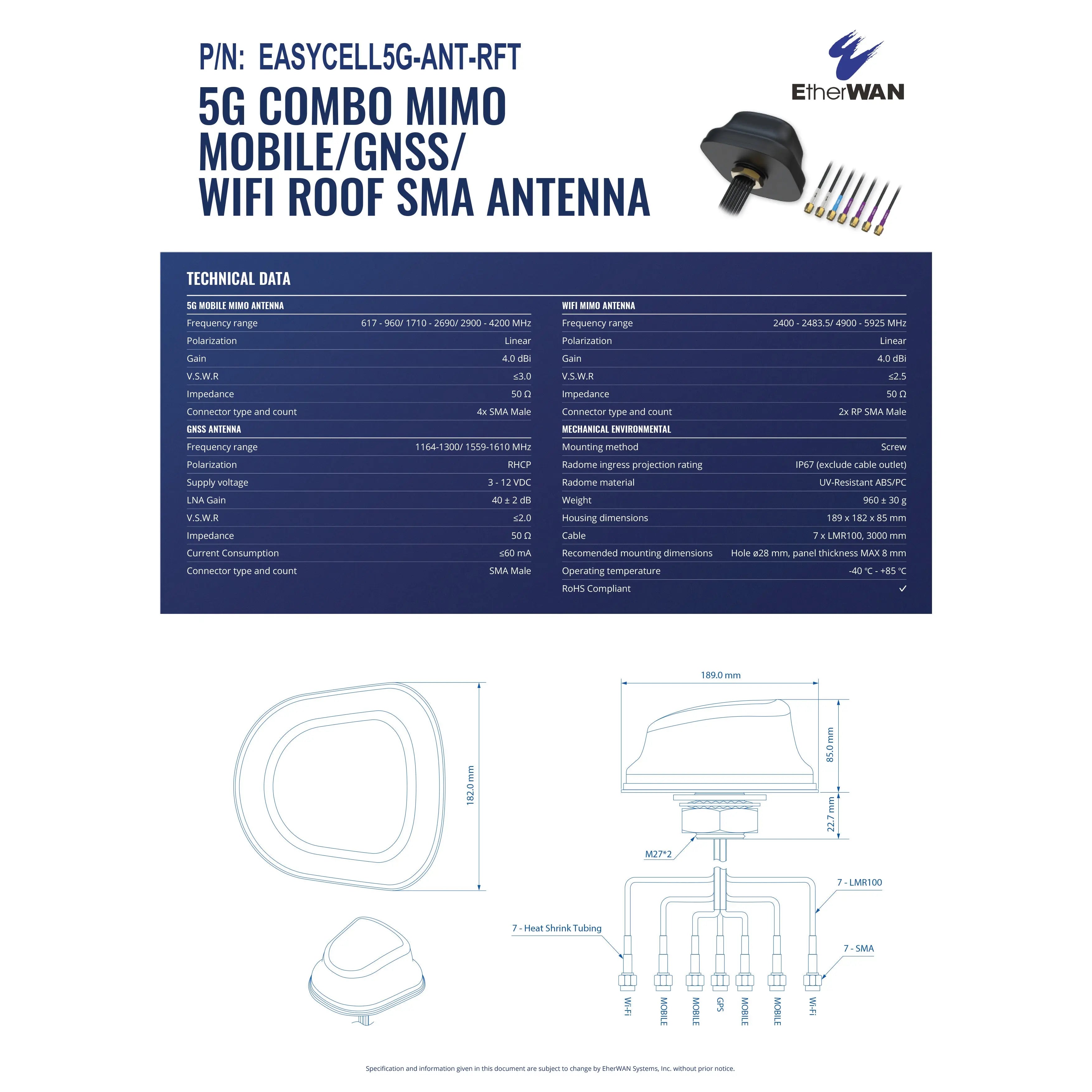

The housing is IP67-rated and UV-resistant, rated to operate from -40 to 85 deg C, and mounts through a single M27 screw-mount nut for rooftop or vehicle installs. It ships with 4x SMA male (cellular), 2x RP-SMA male (Wi-Fi) and 1x SMA male (GNSS) connectors on 3-meter LMR100 cables. Specifications are taken from the EtherWAN datasheet for this product.

Frequency Coverage	600-960 MHz and 1400-6000 MHz (5G/LTE)
Gain	Up to 4.7 dBi (cellular and Wi-Fi bands)
GNSS	Integrated, 40 dB LNA gain
IP Rating	IP67, UV-resistant housing
Operating Temperature	-40 to 85 deg C (-40 to 185 deg F)
Connectors	4x SMA Male (cellular), 2x RP-SMA Male (Wi-Fi), 1x SMA Male (GNSS), 3m LMR100 cables
Mounting	Screw-mount, M27 nut, rooftop or vehicle
Dimensions	189mm x 182mm x 85mm (W x H x D) \| 7.44" x 7.17" x 3.35"
Weight	0.96kg (2.12lbs)
