EtherWAN EASYCELL5G-ANT-RFC MIMO 5G Combo Mobile Roof SMA Antenna

EtherWAN EASYCELL5G-ANT-RFC MIMO 5G Combo Mobile Roof SMA Antenna is the roof-mount MIMO antenna for an EasyCell5G router, built for the same vibration and weather a vehicle or outdoor cabinet sees. It covers 600-960 MHz and 1400-6000 MHz for full 5G and LTE spectrum, with an omni-directional pattern so orientation is not critical on a moving vehicle.

The housing is IP67/IP69K rated against water, dust and vibration and is rated to operate from -40 to 85 deg C. It ships with 4x SMA male connectors and 4x 3-meter ALS302 cables, and mounts through a single M27 screw-mount nut for a secure rooftop install. Specifications are taken from the EtherWAN datasheet for this product.

Frequency Coverage	600-960 MHz and 1400-6000 MHz (5G/LTE)
Gain	Up to 4.7 dBi
Pattern	Omni-directional
IP Rating	IP67/IP69K
Operating Temperature	-40 to 85 deg C (-40 to 185 deg F)
Connectors	4x SMA Male, with 4x ALS302 cables (3000mm)
Mounting	Screw-mount, M27 nut, rooftop

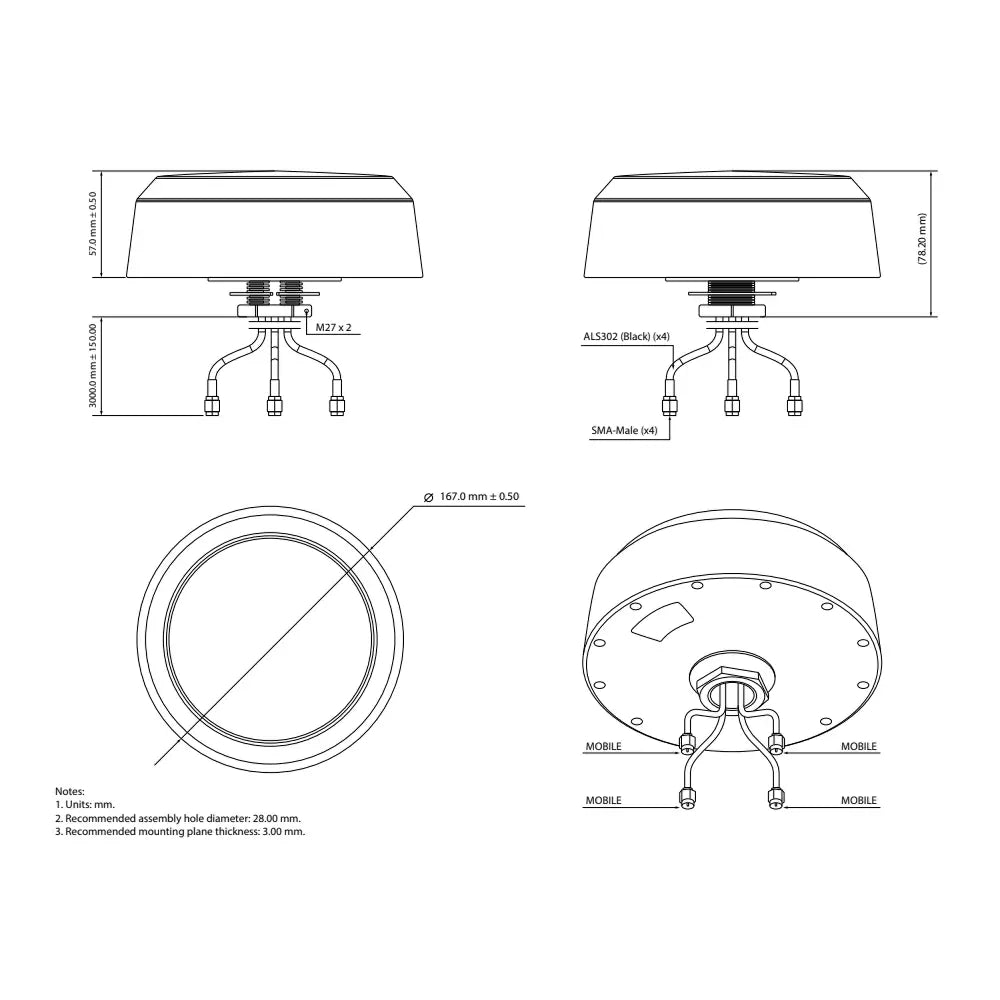

Dimensions	167mm x 167mm x 57mm (W x H x D) \| 6.57" x 6.57" x 2.24"
Weight	0.70kg (1.54lbs)
