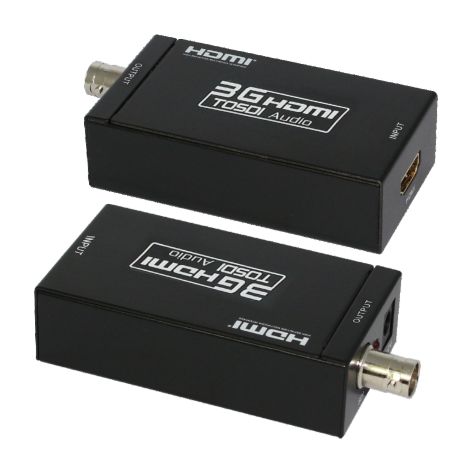

DVDO HDMI-3GSDI HDMI to 3G-SDI Converter

The HDMI-3GSDI works the other direction from a normal SDI monitoring chain: it takes an HDMI source such as a camera or a computer and puts it on an SDI monitor or an SDI infrastructure. The rate chosen follows the input, so 480i and 576i go out as SD-SDI, 720p and 1080i as HD-SDI, and 1080p as 3G-SDI.

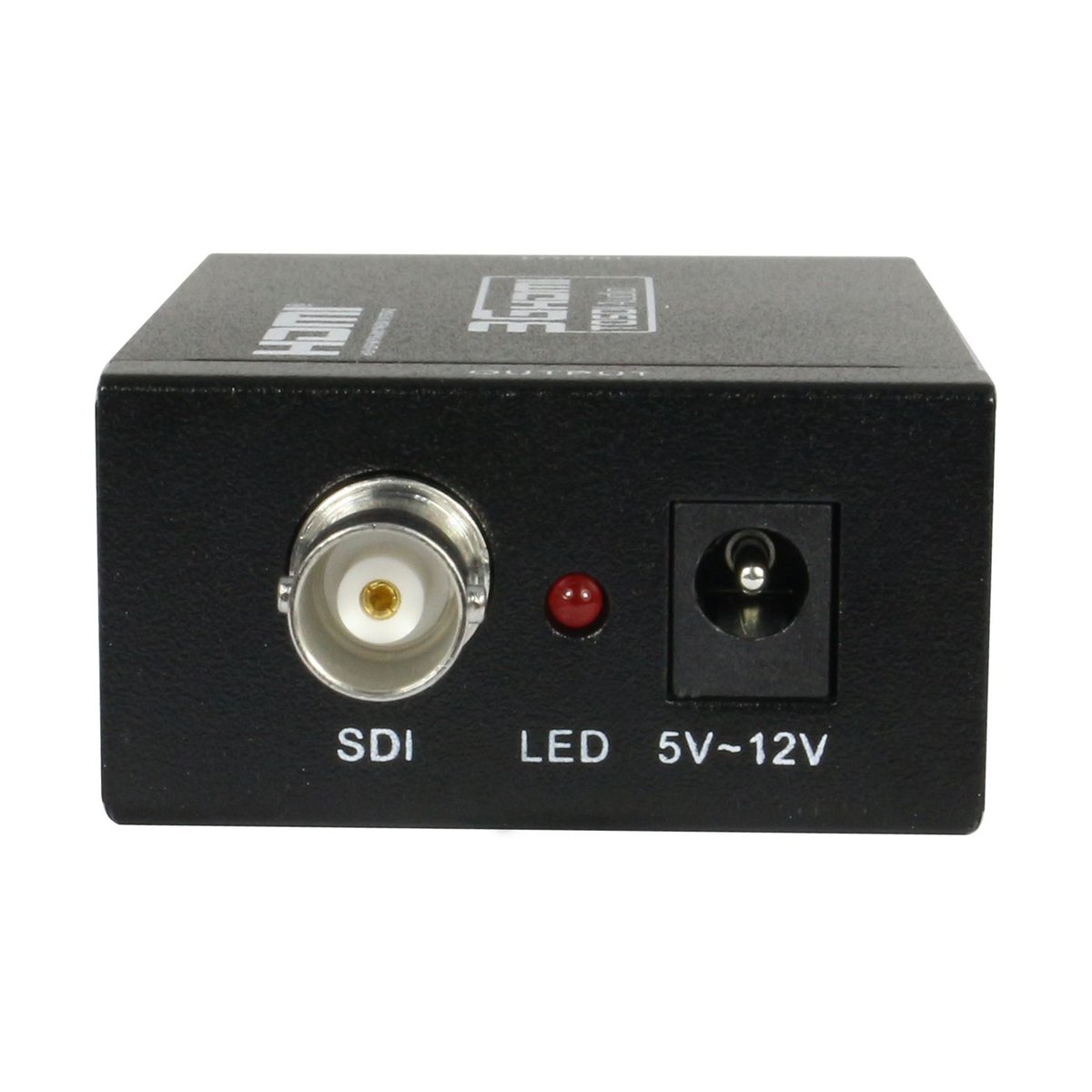

Signal equalization and re-clocking are built in, which is what makes the long cable runs possible: up to 100 m at 3G-SDI, 200 m at HD-SDI and 300 m at SD-SDI. The enclosure is small enough to sit behind a display, in the back of a rack, or on the camera rig itself.

Video Input	1 x HDMI
Video Output	1 x SDI (SD / HD / 3G, selected by input)
HDMI Input Resolutions	480i 59.94, 576i, 720p 50 / 59.94 / 60, 1080i 50 / 59.94 / 60, 1080p 23.98 - 60 Hz
SDI Standards	SMPTE 259M-C (SD), SMPTE 292M (HD), SMPTE 424M / 425M-AB (3G)
SDI Data Rates	270 Mb/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s, 2.970 Gbit/s, 2.970/1.001 Gbit/s
Cable Reach	Up to 100 m at 3G-SDI, 200 m at HD-SDI, 300 m at SD-SDI
Signal Conditioning	Equalization and re-clocking on the SDI output
