DVDO AudioEmb-1 4K HDMI 2.0b Audio Embedder

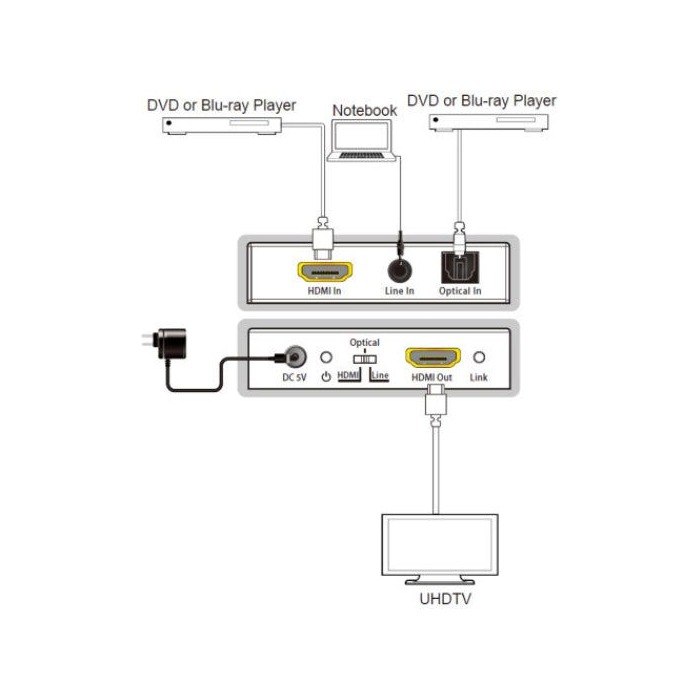

The AudioEmb-1 solves the case where the picture and the sound arrive on different cables and have to leave on one. It takes audio from an optical S/PDIF or an analog 3.5 mm line input and embeds it into the HDMI stream, so a display or an AV receiver downstream gets both on a single connection. HDCP 2.2 and CEC pass through untouched.

Video is left alone. Both HDMI ports run the full 18 Gbps of HDMI 2.0b, carrying up to 4K2K at 50 or 60 Hz in YUV 4:4:4, with 10-bit HDR pass-through and high bit rate audio bypass for LPCM, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio at sampling rates up to 192 kHz. The metal enclosure is 73.5 mm wide and draws 1.25 W.

HDMI Compliance	HDMI 2.0b, HDCP 2.2 and 1.4, DVI 1.0
Video Bandwidth	18 Gbps
Video Resolutions	Up to 4K2K 50 / 60 Hz (YUV 4:4:4), 4K2K 30 Hz, 1080p 120 Hz, 1080p 3D 60 Hz

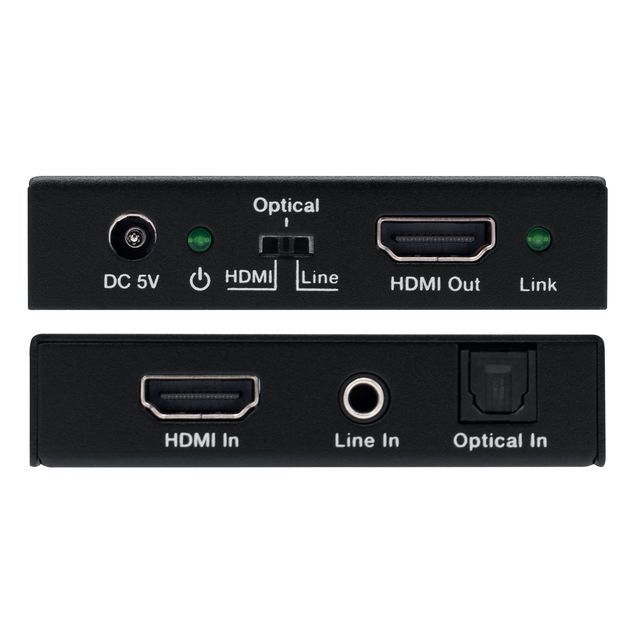

Inputs	1 x HDMI Type A, 1 x line in (3.5 mm stereo), 1 x optical in (S/PDIF)
Output	1 x HDMI Type A
Optical Audio Formats	LPCM 2CH, Dolby Digital 2 / 5.1CH, DTS 2 / 5.1CH
HDMI Audio Pass-Through	LPCM 2 / 5.1 / 7.1CH, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
Enclosure and Power	Metal, 73.5 x 60.7 x 17 mm, 122 g, DC 5 V / 1 A, 1.25 W
