Deity SPD-1 Smart Battery Power Distributor

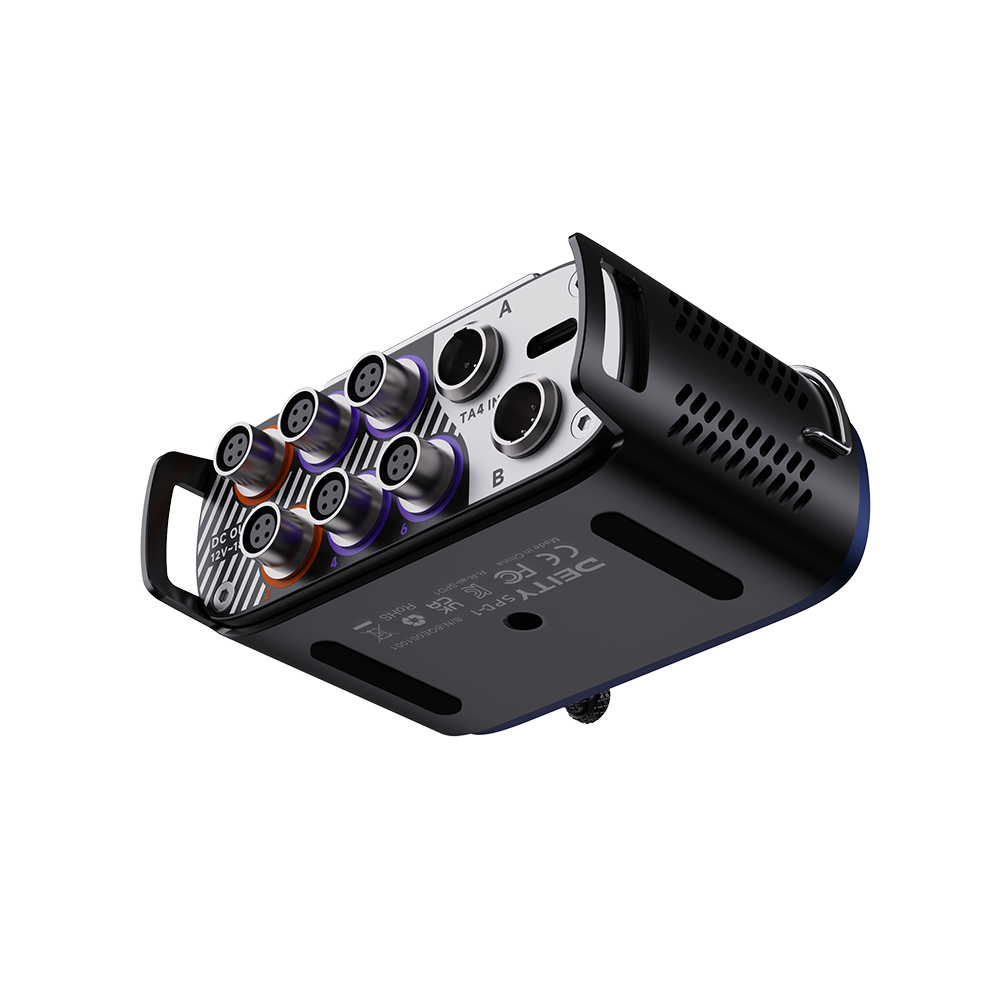

The SPD-1 takes two TA4f smart battery inputs plus a 12 V USB-C feed and splits them across six 4-pin push-pull power outputs, divided into two switched circuit groups so auxiliary gear can be shut down without dropping the recorder. Batteries are hot-swappable, and the mixer sees what is left: the 1.1 in TFT screen reads total draw, pack voltage, temperature, remaining life and cycle count off SMBus smart packs.

It runs from 12 V to 18 V with a low-voltage warning between 9 V and 12 V, an over-voltage cutoff at 18 V and an under-voltage cutoff at 7 V. A front-facing 5 V 2 A USB-A port covers phone and comms charging. The aluminium chassis carries two 1/4 in-20 threaded mounts and a removable clip so it can hang either way up in a bag or bolt to a cart.

Inputs	2 x TA4f smart battery, 1 x USB-C 12 V
Outputs	2 x 4-pin push (5 A total), 4 x 4-pin push (5 A total), 1 x USB-A 5 V 2 A
Operational Voltage Range	12 V - 18 V
Low Voltage Warning	9 V - 12 V
Over / Under Voltage Cutoff	18 V / 7 V
Display	1.1 in TFT colour screen
Mounting	2 x 1/4 in-20 threaded, 1 x removable clip
Dimensions	36 x 89 x 64 mm
Weight	159 g
