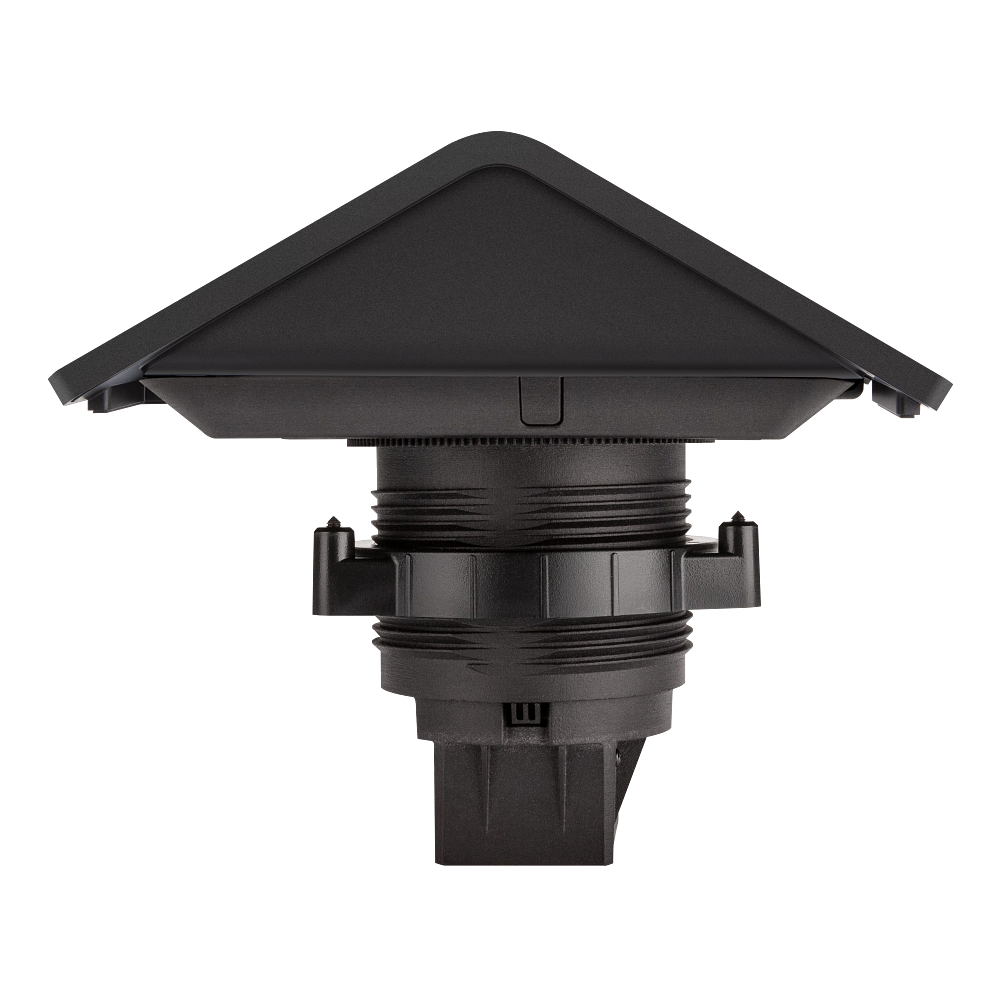

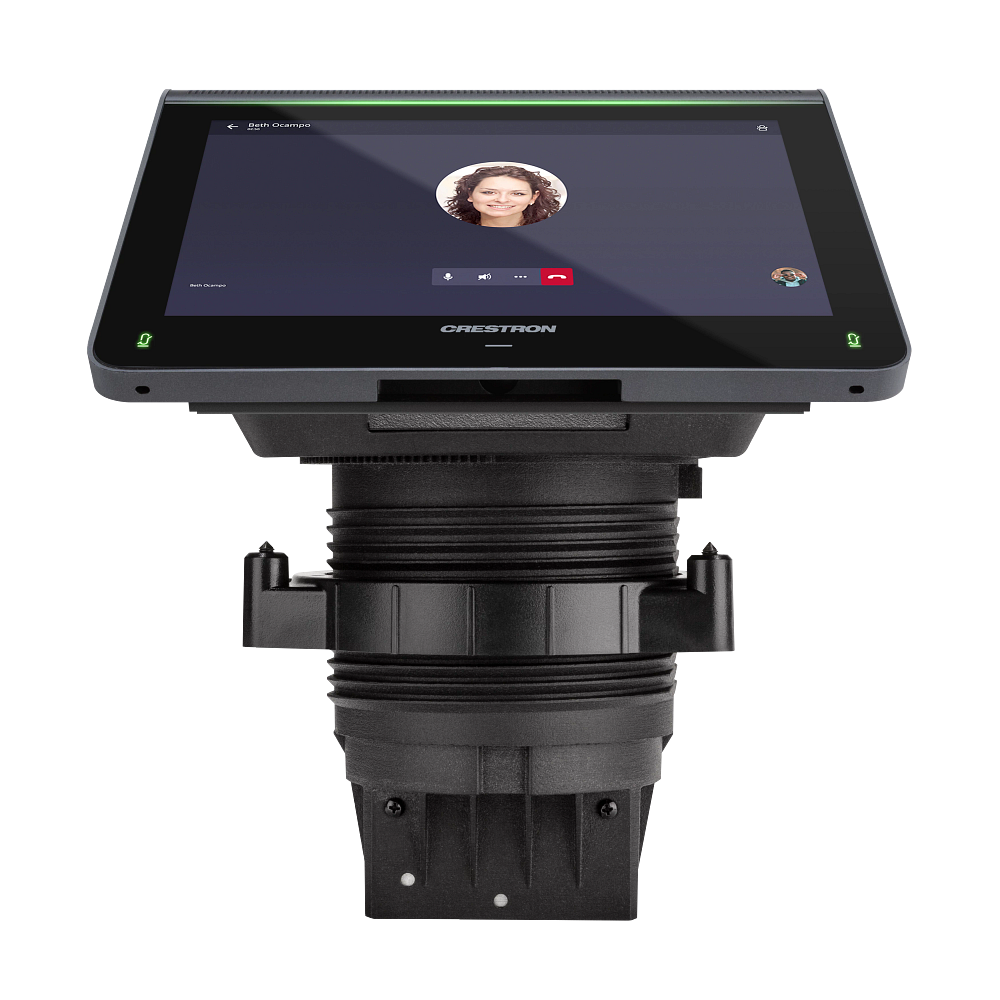

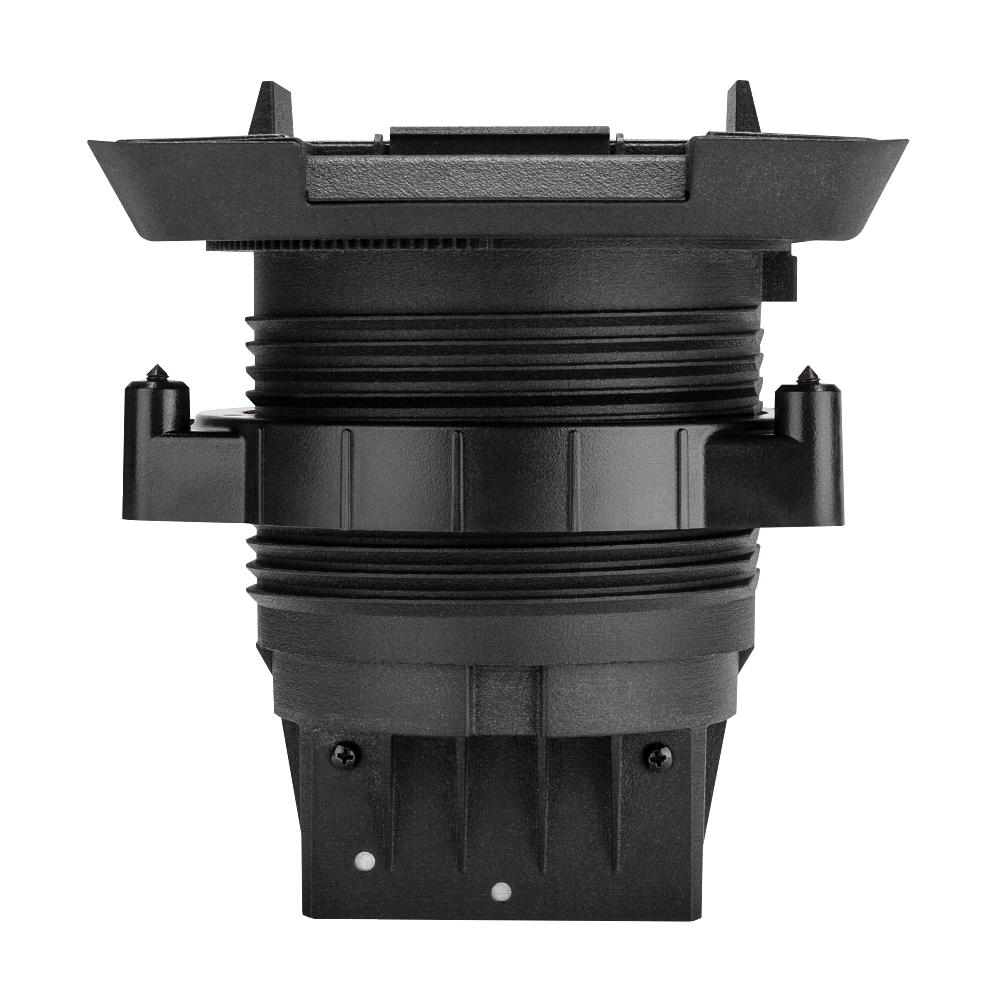

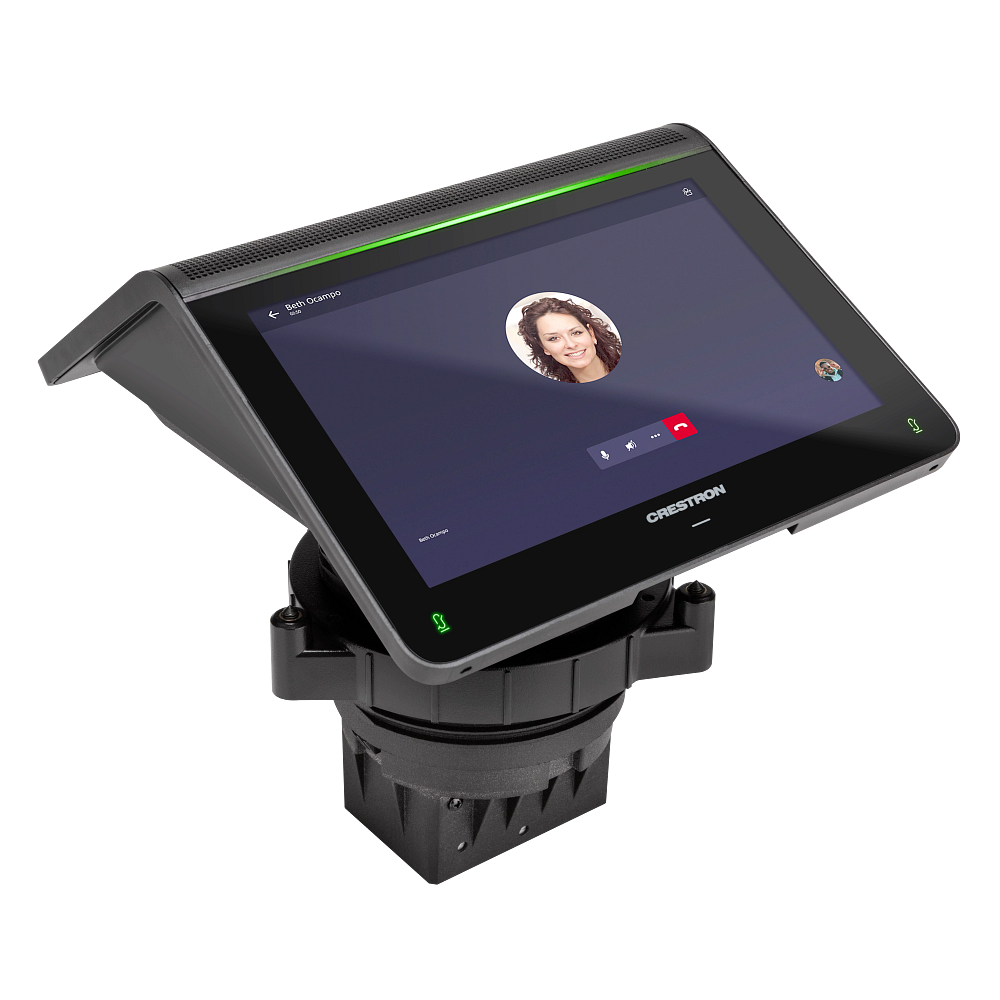

Crestron UCA-SMK-UC2 Swivel Mount for the Flex Tabletop Small Room System

The UCA-SMK-UC2 mounts a Crestron Flex Tabletop Small Room Conference System permanently to a table without freezing it in place: the device still swivels 170 degrees in total, 85 degrees either side of center, so the screen can face whoever is using it.

It is black polycarbonate-ABS, fastened by a locking nut through a 4 in. diameter cutout, with a template included. It suits surfaces from 1/2 in. to 1-1/4 in. thick. Without the UC-2 fitted the assembly stands 1.20 in. above the table and drops 4.07 in. below; with the UC-2 fitted it stands 3.34 in. above.

Compatible Models	Crestron Flex Tabletop Small Room Conference System
Swivel Range	170 degrees total, -85 to +85 degrees
Material	Black polycarbonate-ABS
Mounting	Tabletop mount fastened by a locking nut, 4 in. (102 mm) diameter cutout, template included
Surface Thickness	1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum
Height (without UC-2)	6.04 in. (153 mm) total, 1.20 in. above and 4.07 in. below the table
Height (with UC-2)	8.16 in. (207 mm) total, 3.34 in. above and 4.07 in. below the table
