Crestron UCA-SMKR-UC2-3 Swivel Mount Cable Retractor for the Flex Advanced Tabletop System

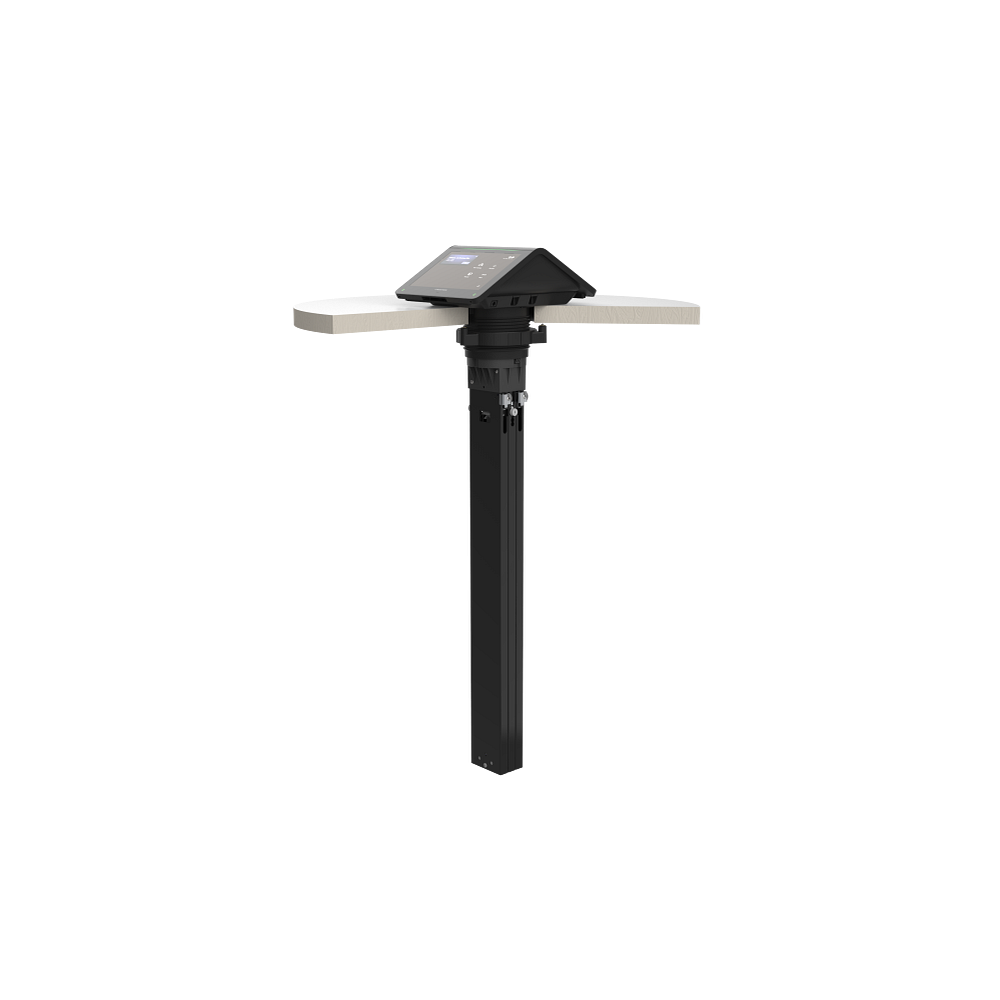

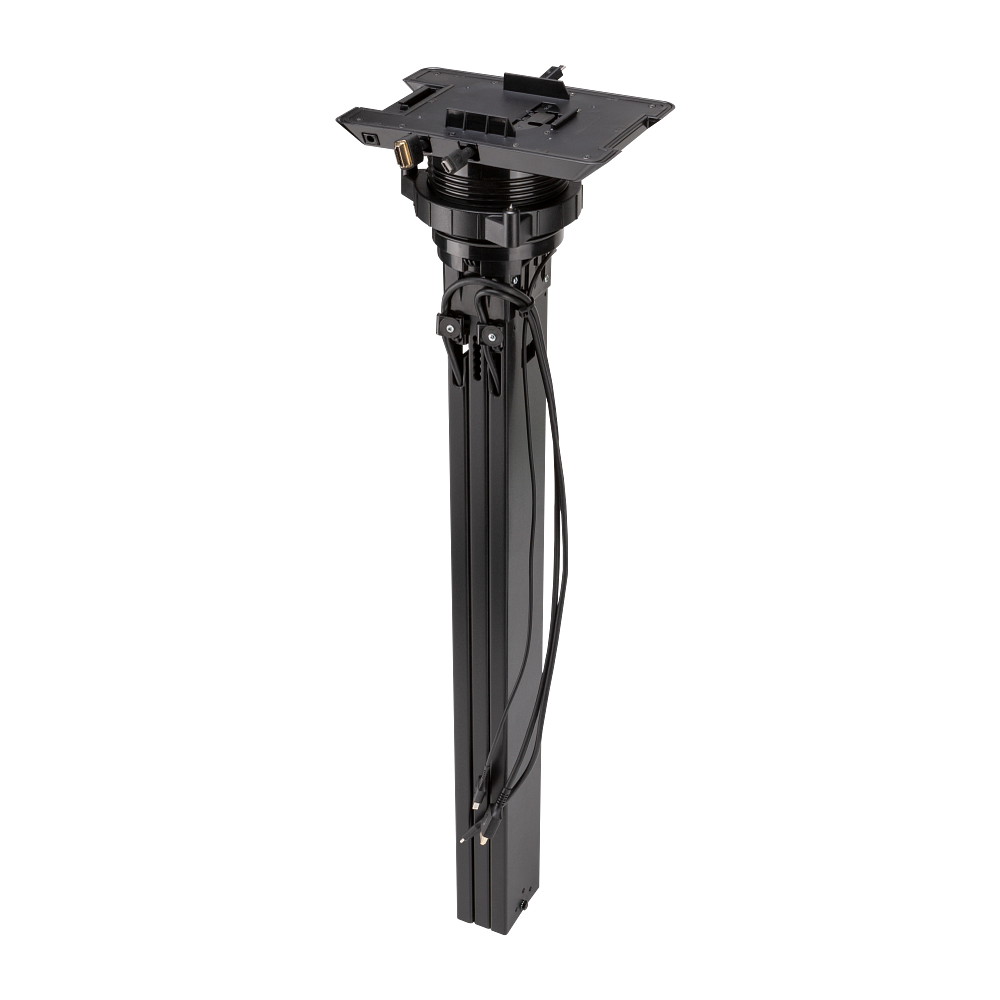

This is the swivel mount for the Crestron Flex Advanced Tabletop Small Room Conference System with cable management built in. It fixes the device to the table with the same 170 degree swivel range, and adds three retracting cables that pull up to 3 ft above the surface and disappear again when released.
The cables cover the three connections a guest laptop needs: USB 2.0 as USB-A above the table to Micro USB-B below, HDMI 2.0 male at both ends, and USB 3.2 as USB-C at both ends. Construction is black polycarbonate-ABS and metal, fastened by a locking nut into a 4 in. cutout with a template included, for surfaces from 0.75 in. to 1.5 in. thick.
| Compatible Models | Crestron Flex Advanced Tabletop Small Room Conference System |
|---|---|
| Swivel Range | 170 degrees total, -85 to +85 degrees |
| Cable Pullout Length | Up to 3 ft above the table |
| USB 2.0 Cable | USB-A male above the table to Micro USB-B male below |
| HDMI 2.0 Cable | HDMI male above and below the table |
| USB 3.2 Cable | USB-C male above and below the table |
| Material | Black polycarbonate-ABS and metal |
| Mounting | Tabletop mount fastened by a locking nut, 4 in. (102 mm) diameter cutout, 0.75 in. to 1.5 in. surface thickness |
