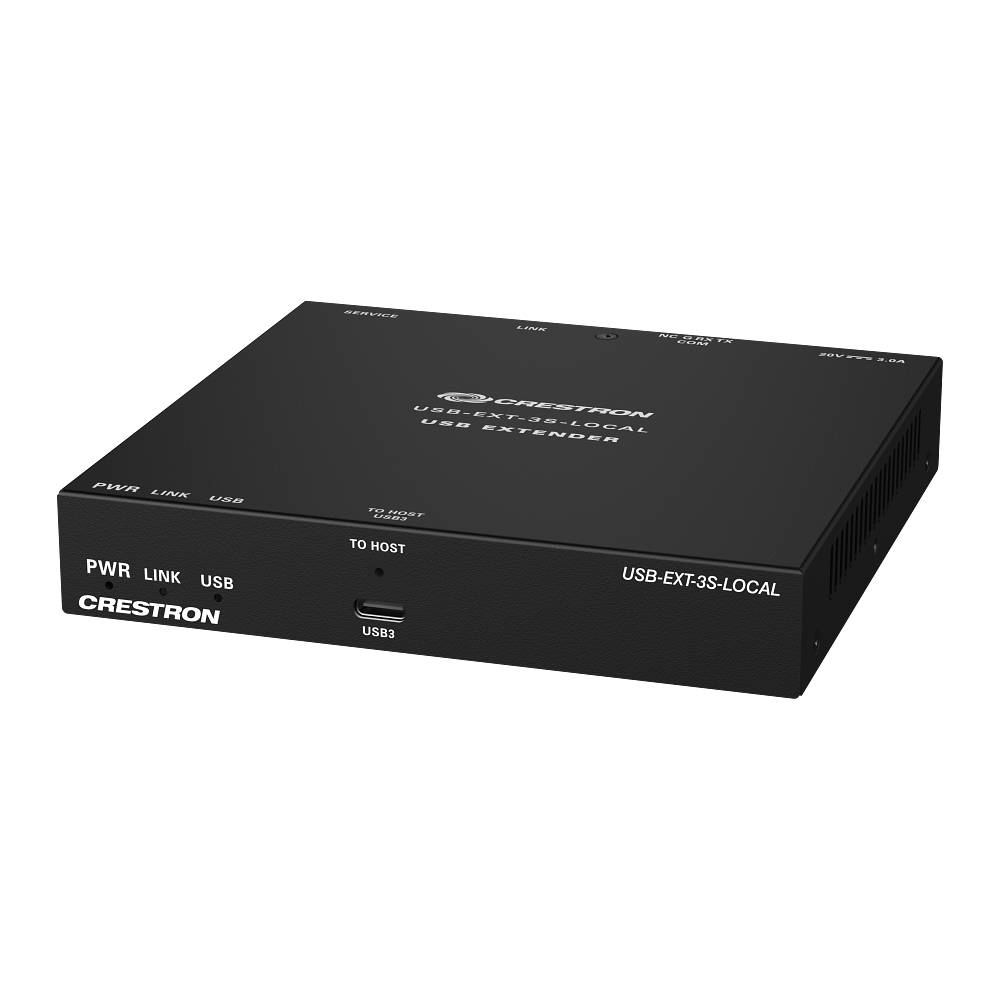

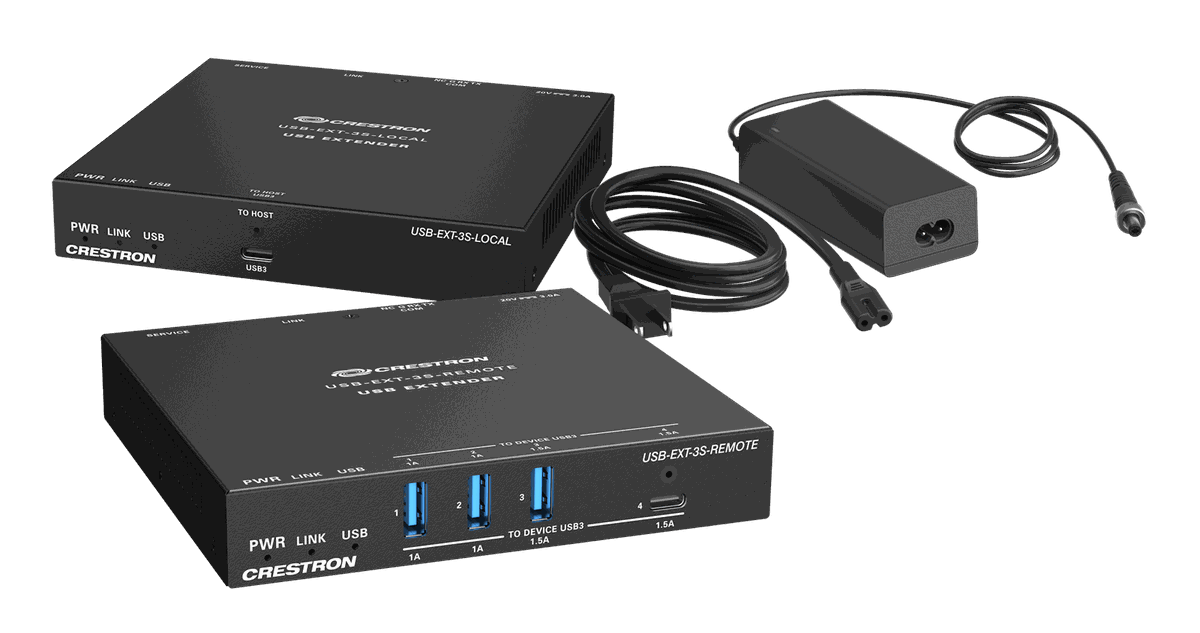

Crestron USB-EXT-3S USB 3.2 Extender over CAT6a/7 Cable

The USB-EXT-3S extends USB 3.2 Gen 1, 2.0, and 1.1 devices up to 330 ft point to point over a single CAT6a or CAT7 shielded twisted pair run, and it does it with a USB Type-C host connection rather than a Type-B, which is what most current laptops and room devices actually present. The link occupies a single USB tier.

A bidirectional RS-232 pass-through rides on the same cable at up to 115.2k baud on a 4-pin 3.5 mm terminal block, which saves a second run when the far end also needs serial control. Endpoints are metal with vented sides, 0.89 in. by 5.12 in. by 4.90 in., freestanding or surface mountable, and are also available in a 1-gang form. Green PWR and LINK LEDs report power source and link state; a remote endpoint can take power over the link connection, in which case less than 17.5 W is available to peripherals.

USB Speeds	USB 3.2 Gen 1 up to 5 Gbps, USB 2.0 up to 480 Mbps, USB 1.1 up to 12 Mbps
Reach	Up to 330 ft (100 m) over CAT6a/CAT7 or better shielded twisted pair, single USB tier

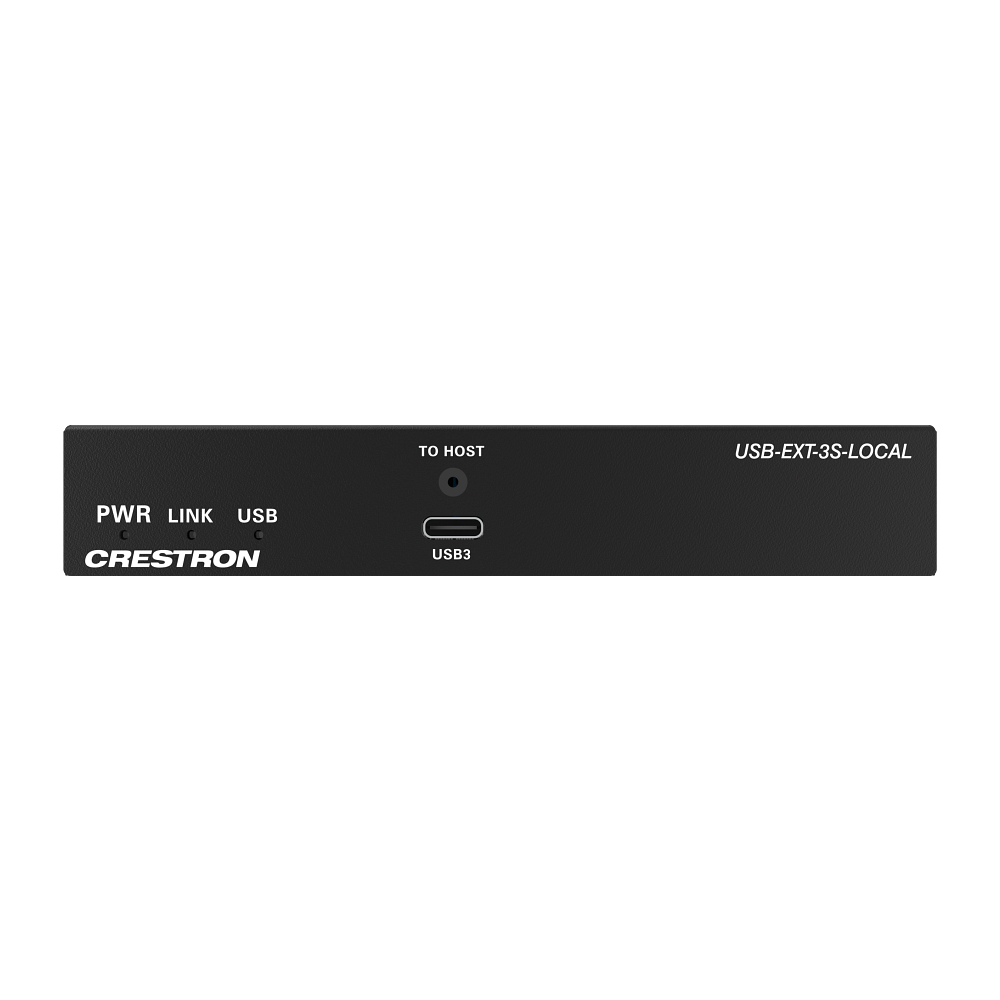

Host Connector	(1) USB Type-C, female, USB 3.2 Gen 1 host port, backward compatible

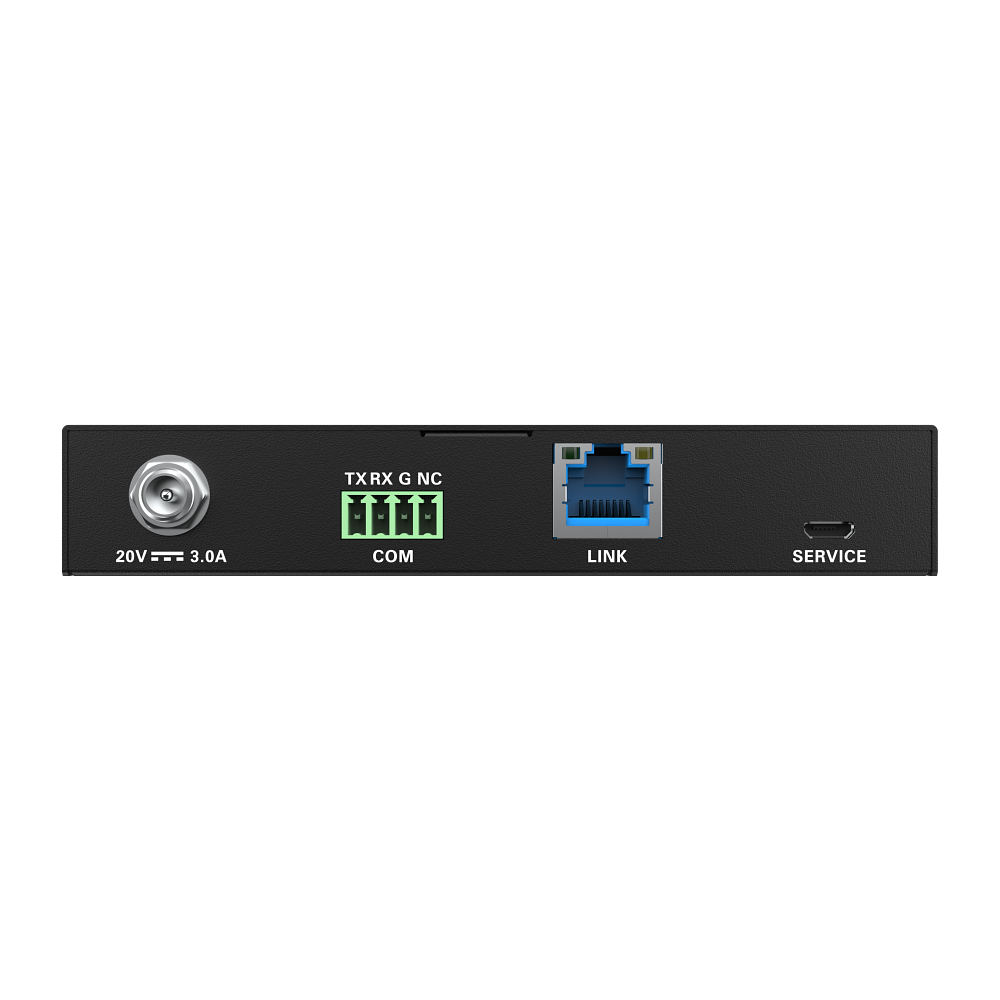

Serial	(1) 4-pin 3.5 mm detachable terminal block, bidirectional RS-232 up to 115.2k baud

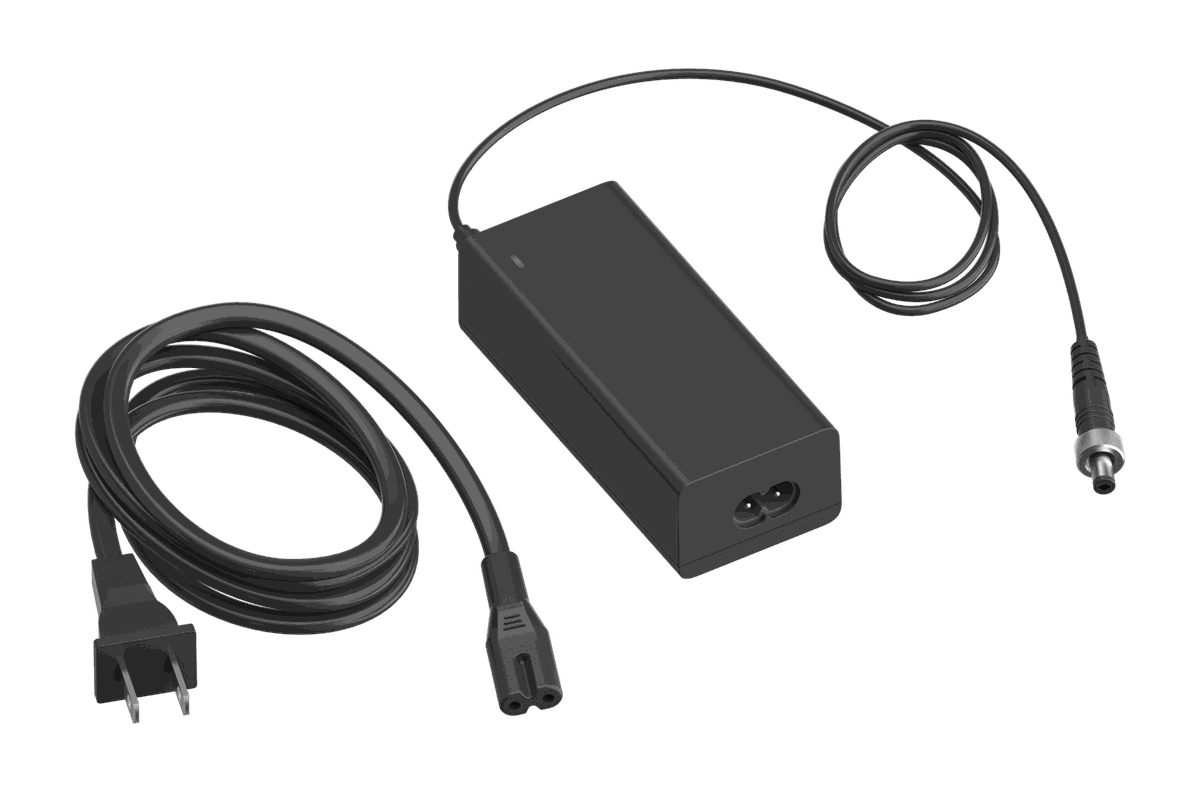

Power	20 VDC locking connector, PW-2030DU power supply, 31.28 W total between local and remote
Indicators	PWR and LINK green LEDs
Construction	Metal, black finish, vented sides, freestanding or surface mountable
Dimensions	0.89 in. H x 5.12 in. W x 4.90 in. D (23 x 130 x 125 mm), 12.32 oz (350 g)
