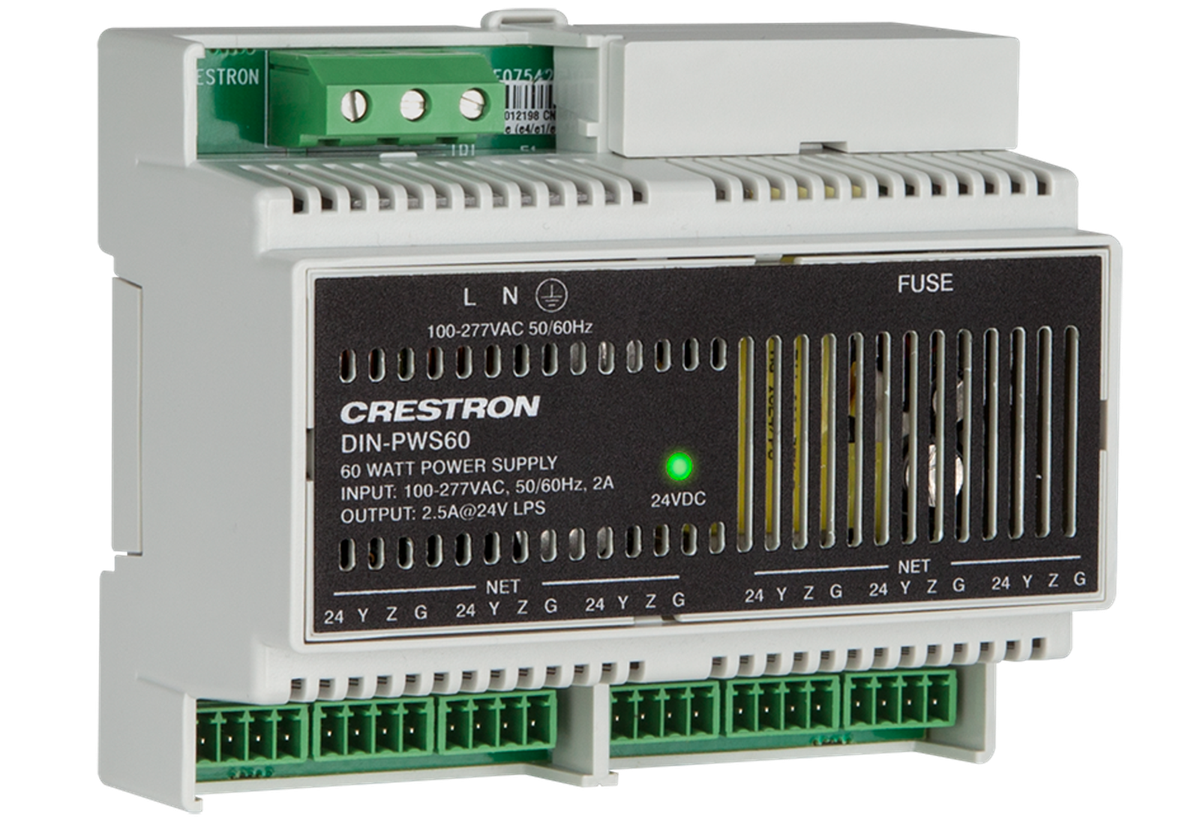

Crestron DIN-PWS60 DIN Rail 60 Watt Cresnet Power Supply

The Crestron DIN-PWS60 is a DIN Rail 60 Watt Cresnet Power Supply. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.

Power consumption is 70 Watts at full rated output. NET: (6) 4-pin 3.5 mm detachable terminal blocks, paralleled; Cresnet power output ports with data pass-through; Maximum Wire Size: 14 AWG (1.5 mm2). Heat Dissipation: 26 BTU/hr. Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
