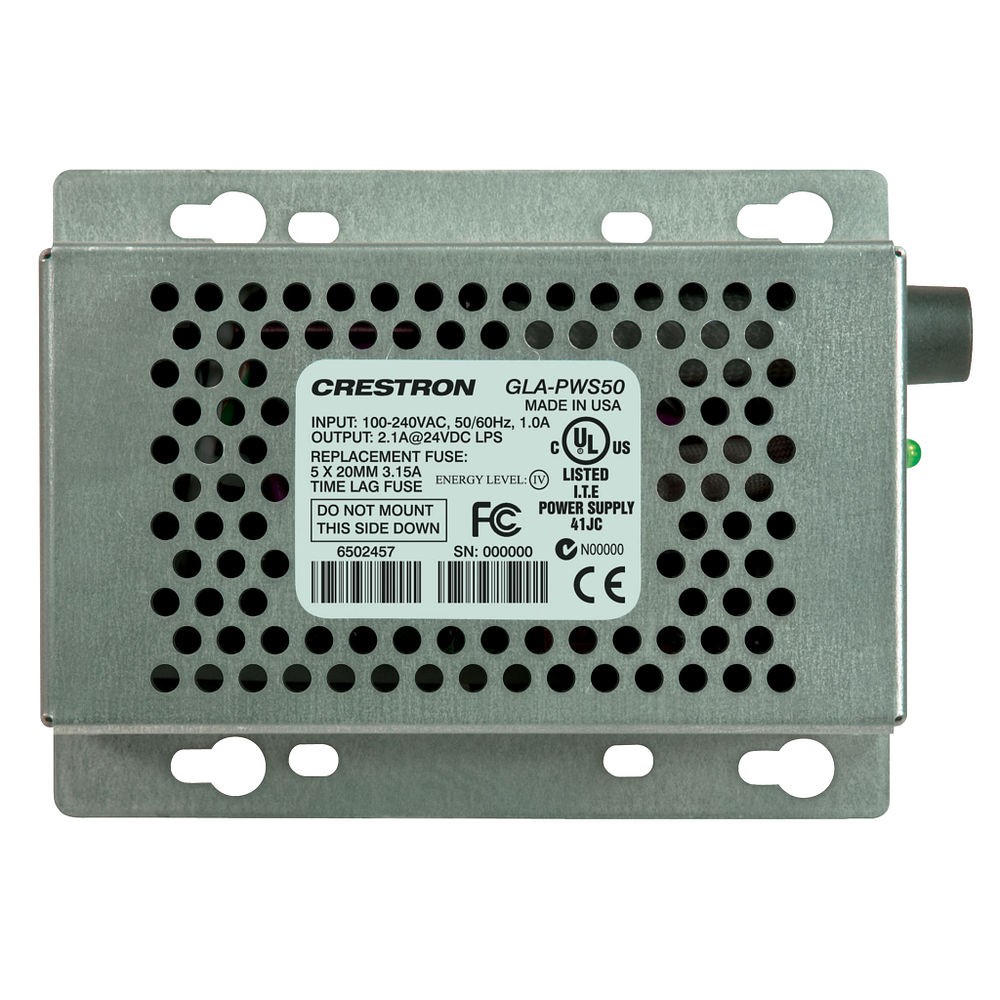

Crestron GLA-PWS50 50 W Cresnet Power Supply

The GLA-PWS50 supplies 50 watts to a Cresnet network. It was built for Crestron Green Light lighting systems but suits anywhere a wall-mounted Cresnet supply is wanted, and it mounts over a 4 in. square or 2-gang electrical box rather than needing its own enclosure.

All connections are made inside the box on flying leads with twist-on wire connectors. A partition is supplied to separate the line-voltage wiring from the Class 2 Cresnet run inside the same box, which is what keeps the install to code without a second box.

Dimensions4.00 in (10.16 cm) H x 5.55 in (14.09 cm) W x 2.27 in (5.76 cm) without partition D
Output Power50 Watts (2.1 Amps) @ 24 Volts DC, regulated, limited power source
Ripple/Noise<1%
Line Power1 Amp @ 100-240 Volts AC, 50/60 Hz
24VDC(1) green LED, indicates 24 Volts DC output, extinguishes when fuse is blown
Temperature32 deg to 104 deg F (0 deg to 40 deg C)
EnclosureMetal construction, mounts to a 4-inch square or 2-gang electrical box, includes low-voltage partition
Weight1.2 lb (0.54 kg)
