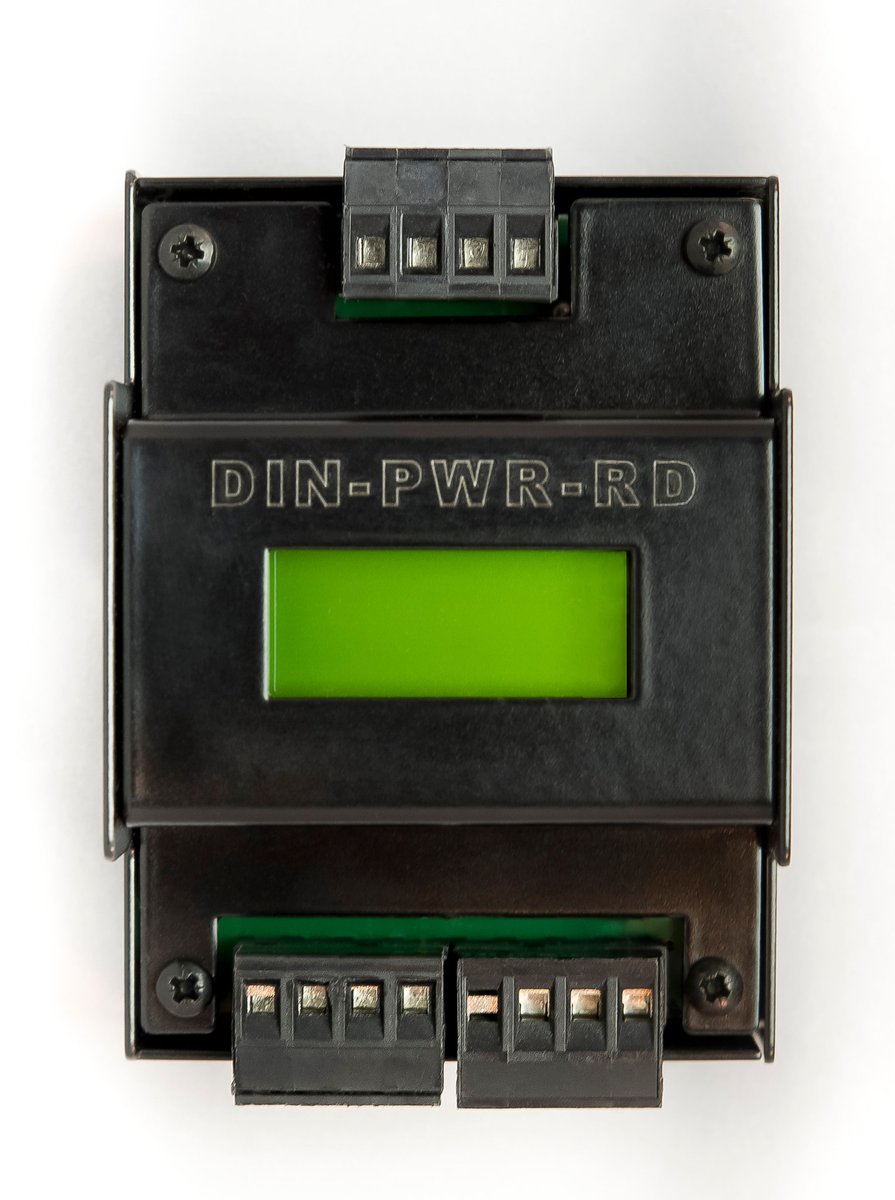

Crestron DIN-PWR-RD DIN Rail Redundancy Module
The Crestron DIN-PWR-RD is a DIN Rail Redundancy Module. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.
Temperature: 32 deg to 104 deg F (0 deg to 40 deg C). Output + Relay: (1) 4-pin 5mm detachable terminal block. Input: (2) 4-pin 5mm detachable terminal blocks. Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
| Temperature | 32 deg to 104 deg F (0 deg to 40 deg C) |
|---|---|
| Output + Relay | (1) 4-pin 5mm detachable terminal block |
| Input | (2) 4-pin 5mm detachable terminal blocks |
| LCD Display | Voltage Indication on 2 inputs; Output power consumption |
| Power Usage | 0.9W (@24DC) |
| Voltage Rating | 24V |
| Pass Through Current Rating | 5 Amp |
| Height | 3.46 in. (88 mm) |
