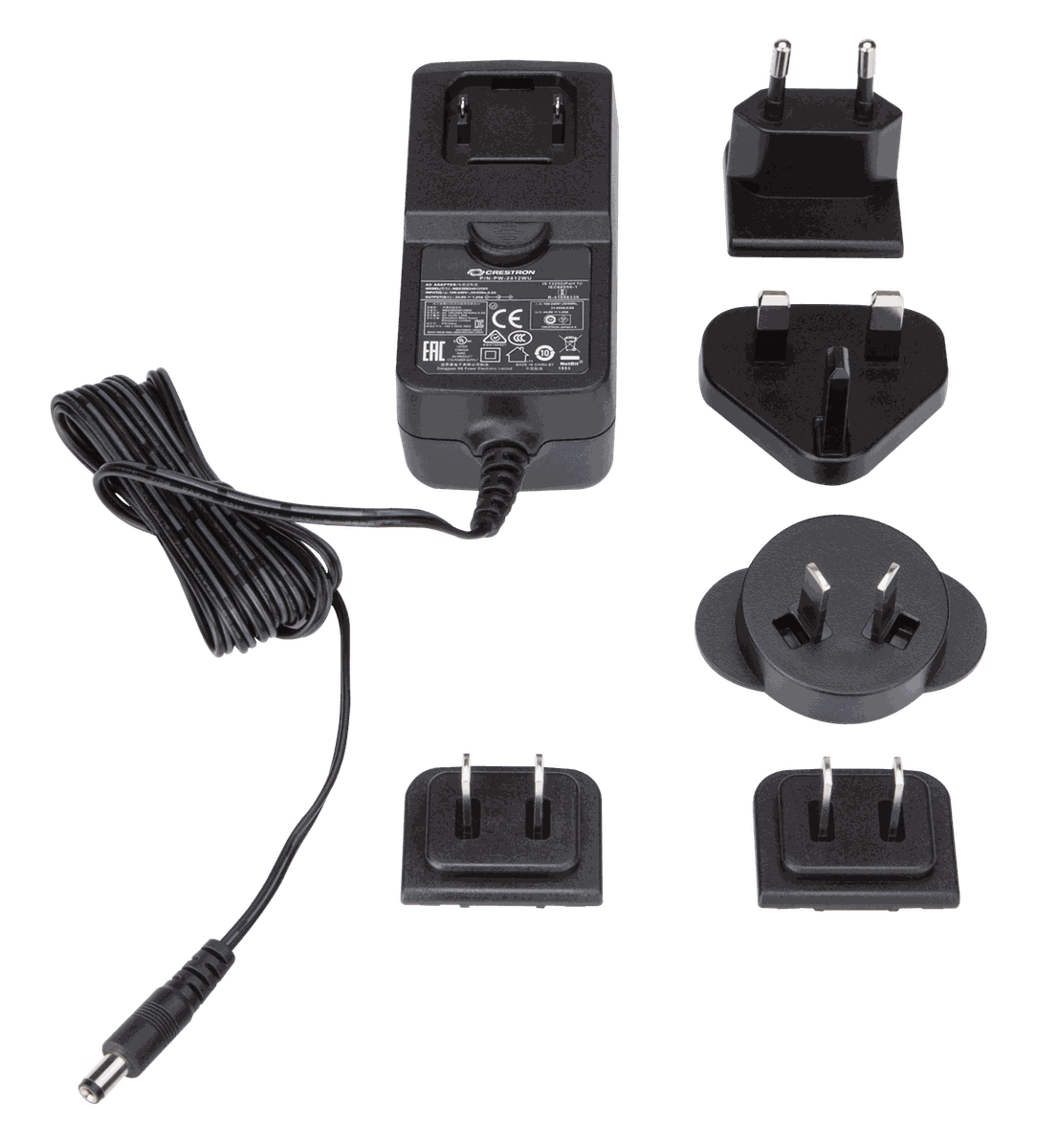

Crestron PW-2412WU Wall Mount Power Pack, 24VDC 1.25A

Same shape as the PW-2407WU and a heavier rail: the PW-2412WU is regulated at 24VDC and 1.25 amps, for Crestron devices whose spec sheet asks for more than 0.75 A at 24 volts. It plugs directly into the outlet and includes the universal blade kit.

The attached load cable ends in a 2.1 x 5.5 mm DC power barrel. Input is 100-240 VAC at 50/60 Hz, the body is outlet-mountable black plastic, and it is rated for indoor use.

Output Rating24 VDC, 1.25 Amps, regulated
Power Requirements0.8 Amps (maximum) @ 100-240 VAC, 50/60 Hz
Connections - Line(1) Ungrounded AC power plug, line power input
Connections - Load(1) 6 ft (1.83 m) attached cable with 2.1 x 5.5 mm DC power barrel connector
Environmental - Temperature41 to 104 F (5 to 40 C)
Environmental - Humidity10% to 90% RH (non-condensing)
ConstructionPlastic, black, outlet-mountable
ComplianceCE, UL Listed for US & Canada
