Crestron PSU-MIDSPAN-USB-1 Single Channel Midspan USB Power Injector

A long USB-C run to a camera bar or a table puck loses power budget before it loses data. The PSU-MIDSPAN-USB-1 sits midspan and puts the power back: up to 100 W of Standard Power Range into the host side, with USB 3.2 Gen2 at 10 Gbps, USB 2.0 High Speed, and DisplayPort Alternate Mode video all passing through untouched. DP Alt Mode runs to 4K30 in mixed mode and 4K60 in full mode.

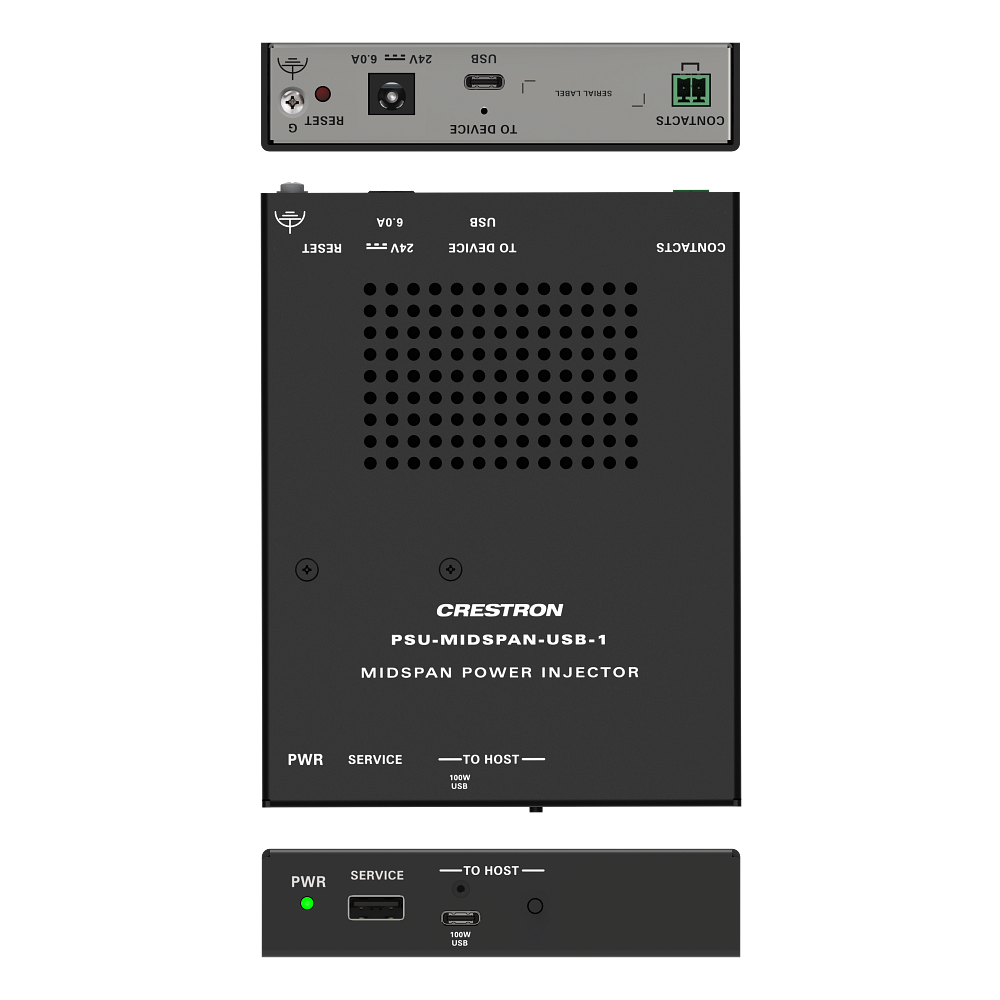

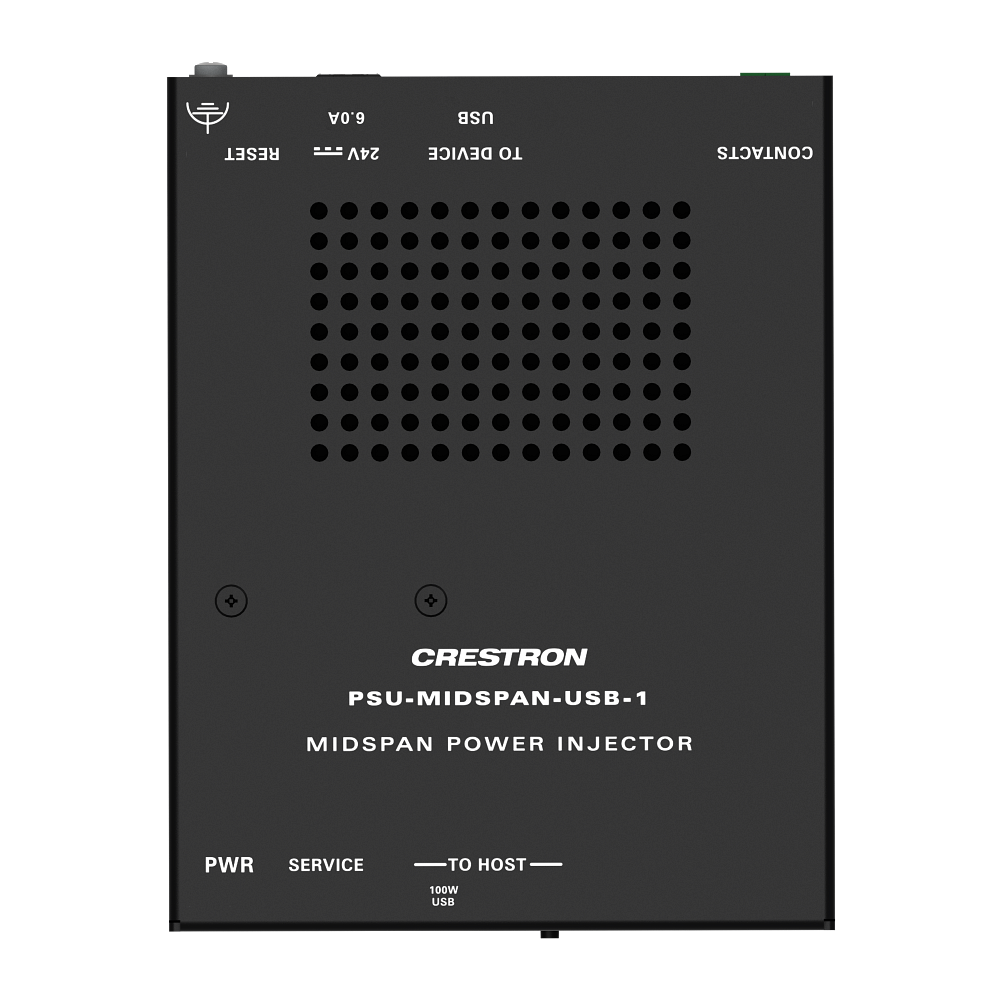

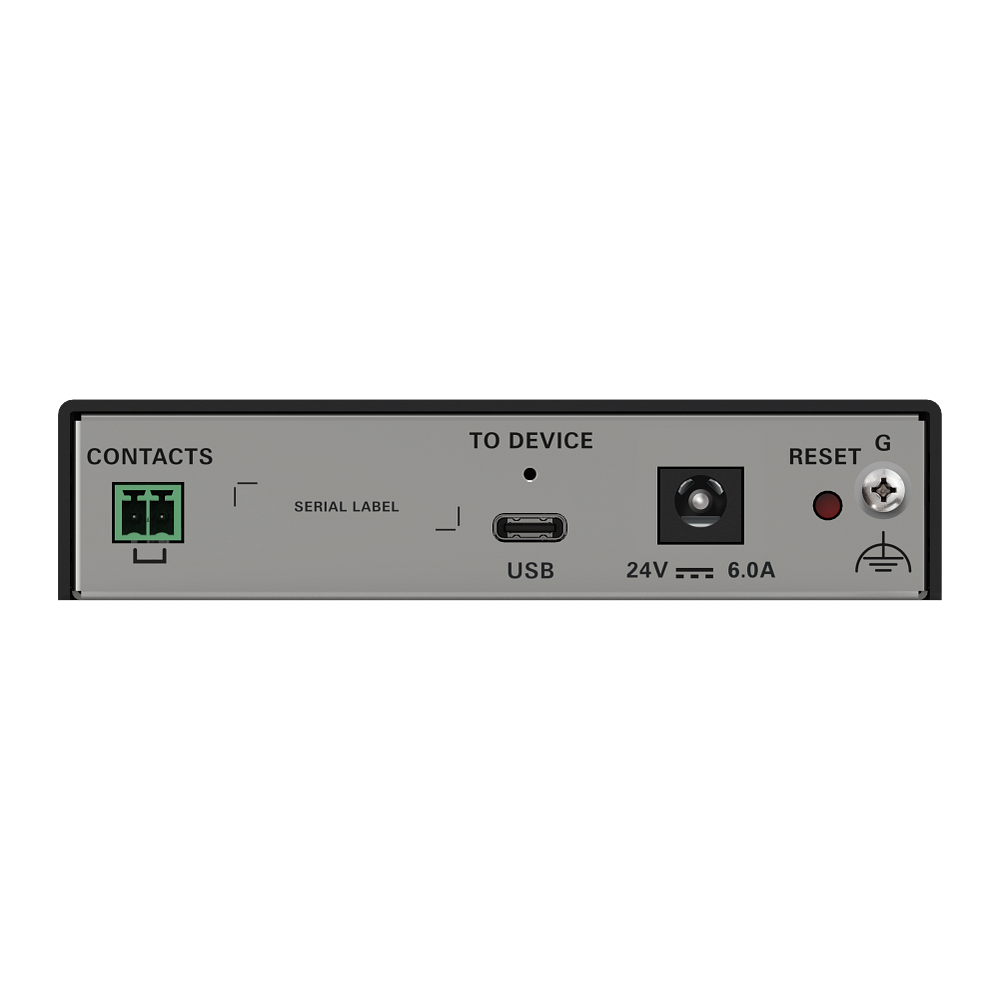

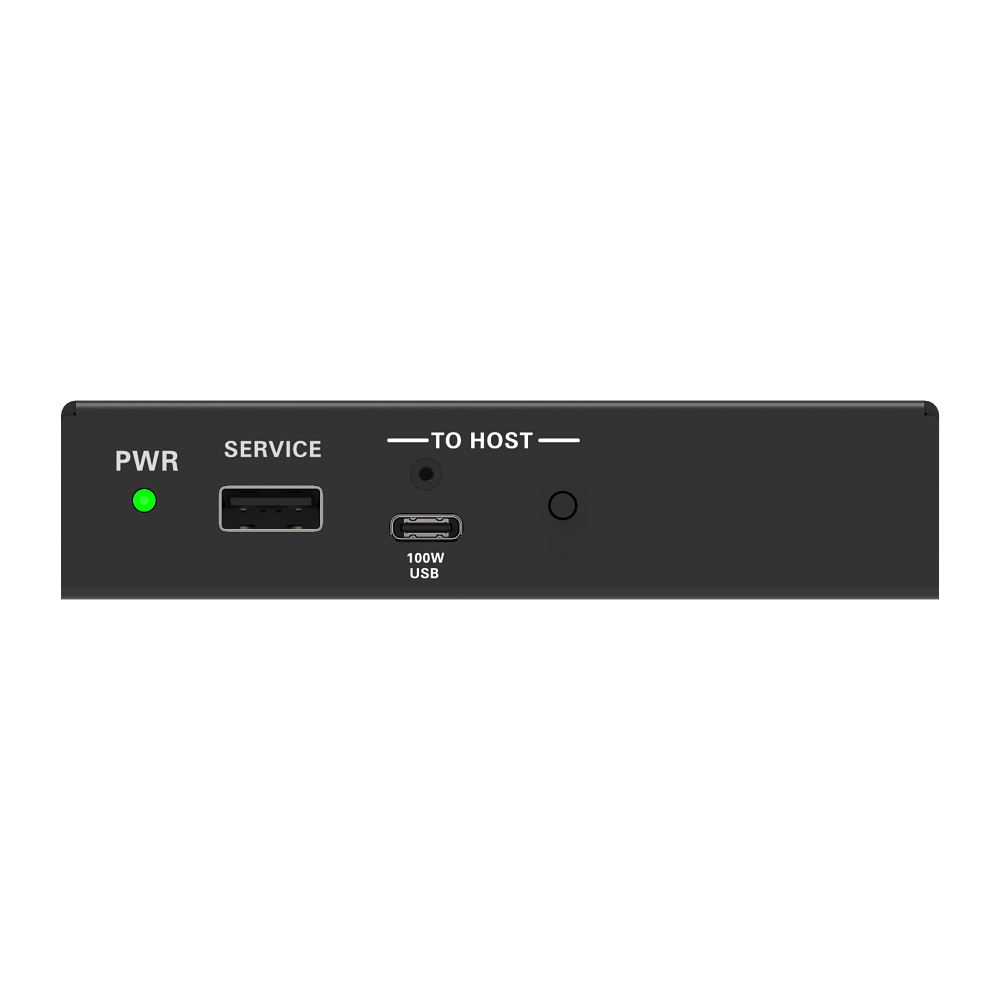

The chassis is metal with a ventilated top, and it can stand free, bolt to a wall or table with the included bracket, or attach inside a Crestron FlipTop enclosure. A 2-pin contact closure, a service USB-A port for firmware, a recessed reset, and a two-color status LED are on board. The included PW-2460DU pack supplies 24VDC at 6 A. The -C KIT adds the USB-C cables.

Connectors - TO HOST 1(1) USB Type-C connector, female; Digital video/audio input using DP Alt Mode; 2 USB 3.2 Gen2 data support (USB 2.0 High Speed 480 Mbps is also supported); Fixed SPR power injection up to 100 W (Standard Power Range)
Connectors - TO DEVICE(1) USB Type-C connector, female; Digital video/audio output using DP Alt Mode; USB 3.2 Gen2 data support (USB 2.0 High Speed 480 Mbps is also supported); Power 5V, 7.5 W
Video - Maximum Resolutions (DP ALT Mode Video)DP Alt Mode mixed: Up to 4k30 (v1.4 / HBR2 max); DP Alt Mode full: Up to 5120x2160 @30 Hz (5K Ultra-Wide) or 5120x1440 @60 Hz (5K Super-Wide)
Power - Power Pack (Included)Input: 100-240VAC Output: 24VDC 6A Model: PW-2460DU
Construction - MountingFreestanding, wall or table surface mount (with included mounting bracket), or attach to a Crestron FlipTop cable enclosure
Dimensions - Depth5.75 in. (146 mm)
Weight13 oz (400 g)
ComplianceRegulatory Model: M202228002 FCC Part 15 Class B, IC Class B, CE, UL Listed for US and Canada/Intertek Listed for US and Canada
