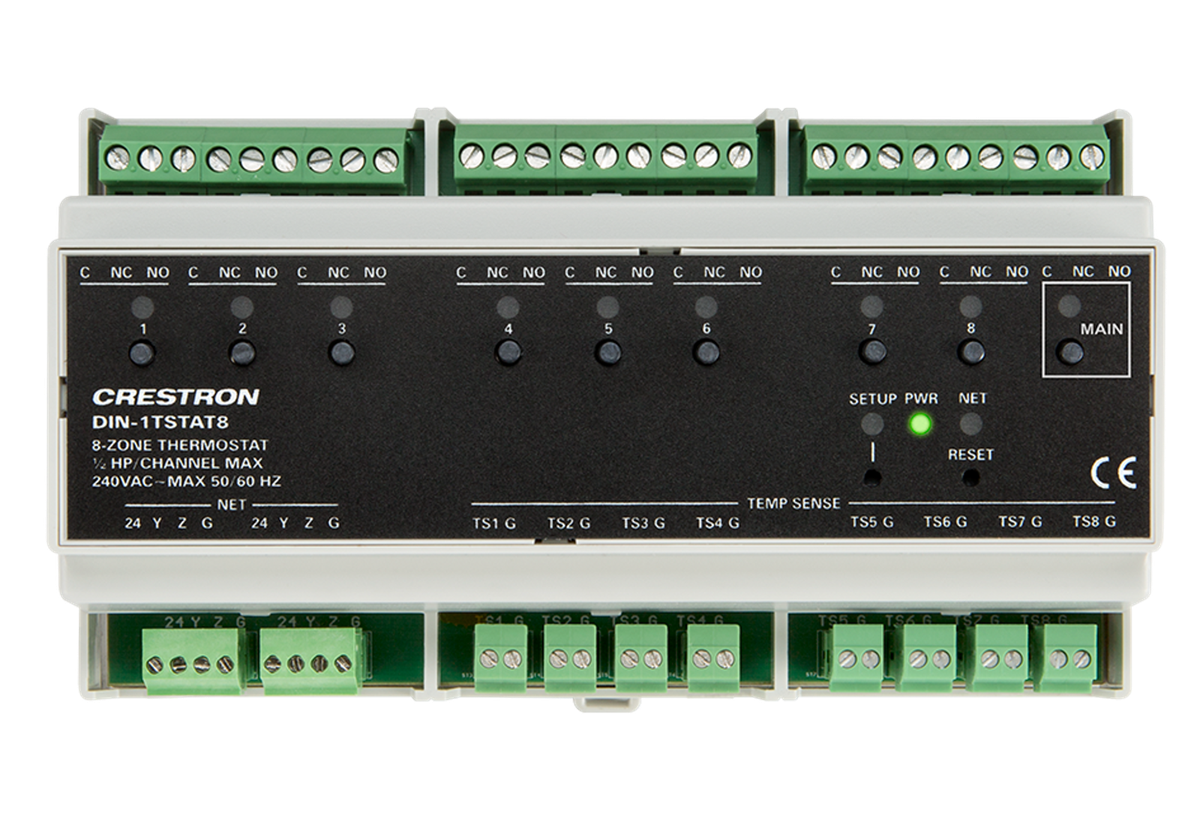

Crestron DIN-1TSTAT8 8-Zone Radiant Heat Thermostat, DIN Rail Mount

The Crestron DIN-1TSTAT8 is an 8-Zone Radiant Heat Thermostat, DIN Rail Mount. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.

Power consumption is <6 Watts. Cresnet: Cresnet slave mode. Cresnet Power Usage: 6 Watts (250 mA @ 24 Volts DC). Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.

Power Consumption	<6 Watts
Cresnet	Cresnet slave mode
Cresnet Power Usage	6 Watts (250 mA @ 24 Volts DC)
NET	(2) 4-pin detachable terminal blocks; Cresnet slave port with hardwire parallel pass-through
Mounting	35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 9 DIN module spaces (162 mm)
Housing	Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated
Heat Dissipation	20 BTU/hr maximum
Temperature	-18 deg to 43 deg C (0 deg to 110 deg F)
