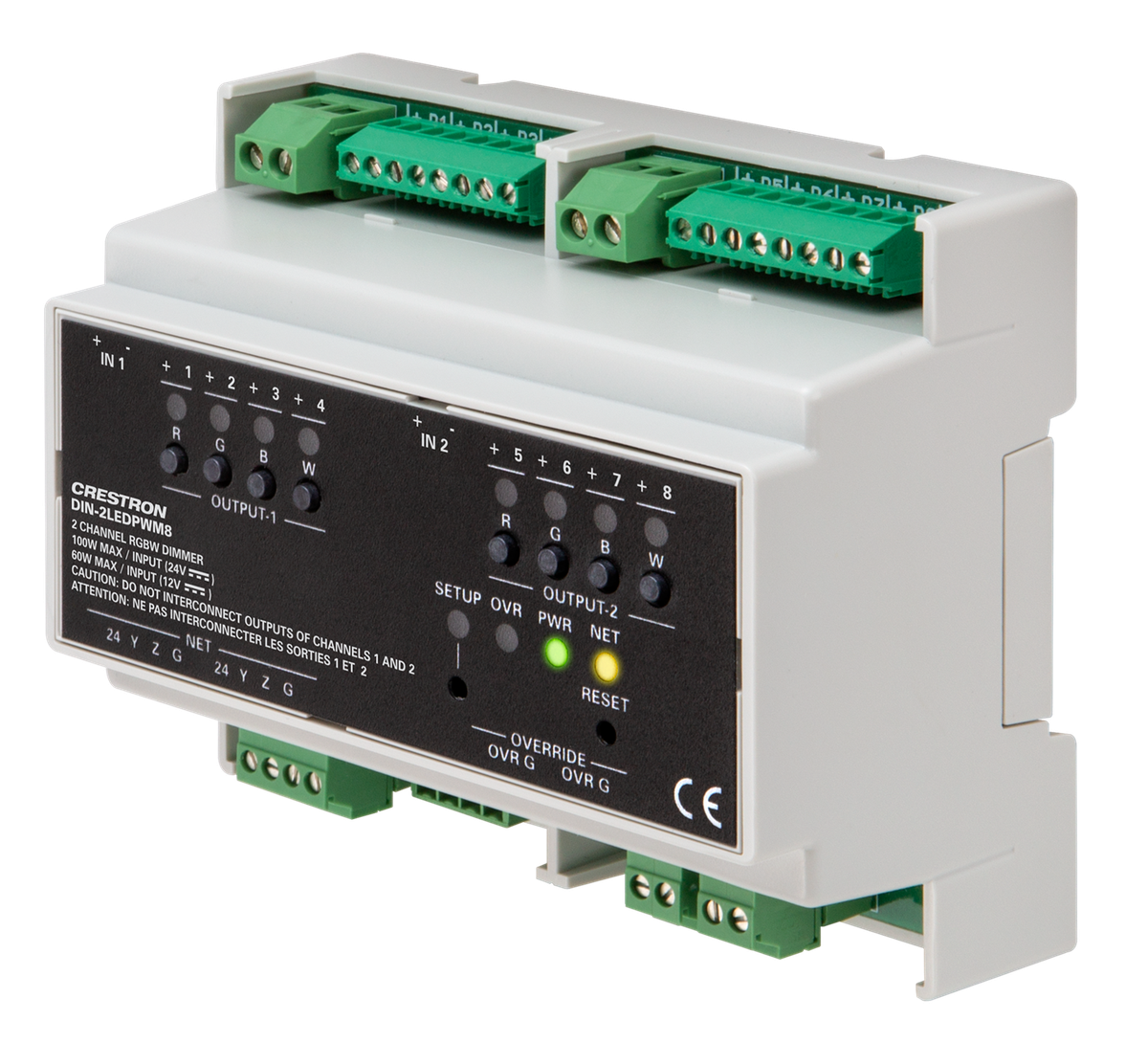

Crestron DIN-2LEDPWM8 2 Channel RGBW LED Dimmer, DIN Rail Mount

The Crestron DIN-2LEDPWM8 is a 2 Channel RGBW LED Dimmer, DIN Rail Mount. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.

Supported load types are 12 - 24VDC PWM controlled anode RGBW or single color LEDs and LED strips. Cresnet: Cresnet secondary mode. Mounting: 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 6 DIN module spaces (108 mm). Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
