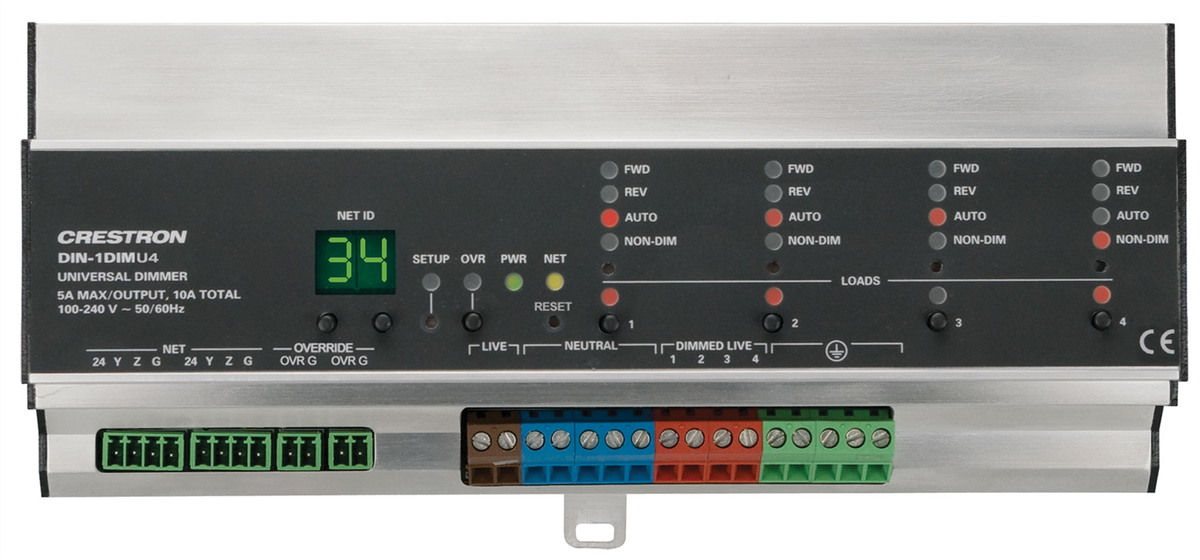

Crestron DIN-1DIMU4 4 Channel Universal Dimmer, 1 Feed, DIN Rail Mount

The Crestron DIN-1DIMU4 is a 4 Channel Universal Dimmer, 1 Feed, DIN Rail Mount. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.

Each channel handles 5A @ 120 to 240VAC, 50/60 Hz; 600 W @ 120VAC; 1150 W @ 230VAC; 1200 W @ 240VAC. It runs on 120 - 240VAC, 50/60Hz. Cresnet: Cresnet secondary mode. Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.

Line Power	120 - 240VAC, 50/60Hz
Load Types	Forward Phase (leading edge) or Reverse Phase (trailing edge) Electronic Low Voltage, Incandescent, Neon/Cold Cathode, Magnetic Low Voltage, Dimmable 2-Wire Fluorescent, and Non-Dim Lighting
Maximum Per Channel	5A @ 120 to 240VAC, 50/60 Hz; 600 W @ 120VAC; 1150 W @ 230VAC; 1200 W @ 240VAC
Module Total	10A @ 120 to 240VAC, 50/60 Hz; 1200 W @ 120VAC; 2300 W @ 230VAC; 2400 W @ 240VAC
Cresnet	Cresnet secondary mode
NET	(2) 4-pin 3.5 mm detachable terminal blocks, paralleled; Uses 0.6 W (0.03A @ 24VDC) when line power is not available; Cresnet secondary port
Heat Dissipation	60 BTU/hr @ 240V with 2 channels at 5A 50 BTU/hr @ 120V with 2 channels at 5A
Temperature	32 deg to 104 degF (0 deg to 40 degC)
