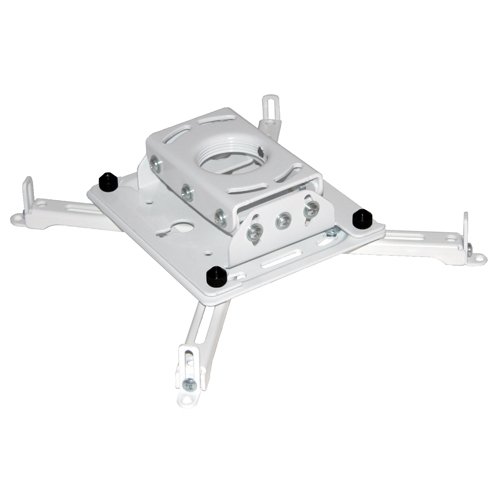

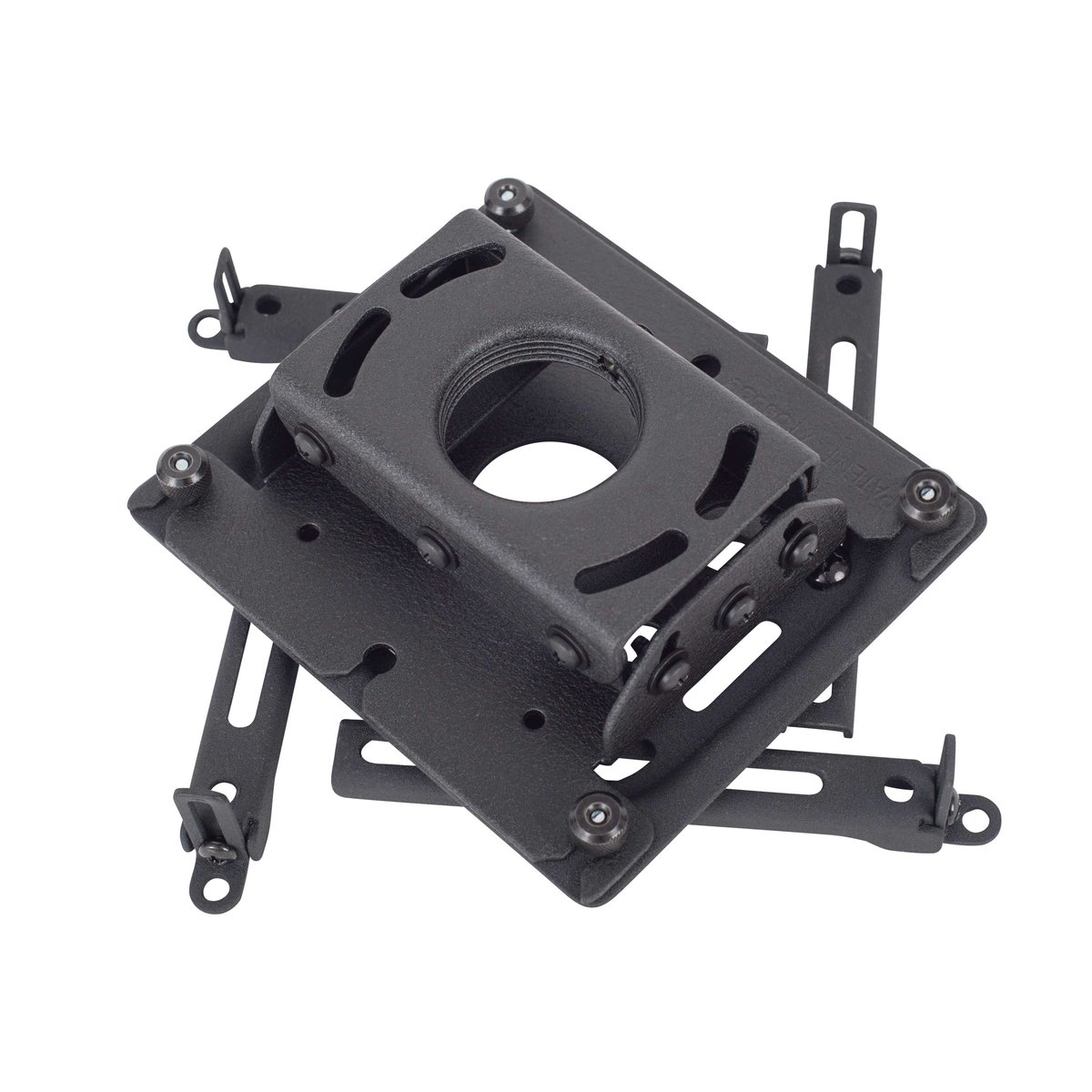

Chief RPAO Universal Projector Mount, 1st Generation Interface
The RPAO is Chief's first-generation low-profile universal projector mount, and it earns its place in a van or a stockroom: adjustable mounting legs and feet move horizontally and vertically, so it goes onto a projector nobody told you about in advance.
Registration uses independent roll, pitch and yaw. Quick connect and disconnect lets the projector come down for lamp and filter service and go back on preset without losing the alignment. All-Points Security uses steel-into-steel locking hardware at each key connection point. It flush mounts, hangs on quarter-inch threaded rods, or takes a 1.5 inch NPT extension column, with integrated cable management. Solid steel, rated to 50 lb, TAA compliant and UL Listed. Black (RPAO) or white (RPAOW) at the same price.
| Weight capacity | 50 lb (22.7 kg) |
|---|---|
| Adjustability | Independent roll, pitch and yaw; adjustable legs and feet, horizontal and vertical |
| Interface type | Universal (1st generation interface technology) |
| Installation options | Flush to ceiling, 0.25 in threaded rods, or 1.5 in NPT extension column |
| Security | All-Points Security steel-into-steel locking hardware |
| Cable management | Integrated |
| Construction | Solid steel, black or white |
| Compliance | TAA compliant; UL Listed |
