Chief CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit

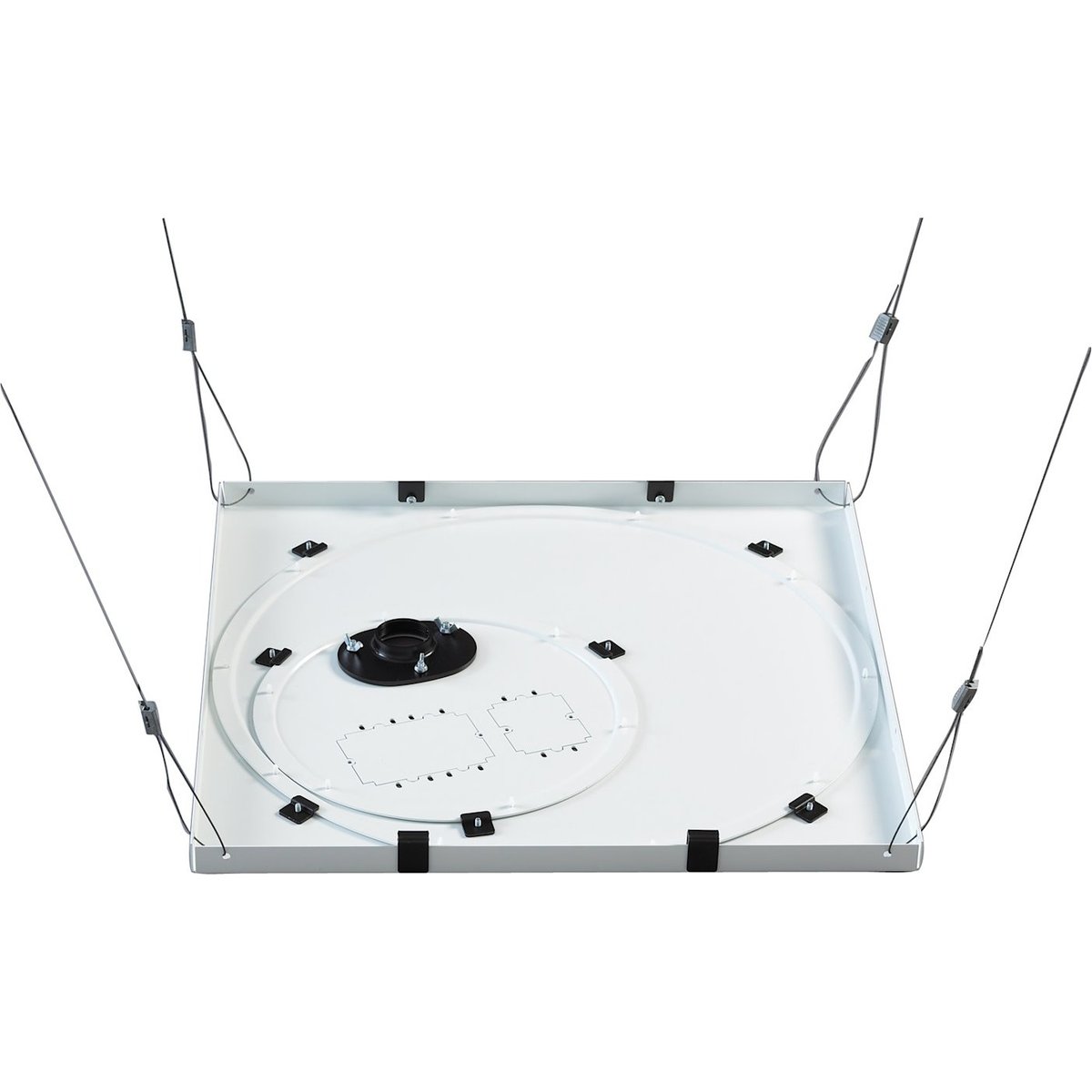

Suspended ceilings will not carry a projector, so this kit replaces the tile with a plate that will. The CMS445 takes the place of a 2 x 2 ft tile, clamps to the ceiling track, and transfers the load into the structure above through four turnbuckles and strand wire.
Everything needed comes in the box: a 10 ft safety cable, 20 ft of strand wire, four turnbuckles, wood eye bolts, concrete anchors, two outlet knockouts and a chrome ring. Assembly is minimal. Total capacity is 50 lb including the column, the mount and the projector - so budget for all three, not just the projector. It also fits 600 x 600 mm and 600 x 1200 mm tile in Europe, Canada and Mexico. White, UL Listed.
| Ceiling tile size | 2 x 2 ft (60.33 x 60.33 cm); also fits 600 x 600 and 600 x 1200 mm tile |
|---|---|
| Weight capacity | 50 lb (22.7 kg) total, including column, mount and projector |
| Installation type | Tile replacement, above-tile mounting |
| Ceiling plate type | Speed-Connect |
| Included | 10 ft safety cable, 20 ft strand wire, four turnbuckles, wood eye bolts, concrete anchors, chrome ring |
| Outlet provision | Two outlet knockouts |
| Overall dimensions | 1.1 x 23.6 x 23.6 in (29 x 600 x 600 mm) |
| Certification | UL Listed; white |
