Chief CMS Adjustable Extension Column, 1.5 in NPT

Name: Chief CMS Adjustable Extension Column, 1.5 in NPT
Brand: Chief
SKU: CMS006009
Availability: InStock

$78.40

CMS006009

Choose an option

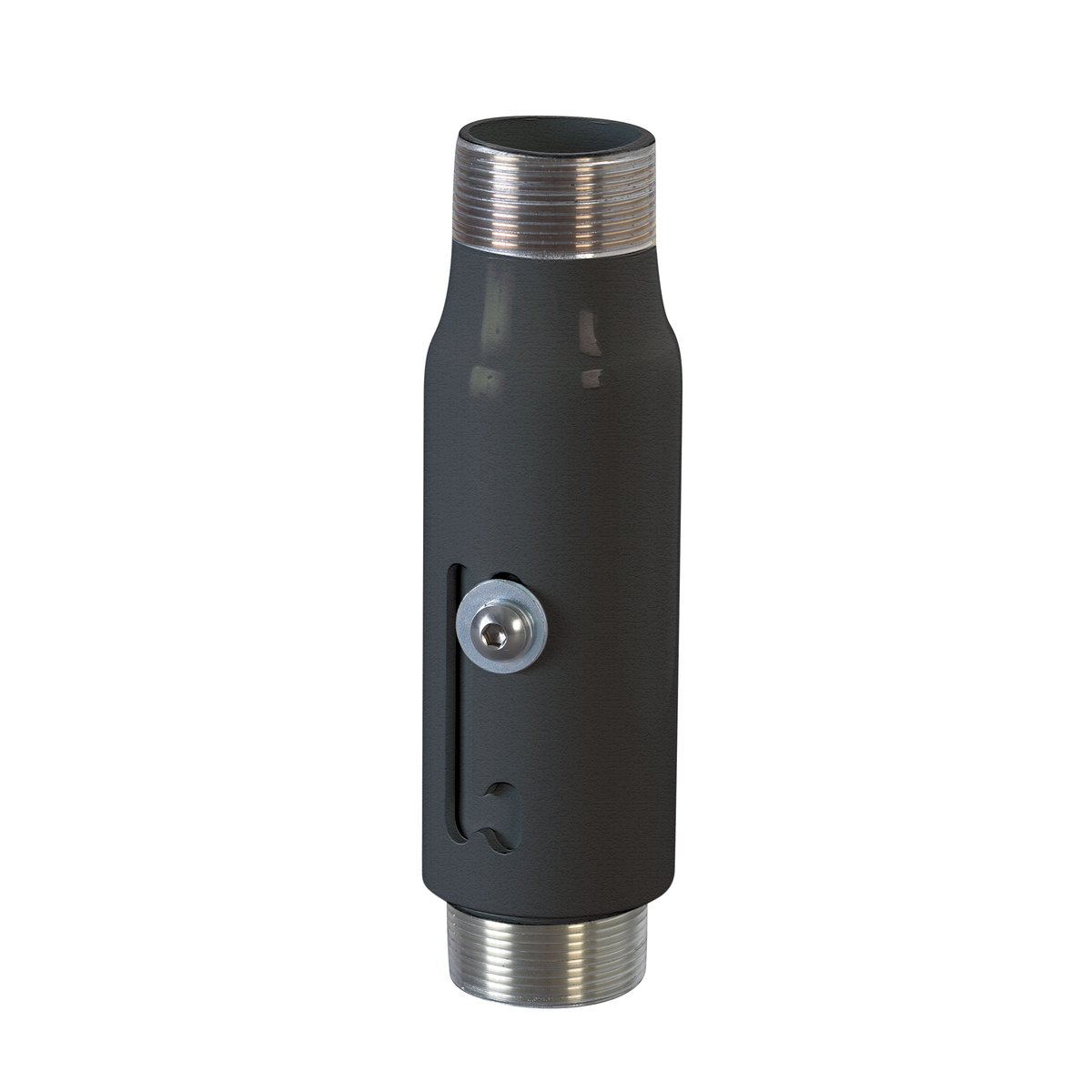

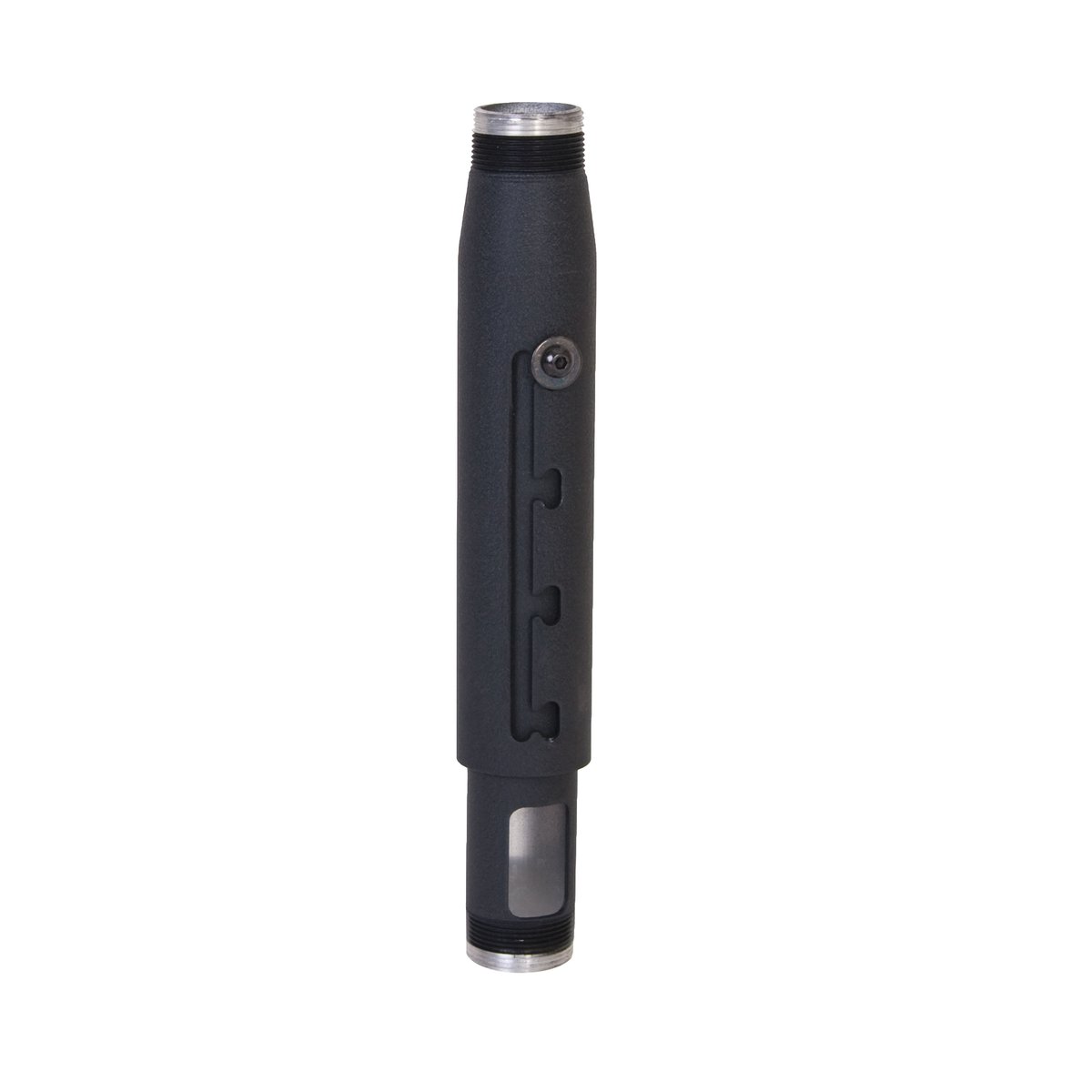

Notched 1.5 in NPT drop column, adjustable in 1 inch steps, 500 lb capacity.

The drop between a ceiling plate and a projector or display mount is never known exactly until the ceiling is open. Chief's CMS adjustable columns handle that: the column is notched so it can be set in 1 inch increments without being taken apart, and a set screw locks it once the height is right.

Each column is 1.5 inch NPT, threaded on both ends, so it pairs with any Chief 1.5 inch NPT ceiling plate, coupler or mount. Capacity is 500 lb, which is far beyond any projector - the column is not the limiting part of the assembly. Available in black or white at the same price. TAA compliant, UL Listed. Pick the range that brackets your required drop.

Type	1.5 in NPT extension column, threaded both ends
Adjustment	1 in increments, notched design - no disassembly required
Locking	Set screw included
Weight capacity	500 lb (226.8 kg)
Column diameter	2.3 in (5.8 cm)
Range	6 in (152 mm) to 12 ft, in 13 overlapping lengths
Compatibility	Any Chief 1.5 in NPT ceiling plate or accessory

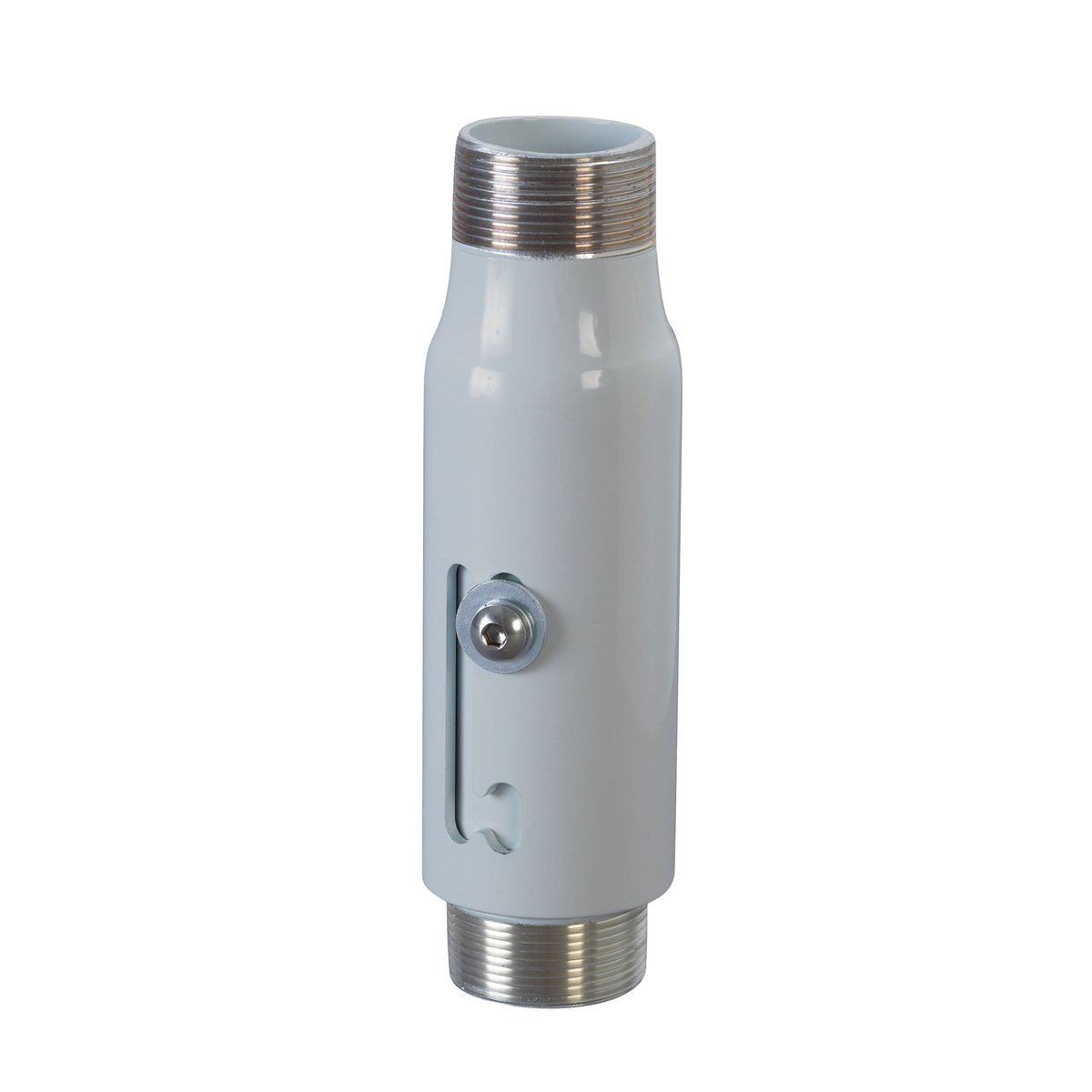

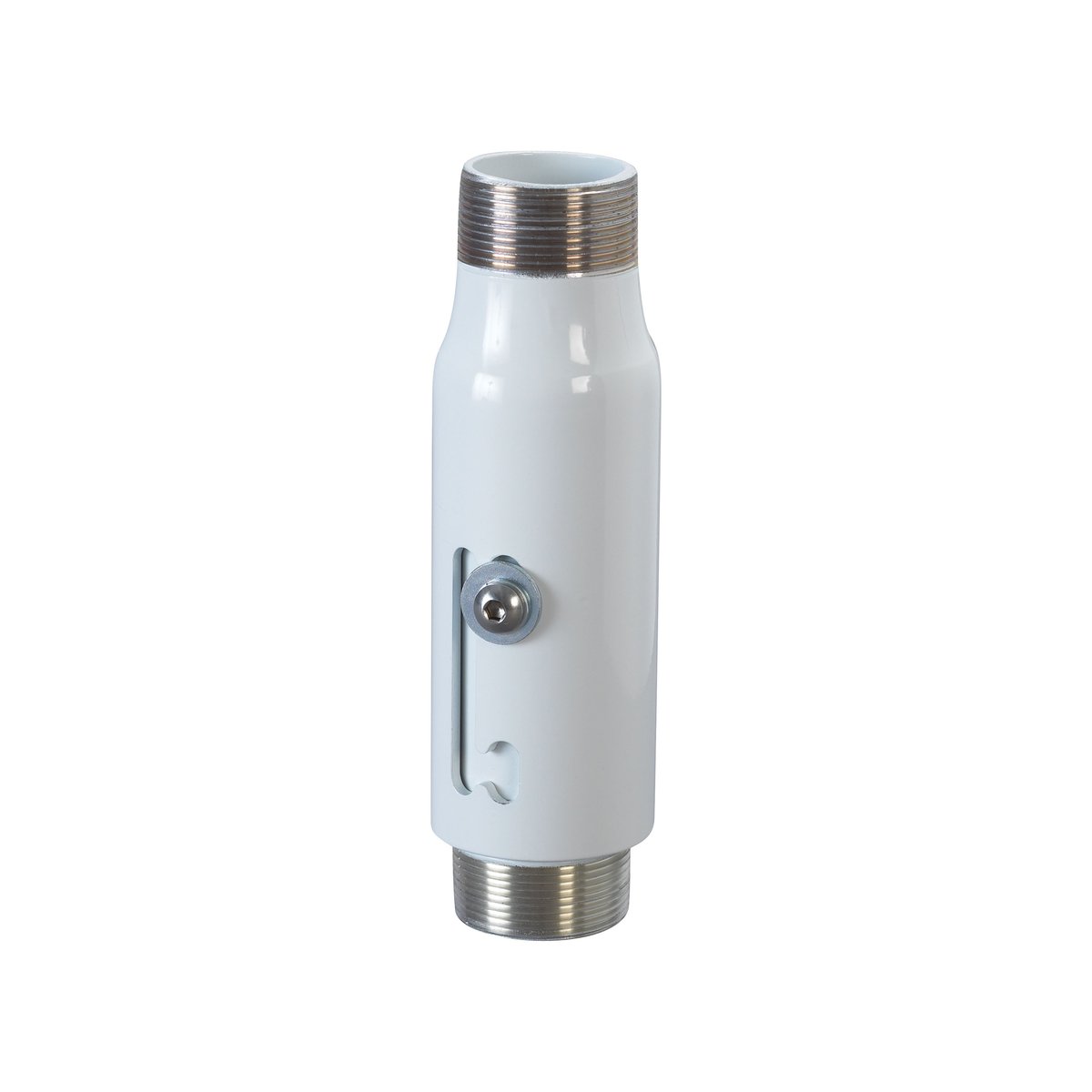

Colour	Black or white
Compliance	TAA compliant; UL Listed
