Chief CMS445N Speed-Connect Suspended Ceiling Tile Replacement Kit with Power Outlet Housing
The same Speed-Connect tile-replacement plate as the CMS445, with a housing for the power outlet built in - which is what turns a projector drop into a single tidy penetration instead of a plate plus a separate box hunted up above the ceiling.

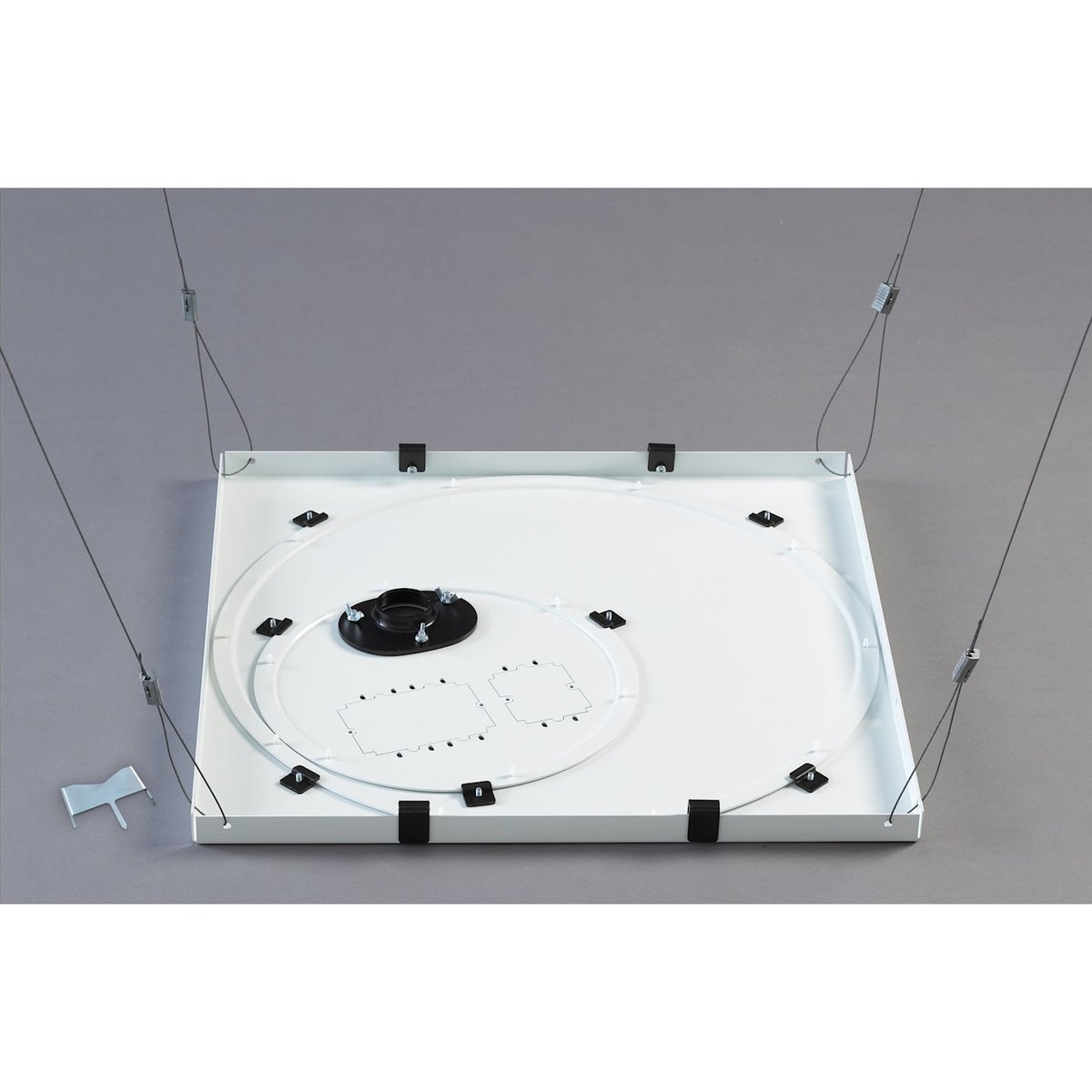

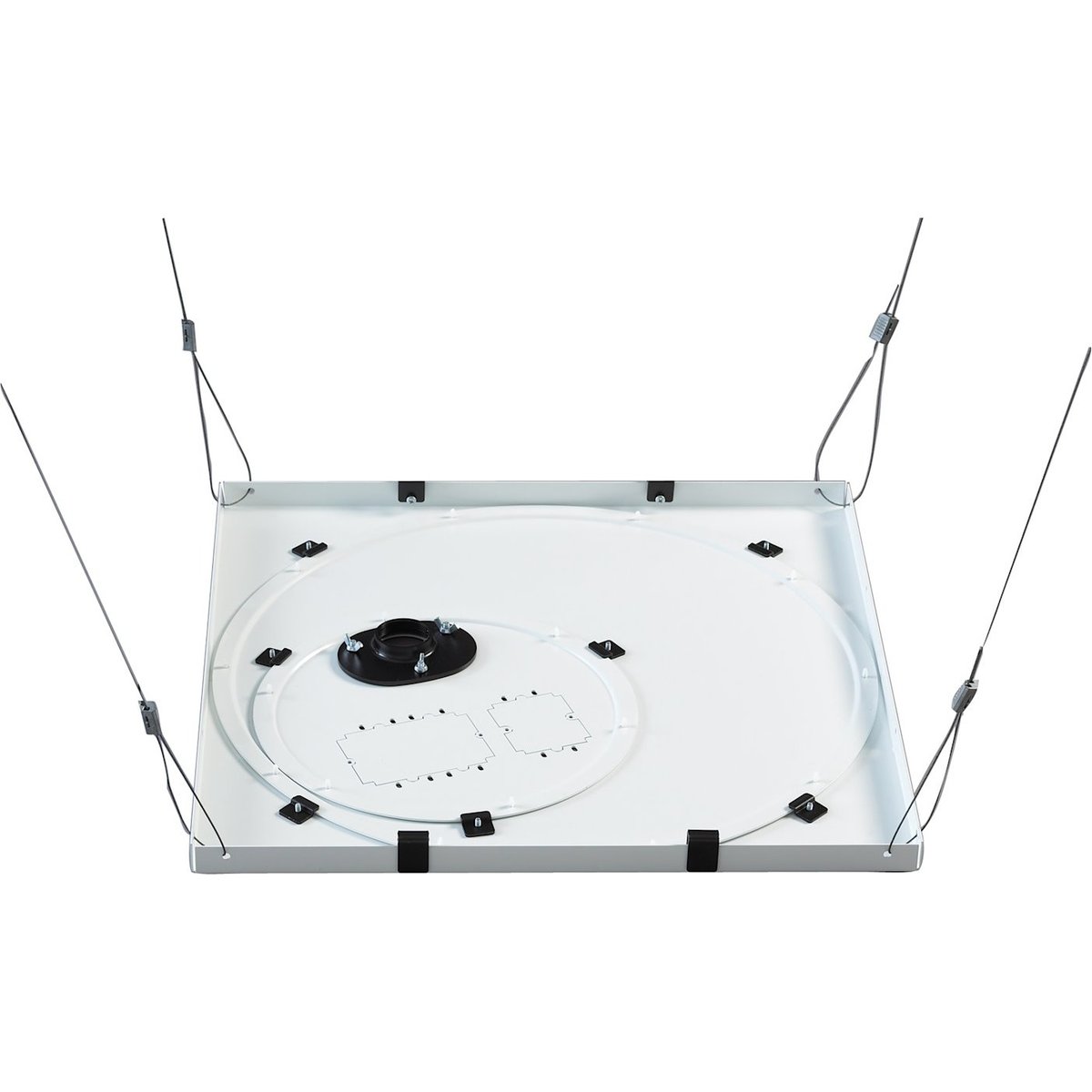

It replaces a 2 x 2 ft ceiling tile, clamps to the ceiling track, and transfers load to the structure through four turnbuckles and strand wire. The kit includes a 10 ft safety cable, 20 ft of strand wire, four turnbuckles, wood eye bolts, concrete anchors, two outlet knockouts and a chrome ring. Total capacity is 50 lb covering the column, the mount and the projector together. Fits 600 x 600 mm and 600 x 1200 mm tile outside the US. White, TAA compliant, UL Listed.
| Ceiling tile size | 2 x 2 ft (60.33 x 60.33 cm); also fits 600 x 600 and 600 x 1200 mm tile |
|---|---|
| Weight capacity | 50 lb (22.7 kg) total, including column, mount and projector |
| Installation type | Tile replacement, above-tile mounting |
| Ceiling plate type | Speed-Connect, with power outlet housing |
| Included | 10 ft safety cable, 20 ft strand wire, four turnbuckles, wood eye bolts, concrete anchors, chrome ring |
| Outlet provision | Two outlet knockouts |
| Overall dimensions | 1.1 x 23.6 x 23.6 in (29 x 600 x 600 mm) |
| Compliance | TAA compliant; UL Listed; white |
