Canon RC-IP1000 PTZ Controller

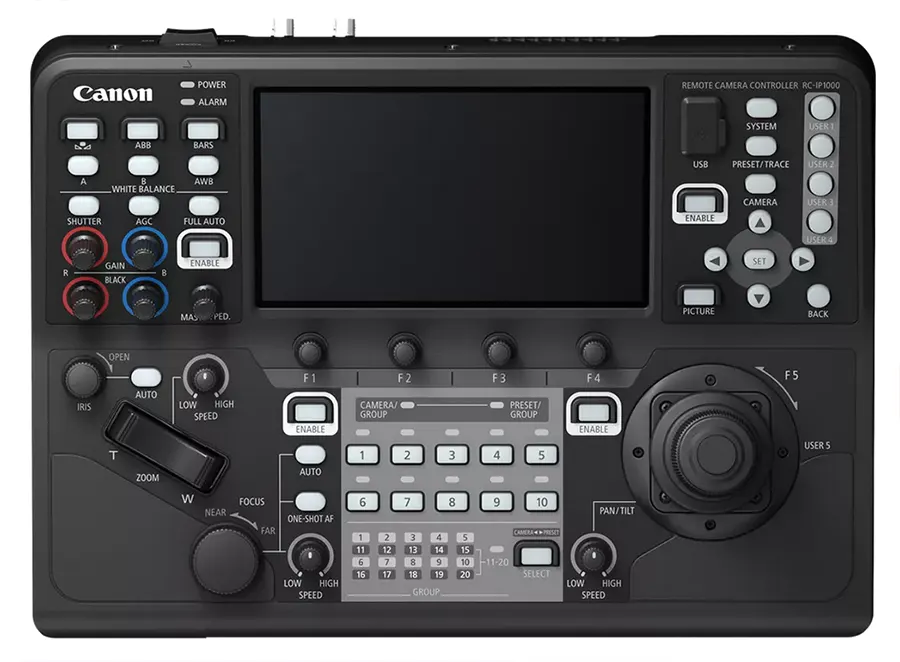

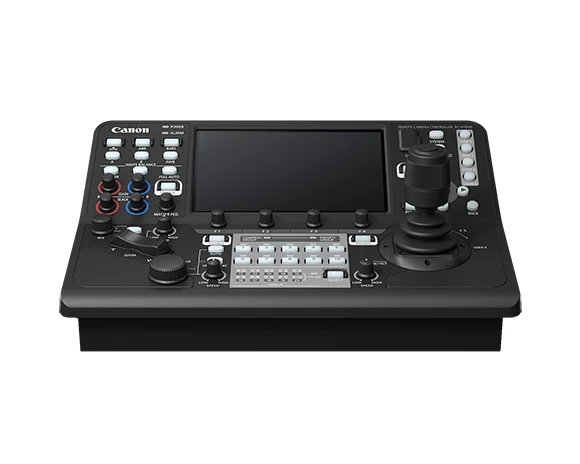

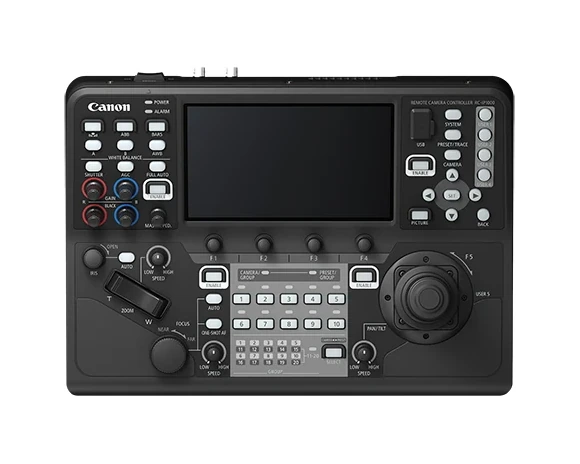

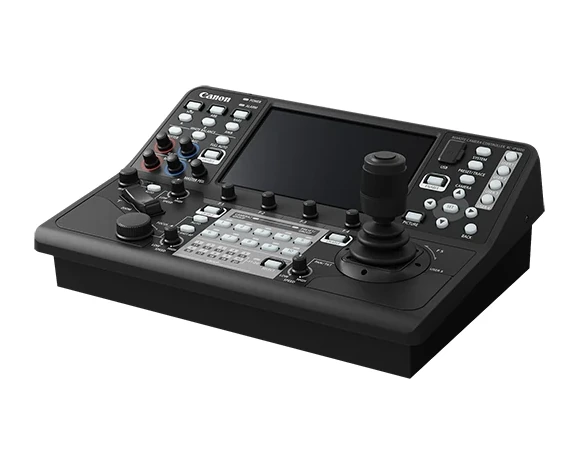

The RC-IP1000 is Canon's flagship PTZ controller, built for large multi-camera productions that need dense, fast control and live monitoring at the desk. An ergonomic twisting joystick sits under the palm for intuitive pan, tilt, and zoom, and the 7-inch touch panel can display up to nine camera feeds at once so an operator sees the whole scene without an external monitor wall. A dense panel of 42 buttons, 14 dials, and 66 LEDs is customizable so the shots and functions you use most are always a single press away.

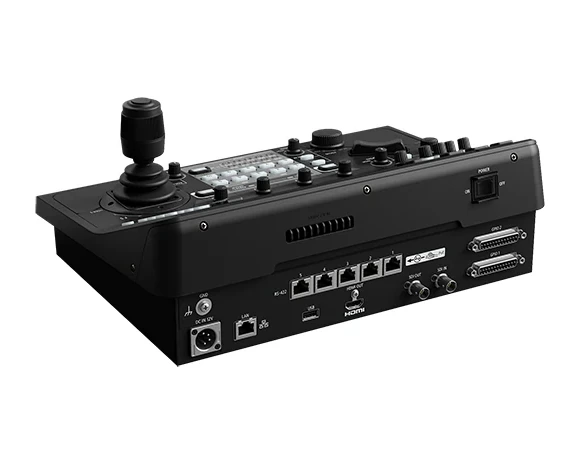

It monitors and controls up to 200 cameras, including up to five over serial, and its I/O is built for a real rack: HDMI out, 12G-SDI in and out, serial RJ45, LAN with PoE+, two USB ports, and two GPIO channels on D-Sub 25-pin. Power comes from a 12 VDC 4-pin XLR input or over PoE+, letting a single cable carry power, control, and video. Canon part number 6529C001.
