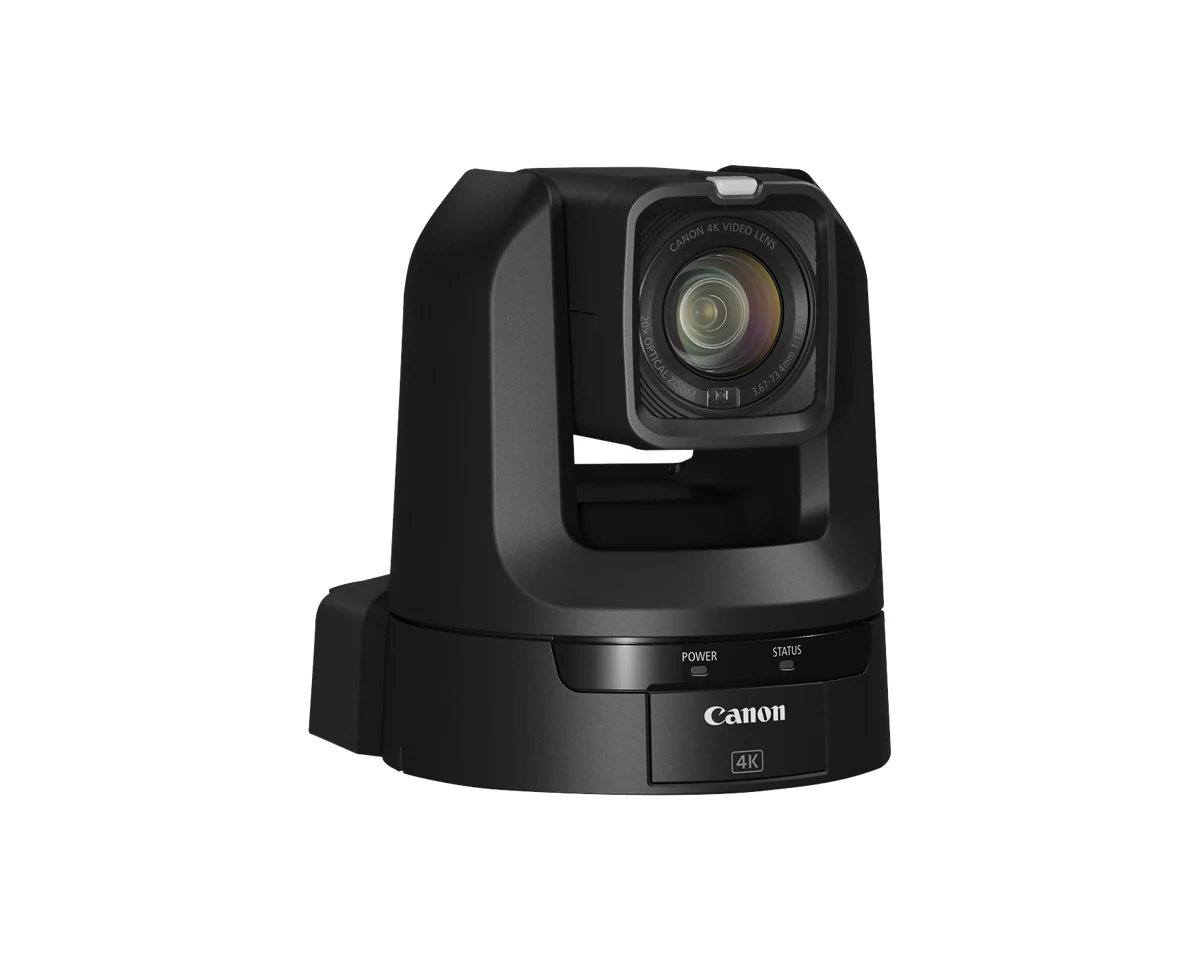

Canon CR-N300 PTZ Camera
The Canon CR-N300 is a 4K PTZ camera built around a 1/2.3-inch CMOS sensor and a 20x optical zoom with optical image stabilization, reaching from wide room coverage to tight close-ups on the same 29.3 to 601mm equivalent range. It outputs 4K UHD 30p in 4:2:2 10-bit for clean keys and detailed wide shots. This is the black finish.

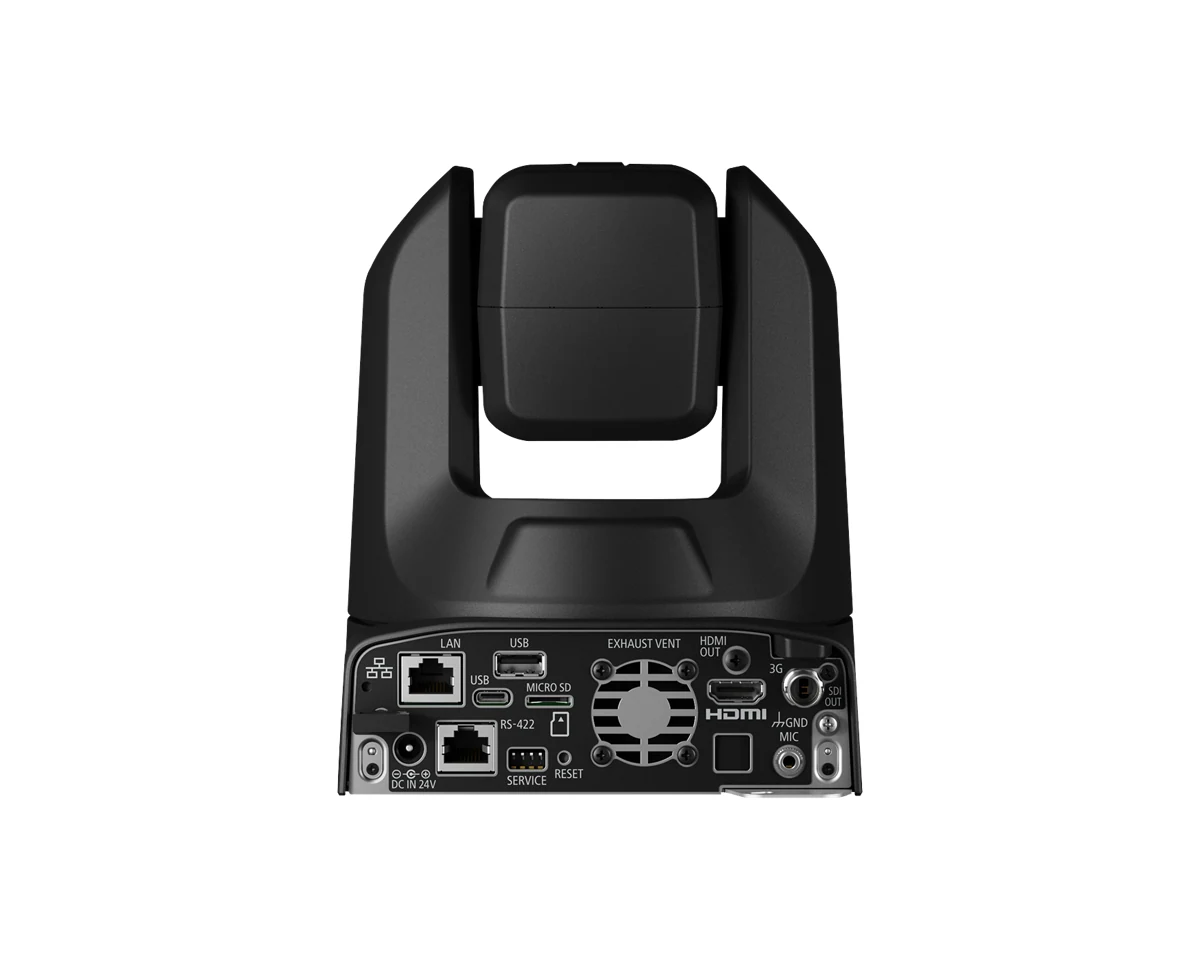

It adds a 3G-SDI output to the HDMI, USB, and IP connections, so it drops into both broadcast and streaming rigs, and carries NDI|HX2 and SRT over the network. Single-cable PoE+ supplies power, control, and video, and the camera answers to IP, serial, IR, and Wi-Fi control. Canon part number 5157C001.
| Sensor | 1/2.3-inch 4K CMOS |
|---|---|
| Optical Zoom | 20x (29.3-601mm equivalent) with image stabilization |
| Video | 4K UHD 30p, 4:2:2 10-bit |
| Outputs | 3G-SDI, HDMI, USB, and IP |
| Streaming | NDI|HX2 and SRT |
| Connectivity | Single-cable PoE+ for power, video, and control |
| Control | IP, serial, IR, and Wi-Fi |
| Canon Part Number | 5157C001 |
