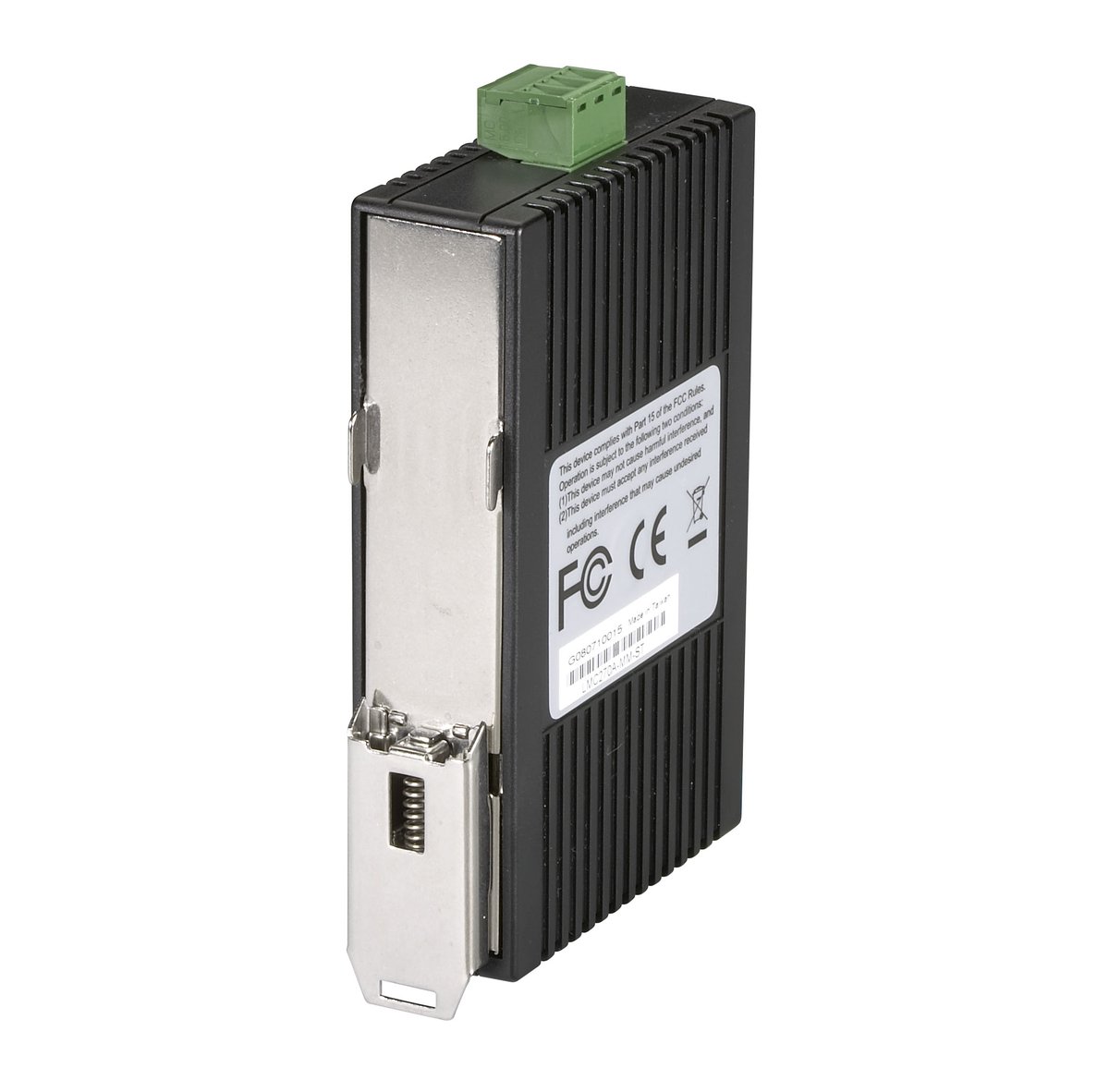

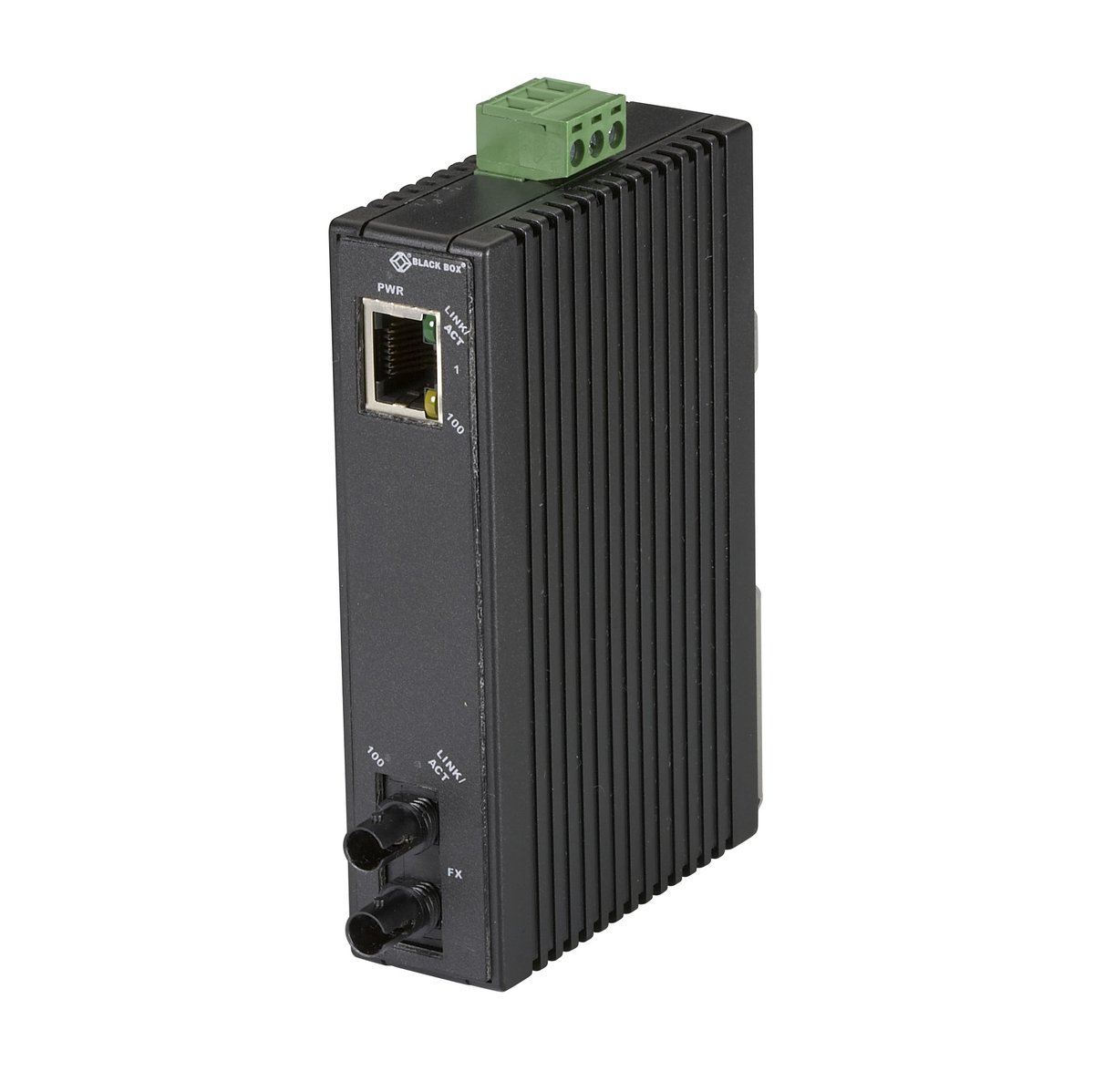

Black Box LMC270A-MM-ST Fast Ethernet (100-Mbps) Industrial Media Converter - 10/100-Mbps Copper to 100-Mbps Multimode Fiber, Hardened Temperature, 1300nm, 2km, ST

The LMC270A-MM-ST is the copper-to-fiber hop in a Black Box link: 10/100-Mbps Copper to 100-Mbps Multimode Fiber, Hardened Temperature, 1300nm, 2km, ST. Distance: 2 km. Connectors are (1) RJ45.

Power: Input: 12-48 VDC (terminal block). It measures 4.3-in. H x 1-in. W x 2.8-in. D (10.9 x 2.5 x 7.1-cm) and weighs 0.5-lb. (0.227-kg). Rated for 14 to +140 F (-10 to +60 C).

Distance2 km
Connectors(1) RJ45; (1) ST
MAC Addresses2K
Packet Buffer384 kb
Filtering/Forwarding RateEthernet: 14,880 pps; Fast Ethernet: 148,800 pps
Switching Processing TypeStore and forward with half-duplex backpressure and IEEE 802.3x full-duplex flow control
EnclosurePlastic case, IP30 rated
PowerInput: 12-48 VDC (terminal block); Output: per optional DC or AC power supply ordered
