Avantone Pro MixCube Active Mini Reference Monitor

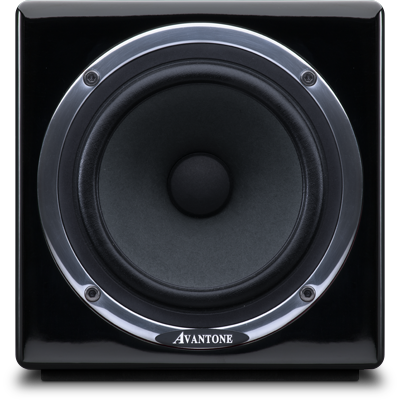

The MixCube Active is a self-powered 6.5 in cube built around one proprietary 5.25 in driver on a cast aluminum frame with a paper cone, magnetically shielded, in a sealed 18 mm MDF enclosure stuffed with Dacron. There is no tweeter and no port, and that is the point: the accessible range is 200 Hz to 10 kHz, so everything you hear is the midrange where vocals, snare, and guitars fight each other. Engineers keep a cube on the desk next to a full-range pair to hear what survives when the bottom and the top are gone.

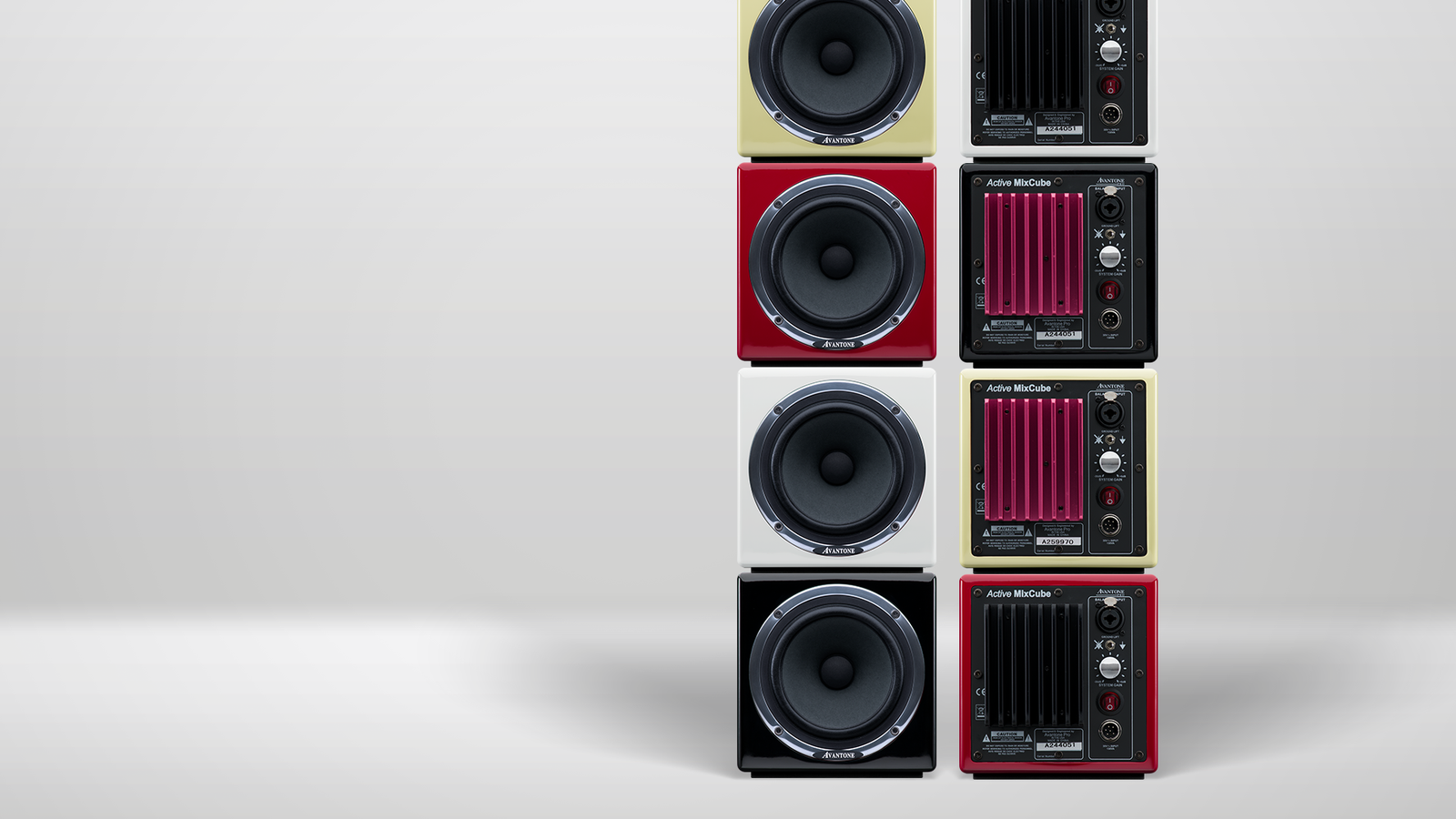

A Class A/B amplifier inside each cabinet delivers 60 watts RMS at 0.005 percent THD, reaching 104 dB SPL at one meter, and the nominal load is 8 ohms. Input is a single combo jack taking XLR at +4 dBu balanced or TRS at -10 unbalanced, so it drops straight onto an interface output without a separate power amp. Each cabinet weighs 7.13 lb and measures 6.5 by 6.5 by 6.5 in. Avantone sells them singly and in pairs, in creme, black, and red.
| System Type | Active (self-powered) shielded full-range |
|---|---|
| Driver | Proprietary 5.25 in cast aluminum frame, paper cone, shielded |
| Accessible Range | 200 Hz - 10 kHz |
| Amplifier | Class A/B, 60 watts RMS at 0.005% THD (1 kHz) |
| Max SPL | 104 dB at 1 meter, 1% THD (pink noise) |
| Input | XLR and TRS combo jack, +4 balanced / -10 unbalanced |
| Nominal Impedance | 8 ohms |
| Cabinet | Sealed, 18 mm MDF, Dacron acoustical stuffing |
| Dimensions | 6.5 in x 6.5 in x 6.5 in |
| Weight | 7.13 lb per monitor |
