AtlasIED WPD-MIX42RT Wall Plate Input Select Switch, Volume Control 10k Pot with System Indicator

The AtlasIED WPD-MIX42RT is a wall plate input select switch, volume control 10k pot with system indicator. The WPD-MIX42RT features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active.

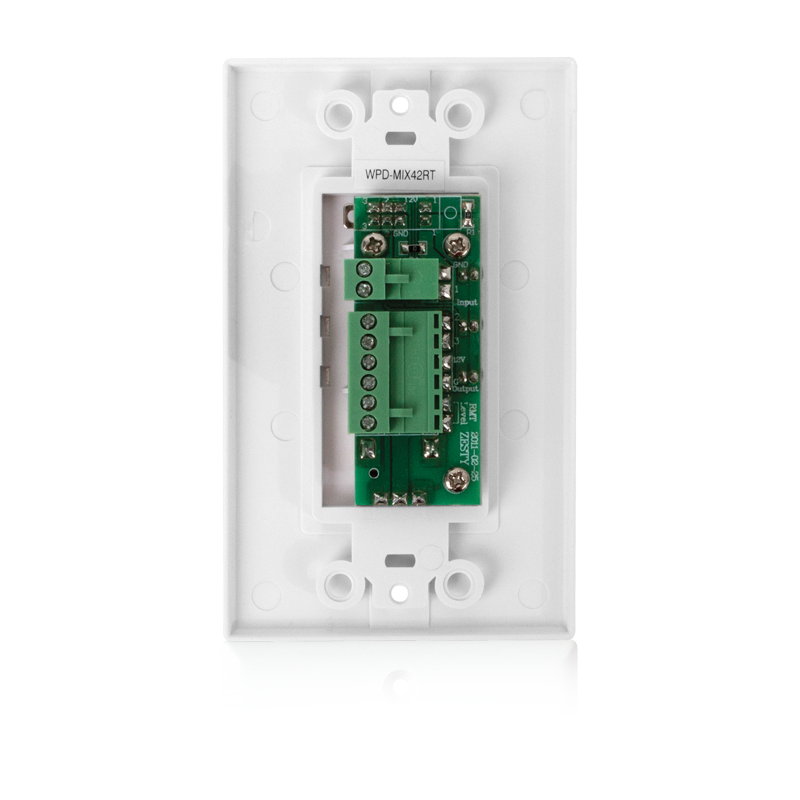

The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. AtlasIED lists input select slide switch; level control via on board 10kΩ potentiometer; system status indicator (red); 8-conductor interface connection. It measures 4.5" (114mm) high, 2.5" (63mm) wide, and 0.24" (6.4mm) deep. It carries a manufacturer warranty of 60 months from date of purchase.
