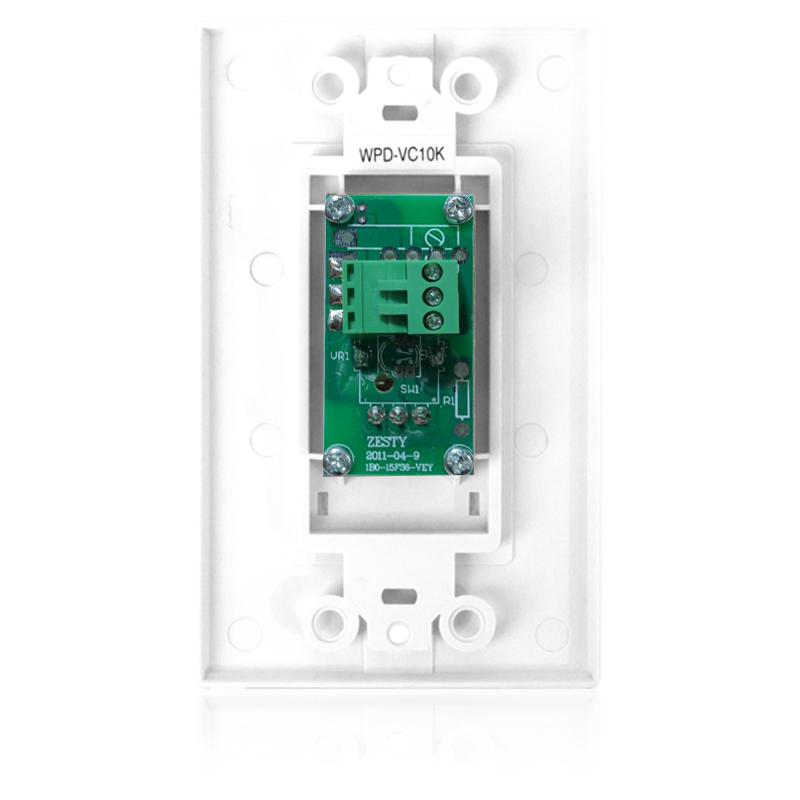

AtlasIED WPD-VC10K Wall Plate 10kΩ Level Control

The AtlasIED WPD-VC10K is a wall plate 10kΩ level control. The AtlasIED WPD-VC10K is a decor style wall plate featuring an adjustable 10kΩ potentiometer designed to remotely control the level of connected AtlasIED products like amplifiers. The unit is constructed of durable ABS material and a removable label guard for easy and clean designation of key switch function.

The unit can function with VCA 2 or 3 conductor systems and uses a 2 or 3 conductor interface connection designed to work with the included Phoenix style connector. This unit can function in up to 200 feet from the controlled unit using 22-gauge wire. AtlasIED lists white decor style plate, ABS material; fits a single gang electrical outlet; 2 or 3 conductor interface connection; removable 3 position Phoenix style connector, 5.08mm pin spacing. It measures 4.5" (114mm) high, 2.5" (63mm) wide, and 0.24" (6.4mm) deep. It carries a manufacturer warranty of 60 months from date of purchase.
