AtlasIED WPD-RISRL Wall Plate Input Select Switch with Volume Control 10k Pot and Input Indicator Use With AAPHD

The AtlasIED WPD-RISRL is a wall plate input select switch with volume control 10k pot and input indicator use with AAPHD amplifiers. The WPD-RISRL is a decor style wall plate that is designed for use with the AA50PHD, AA100PHD, AA200PHD, or AA400PHD mixer amplifiers to use the remote input selection (RIS) feature. The WPD-RISRL features an audio source slide selector as well as a source volume control.

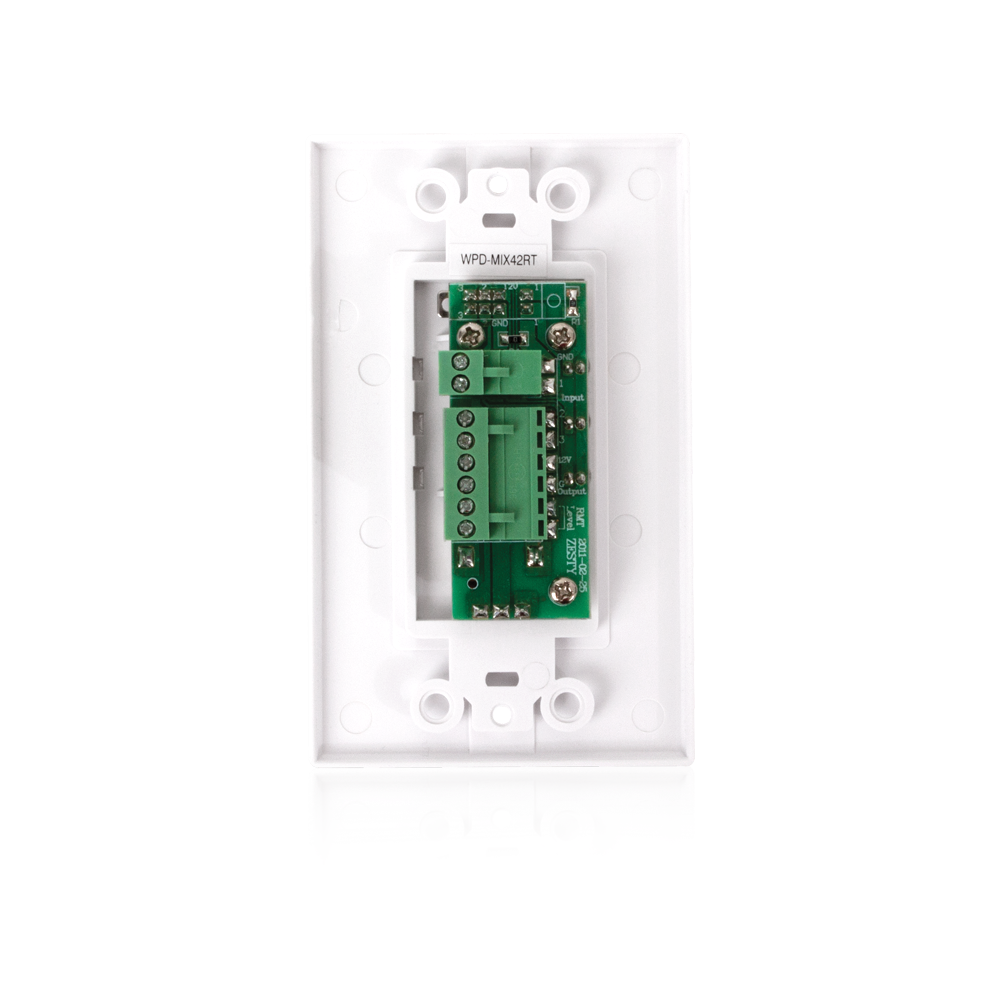

The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. AtlasIED lists designed for remote input selection and volume adjustment used with select AAPHD amplifiers; input select slide switch; level control via on board 10kΩ potentiometer; system status indicator (red). It measures 4.5" (114mm) high, 2.5" (63mm) wide, and 0.24" (6.4mm) deep. It carries a manufacturer warranty of 60 months from date of purchase.
