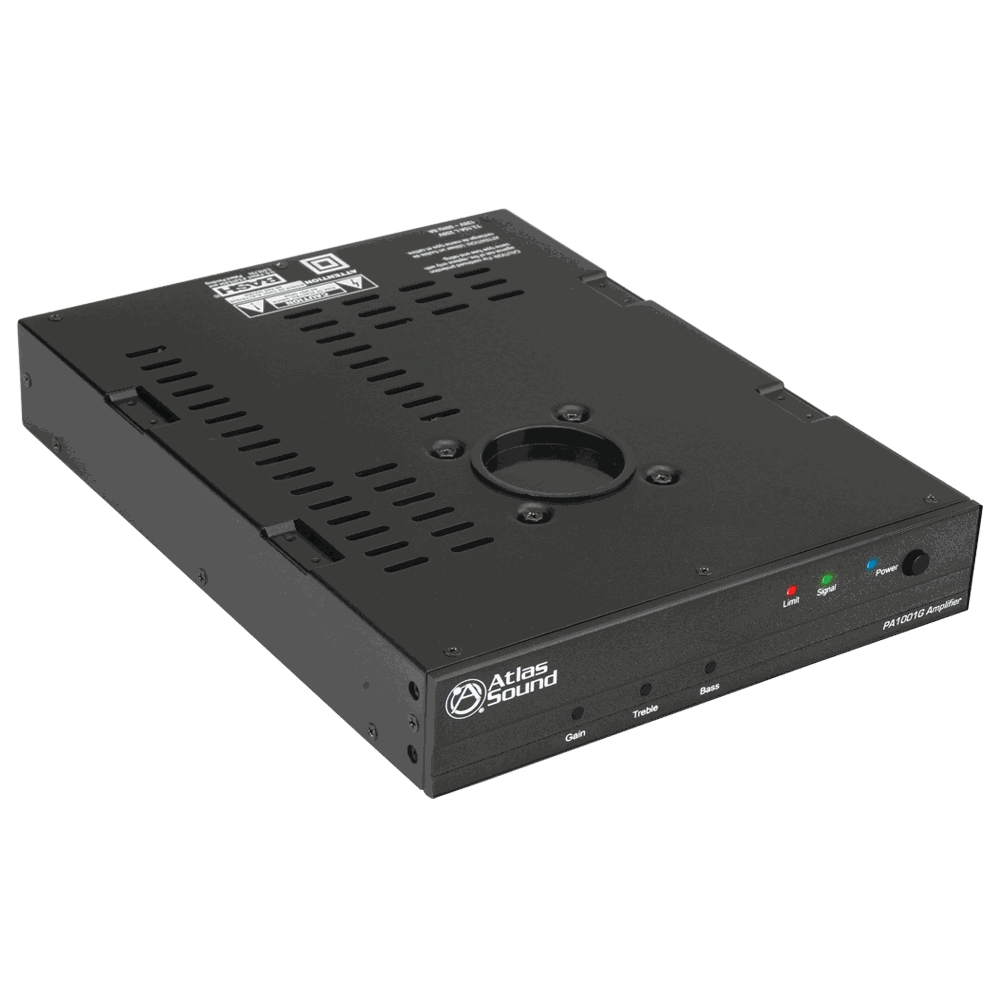

Name: AtlasIED PA1001G Single Channel, 100-Watt Pole Mount Amplifier
Brand: AtlasSound
SKU: PA1001G
Price: 611.99 USD
Availability: InStock

The AtlasIED PA1001G is a single channel, 100-watt pole mount amplifier. This amplifier features an ultra compact design requiring only 1RU in height and 1/2 rack wide in space. The 100W into a 70V or 100V distributed system gives the power to meet most amplifier demands. Published frequency response is 30Hz-20kHz No High Pass Filter +/-3dB 100Hz-20kHz High Pass Engaged +/-3dB.

The PA1001G power supply supports 120-240VAC power for global use and operation. The patent pending through hole chassis design makes it convenient to use with ceiling mounted video projectors. AtlasIED lists 100W x 1, 70V/100V; ultra efficient amplification technology; patent pending, through chassis mounting system for use with pole mounted projector systems; multi voltage power supply allows for worldwide operation. It measures 1.75" (44.5mm) high, 8.5" (215.9mm) wide, and 13.5" (342.9mm) deep. It carries a manufacturer warranty of 36 months from date of purchase.

Part Number	PA1001G
Output Power	100W @ 70V into 50Ω, 100W @ 100V into 100Ω
Frequency Response	30Hz-20kHz No High Pass Filter +/-3dB 100Hz-20kHz High Pass Engaged +/-3dB
Power Consumption	10 Watts in Sleep Mode16 Watts in Active Idle Mode165 Watts at Full Load 70V
Height	1.75" (44.5mm)
Width	8.5" (215.9mm)
Depth	13.5" (342.9mm)
Weight	4.9 lbs. (2.4 kg)
Optional Rack Mount Kit	PA702-RMK
Voltage Compatibility	Universal
Type	Power Amplifier, 1 Channel
Amplifier Topology	Class A/B
Power @ 4Ω, 8Ω, 70.7V, 100V	100 W - 70.7 V and 100 V, 4 ohm and 8 ohm: N/A
Input Type	Balanced Line RCA
Input Connector Type	3 Pin Euroblock, RCA (summed to mono)
Input impedance	20 kΩ (Balanced), 10 kΩ (Unbalanced)
Input Sensitivity	10 mV - 320 mV RCA, 320 mV - Balanced
Warranty Period	36 months from date of purchase
