AtlasIED TSD-DA13 1 x 3 Distribution Amplifier

The AtlasIED TSD-DA13 is a 1 x 3 distribution amplifier. The TSD-DA13 1x3 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. These features combined with the 3 mic / line level outputs allow for multiple configurations.Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device. Published frequency response is 20Hz - 20kHz.

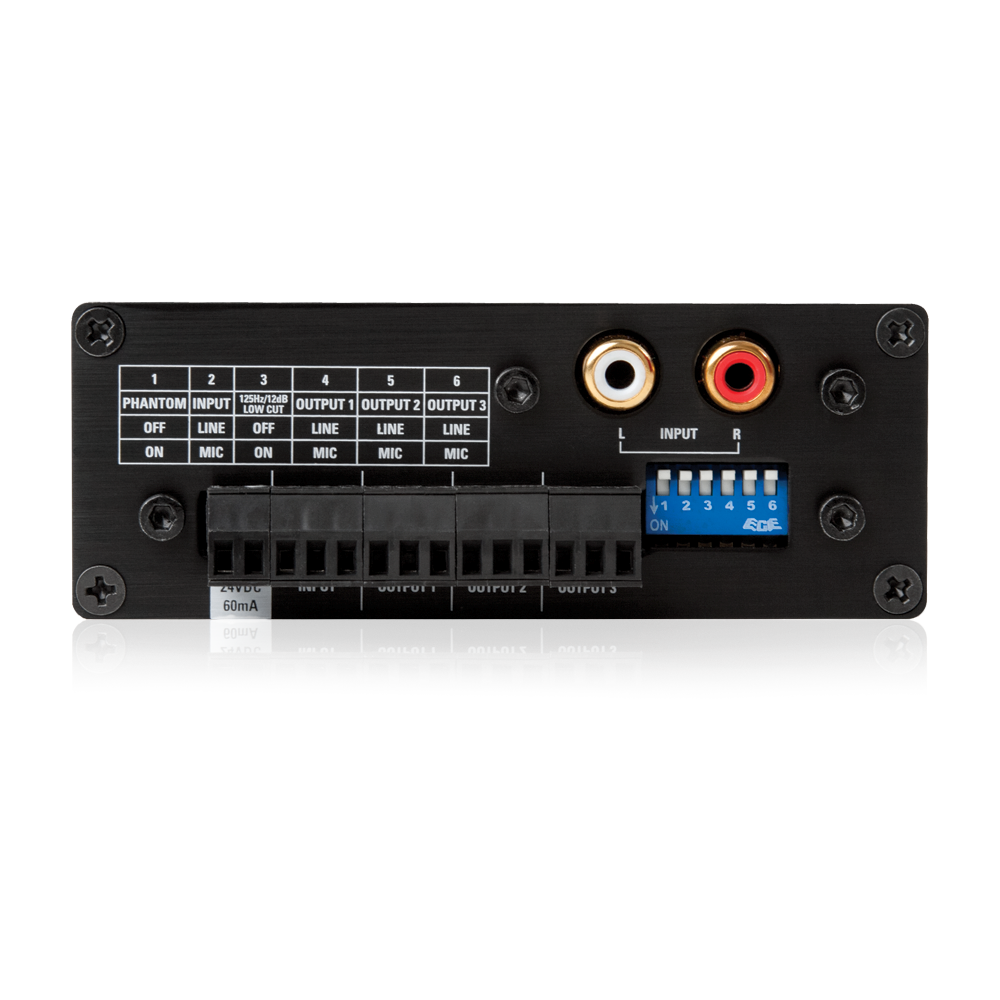

All I/O (except the summing RCA inputs) is via Phoenix style connectors for installation convenience. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. AtlasIED lists one (1) balanced mic/line input with switchable 24V phantom power; high gain (50dB), low noise mic preamp; summed dual RCA input; three (3) isolated balanced mic/line outputs. It measures 1.5" high, 4" wide, and 2.5" deep. It carries a manufacturer warranty of 36 months from date of purchase.
