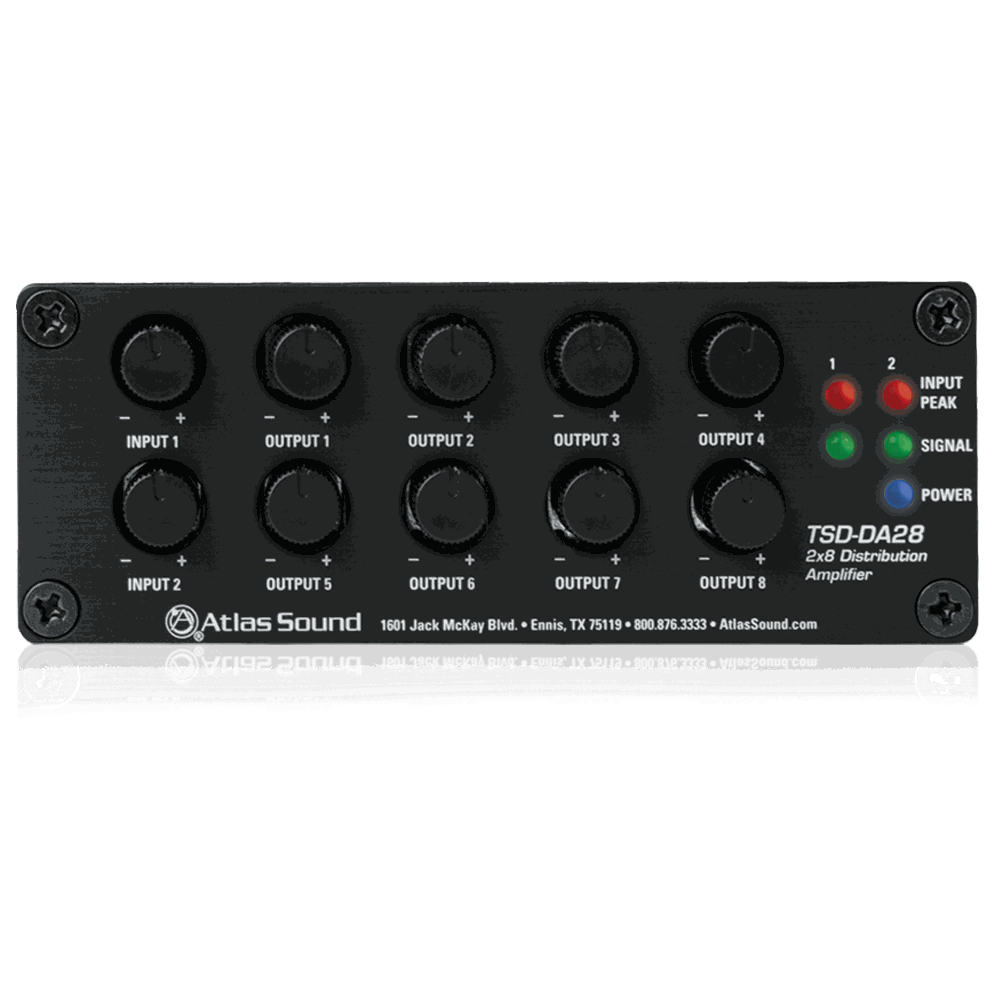

AtlasIED TSD-DA28 2 x 8 Distribution Amplifier

The AtlasIED TSD-DA28 is a 2 x 8 distribution amplifier. The TSD-DA28 2x8 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows two independent balanced line level source inputs to be distributed to eight isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities. Published frequency response is 20Hz - 20kHz.

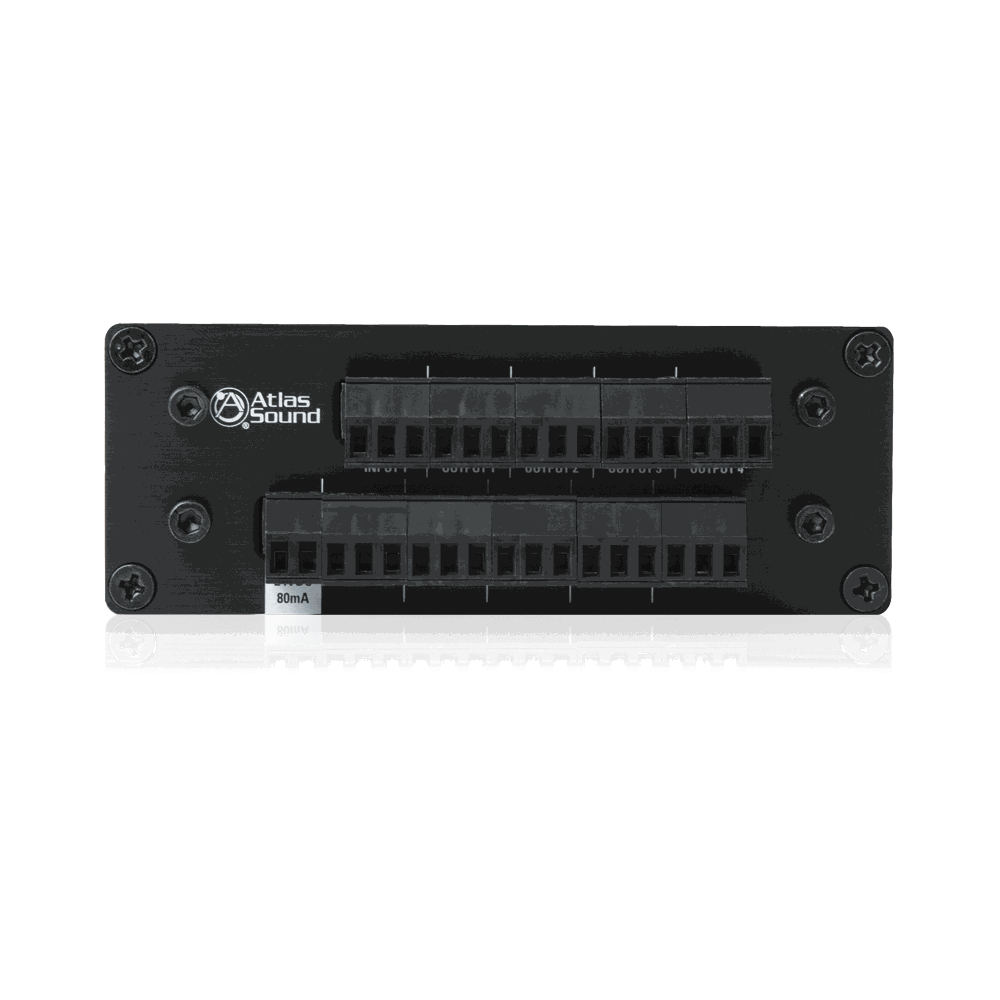

Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device. All I/O is via Phoenix style connectors for installation convenience and inputs may be easily paralleled for 1 in / 8 out configuration. AtlasIED lists two (2) balanced line inputs; eight (8) isolated balanced line outputs; signal & peak indicator LED's for each channel; high gain output for driving long balanced lines. It measures 1.5" high, 4" wide, and 2.5" deep. It carries a manufacturer warranty of 36 months from date of purchase.
