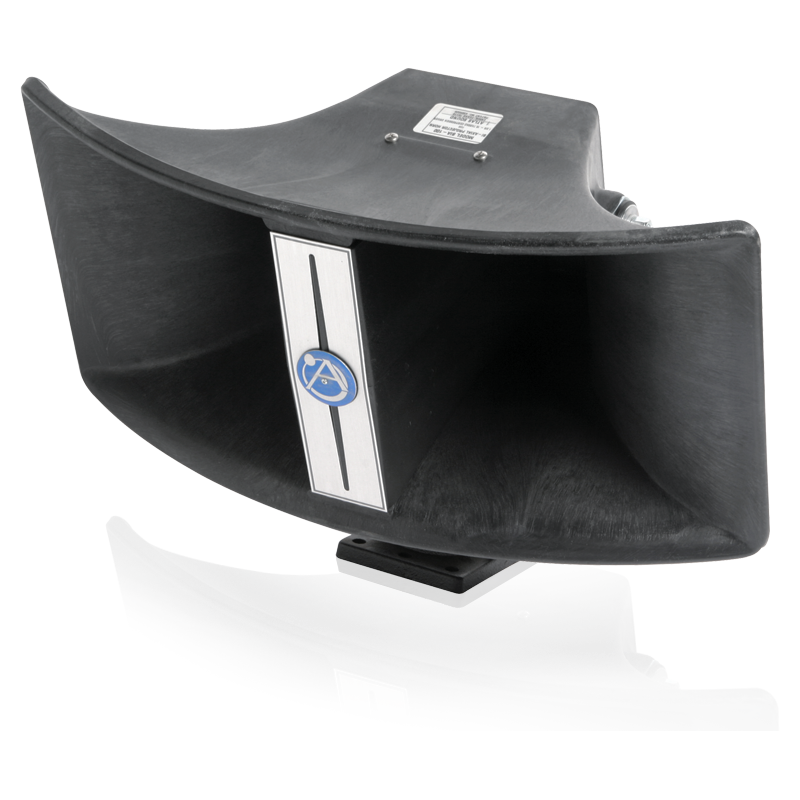

AtlasIED BIA-100 Bi-Axial Horn Speaker with Twin Reflex Air Column

The AtlasIED BIA-100 is a bi-axial horn speaker with twin reflex air column. Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. Coverage is 130° x 60°.

BIA-100 is designed for use with AtlasIED PD Series compression drivers and models having 13/8" -18 male threads and 0.707" dia. Throat openings. AtlasIED lists accepts all Atlas sound and 1 3/8" - 18 thread compression drivers with throat openings of 0.7" dia; high-efficiency bi-axial horn provides 130° x 60° wide-angle sound coverage; nominal frequency response of 350-8,000 hz for high-intelligibility voice, signaling and full-range music in indoor/outdoor applications; patented 180° gimbal-mount for installation flexibility. It measures 10 1/4" high, 21" wide, and 19 1/4" deep. It ships at 16.00 lbs and carries a manufacturer warranty of 60 months from date of purchase.
