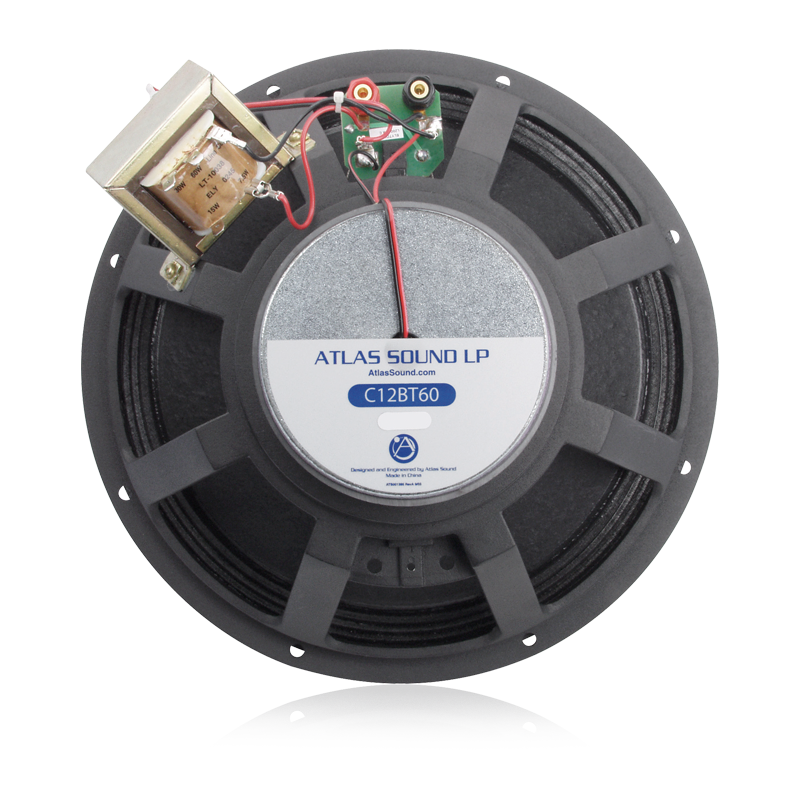

AtlasIED C12BT60 12" 2-Way Coaxial Speaker with 60-Watt 70V/100V Transformer
The AtlasIED C12BT60 is a 12" 2-way coaxial speaker with 60-watt 70V/100V transformer. AtlasIED Model C12BT60 is a professional quality coaxial speaker for use where full range music and voice reproduction are desired. Model C12BT60 combines a 12" diameter low frequency reproducer and a 1" diameter high frequency, post-mounted reproducer. It runs a full range coaxial driver over 33Hz - 21kHz.
The unit features a curvelinear, treated paper cone for lower harmonic distortion and a built-in crossover network for determining proper frequency selection between the two reproducers. The competitively priced unit assures smooth frequency response in a high power handling mode. AtlasIED lists coaxial loudspeaker with 12" diameter low frequency and 1" diameter high frequency reproducer; includes factory-installed line-matching transformer; mounts a wide selection of Atlas sound Q Series enclosures and standard baffles; professional quality sound reproduction at a competitive price. It measures 4 3/16" deep. It ships at 5.00 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | C12BT60 |
|---|---|
| Frequency Response | 33Hz - 21kHz |
| Sensitivity | 95dB (at 1W/1m) |
| Power Taps | 7.5, 15, 30, 60 |
| Speaker Type | Full Range Coaxial |
| Dispersion | 90° |
| Depth | 4 3/16" (10.63625 cm) |
| Shipping Weight | 5.00 lbs (2.27 kgs) |
| Warranty Period | 60 months from date of purchase |
